CTI Cryogenics 8143215 G002 Helium Compressor Supply Line 350 PSIG 20074-002

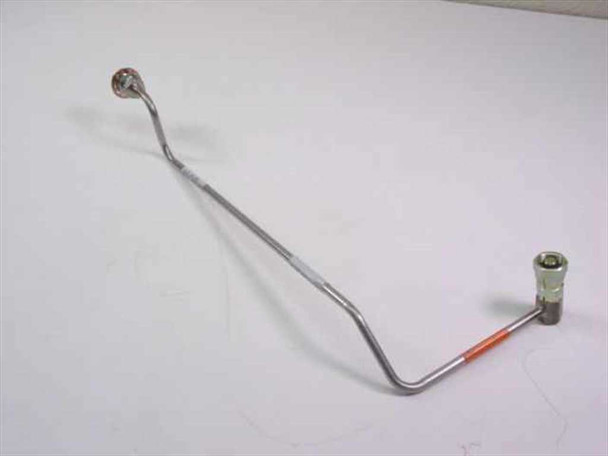

The CTI Cryogenics 8143215 G002 is a rigid helium compressor supply line used to carry high-pressure helium gas between a CTI cryogenic compressor and a cryopump or cold head. The line is constructed of bent stainless-steel tubing and is rated for 350 PSIG. Each end terminates in an Aeroquip quick-disconnect coupling half — one female, one male — for secure, leak-free connection to the compressor and cryopump circuit.
Specifications & What's Included
- Manufacturer Part Number: 8143215 G002
- Secondary Part Number: 20074-002
- Pressure Rating: 350 PSIG

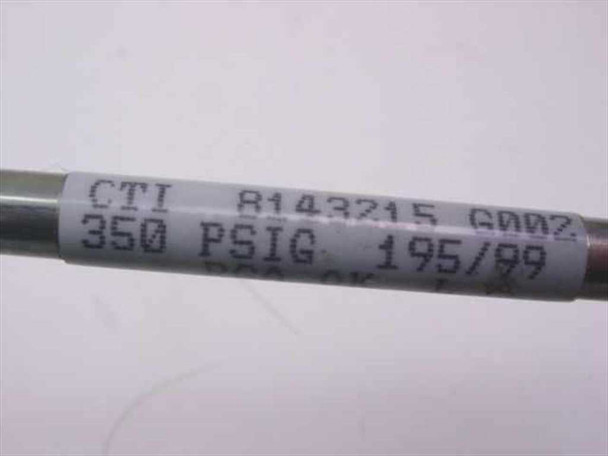

- Date Code: 195/99
- Construction: Bent rigid stainless-steel tubing

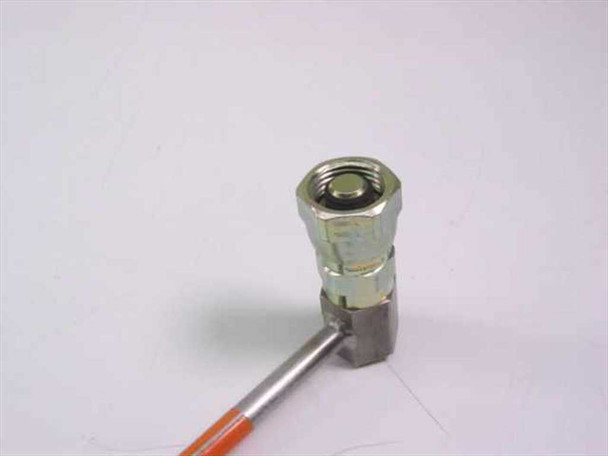

- Female End Coupling: Aeroquip 5400-S5-4 Coupling Half – Female
- Inlet Thread: 1/2"-20
- Outlet Thread: 5/8"-18 UNF

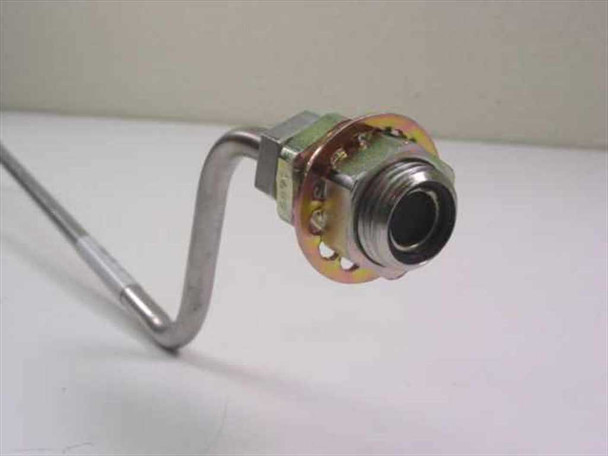

- Male End Coupling: Aeroquip 5400-S2-4 Coupling Half – Male
- Inlet Thread: 1/2"-20
- Outlet Thread: 5/8"-18 UNF
- Coupling Hex Nut Size: 0.75"
- Includes: Supply line with Aeroquip couplings at both ends
Applications
CTI Cryogenics (now part of Brooks Automation / Agilent Technologies) helium compressor supply lines like this one are used in closed-cycle cryogenic refrigeration systems. They carry high-pressure helium gas from the compressor to the cold head or cryopump, which is used to achieve the deep vacuum conditions required in semiconductor process chambers, surface analysis instruments, ion implanters, and other high-vacuum systems. The Aeroquip-style quick-disconnect couplings are standard on CTI 8200, 9600, and similar compressor series and allow the helium circuit to be connected and disconnected without venting the entire system. These supply and return lines are precision-bent to route through specific compressor enclosures and are not generally interchangeable across unrelated systems — always verify the part number matches your compressor model before ordering.
This CTI Cryogenics 8143215 G002 helium compressor supply line has been inspected and is in good used condition. It was pulled from a working cryogenic system where it was actively in service. The tube and fittings appear clean with no visible damage; the Aeroquip couplings at both ends are intact. Please note we may have multiple units in stock — the unit you receive may differ slightly from the one photographed but will be functionally equivalent. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
CTI-Cryogenics |
Model: |
8143215 G002 |
MPN: |
8143215 G002 |
Secondary Model: |
20074-002 |
SKU: |
27663 |
Type: |
Helium Compressor Supply Line |
Pressure Rating: |
350 PSIG |
Date Code: |
195/99 |
Female Coupling: |
Aeroquip 5400-S5-4 — Inlet: 1/2"-20, Outlet: 5/8"-18UNF |
Male Coupling: |
Aeroquip 5400-S2-4 — Inlet: 1/2"-20, Outlet: 5/8"-18UNF |
Coupling Hex Nut Size: |
0.75" |
Inlet Thread (Female End): |
1/2"-20 |
Outlet Thread (Female End): |
5/8"-18 UNF |
Inlet Thread (Male End): |
1/2"-20 |
Outlet Thread (Male End): |
5/8"-18 UNF |
Compatible With: |
CTI Cryogenics helium compressor systems |
Seller Notes: |
Supply line only — no additional hardware included. |
Condition Notes: |
CTI Cryogenics 8143215 G002 helium compressor supply line inspected and in good used condition. Pulled from a working cryogenic system; Aeroquip couplings intact with no visible damage. Unit shipped may vary slightly from unit photographed. |
