CR Magnetics Inc.

CR Magnetics CR4120-5 True RMS AC Current Transducer 0-5A 4-20mA DIN Rail

(No reviews yet) Write a Review
SKU:
49520
MPN:
CR4120-5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

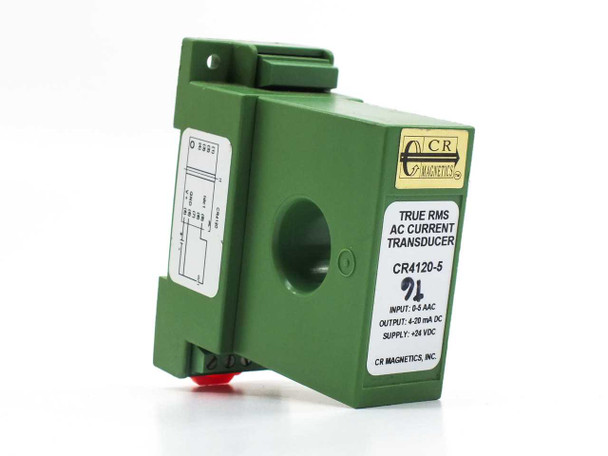

  • CR Magnetics CR4120-5 True RMS AC Current Transducer – angled front-right view showing label with model number and specifications

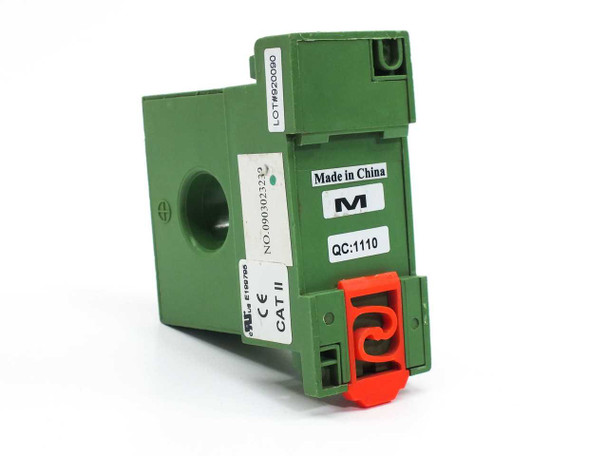

  • CR Magnetics CR4120-5 Current Transducer – left side view showing CE CAT II rating label, lot number, serial number, and Made in China marking

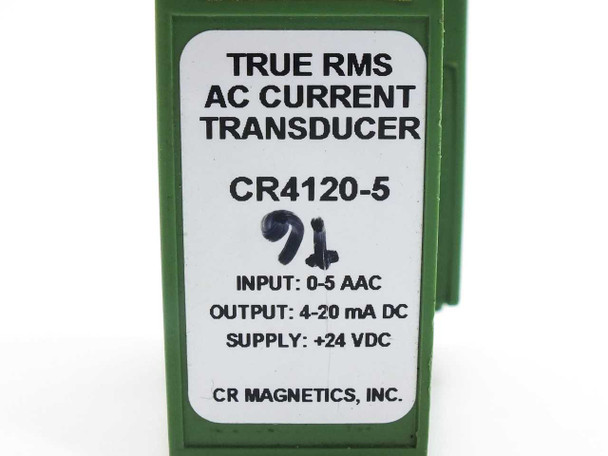

  • CR Magnetics CR4120-5 – close-up of front label showing True RMS AC Current Transducer, input 0-5A, output 4-20mA DC, supply +24VDC
  • CR Magnetics CR4120-5 – rear view showing DIN rail mount base and wiring diagram label with terminal connections
$120.00
Was: $250.00
Current Stock: 27

Sold Out

Description

CR Magnetics CR4120-5 True RMS AC Current Transducer 0-5A 4-20mA DIN Rail

This is a True RMS AC current transducer that converts AC current signals (0-5A input range) to a 4-20 mA DC output signal. It mounts directly to DIN rail and operates on +24 VDC supply voltage.

Specifications & What's Included

  • Model: CR4120-5
  • Input Range: 0-5A AC
  • Output Signal: 4-20 mA DC
  • Supply Voltage: +24 VDC
  • Mounting: DIN Rail
  • Conductor Opening: Through-hole / split core
  • Certifications: CE, CAT II
  • Unit only; no accessories included

Applications

Current transducers of this type are used in industrial control systems, power monitoring equipment, and telecom installations to measure and transmit AC current data to PLCs, data loggers, and monitoring devices. The 4-20 mA output is a standard industrial signal widely compatible with SCADA systems, panel meters, and analog input modules. These units are commonly deployed in electrical distribution panels and machinery monitoring applications.

Condition: Used
This CR Magnetics CR4120-5 True RMS AC Current Transducer has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The green housing is clean and intact, with no cracks or significant damage visible. The label is fully legible and the DIN rail clip shows normal wear consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CR Magnetics
Model:
CR4120-5
MPN:
CR4120-5
Type:
True RMS AC Current Transducer
SKU:
49520
Input Range:
0-5A AC
Output Signal:
4-20 mA DC
Supply Voltage:
+24 VDC
Measurement Type:
True RMS AC Current
Mounting Type:
DIN Rail
Certifications:
CE, CAT II
Country/Region of Manufacture:
China
Form Factor:
DIN Rail Module
Conductor Opening:
Through-hole / split core
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no additional accessories included.
Condition Notes:
CR Magnetics CR4120-5 True RMS AC Current Transducer, used, pulled from a working environment. Inspected and in good condition. Housing intact, label legible. Please contact us with any questions.
View AllClose
