Compaq

Compaq PS2014 270656-001 200W ATX Desktop Power Supply PS-5201-4C

(No reviews yet) Write a Review
SKU:
31675
MPN:
270656-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

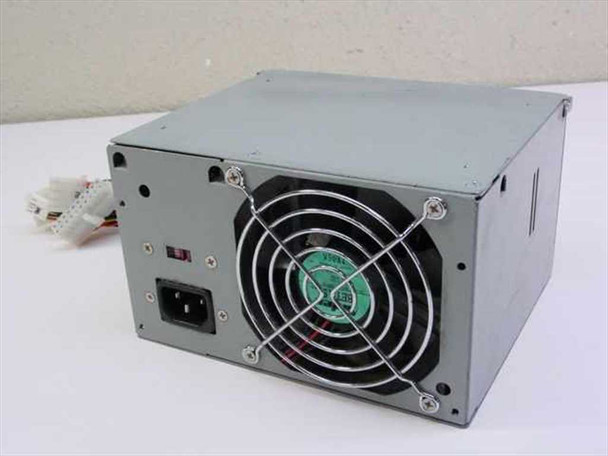

  • Compaq PS2014 270656-001 200W ATX power supply – rear view showing IEC AC inlet, power switch, and 80mm cooling fan
  • Compaq PS2014 270656-001 200W ATX power supply – side and top view showing vented enclosure and output wire harness
  • Compaq PS2014 label showing Part No. 270656-001, Series PS2014, model PS-5201-4C, input/output specifications, and certifications
  • Compaq PS2014 ATX power supply output connector bundle showing 20-pin ATX main connector, Molex peripheral leads, and auxiliary connectors
$70.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Compaq PS2014 270656-001 200W ATX Desktop Power Supply PS-5201-4C

200W ATX power supply for Compaq desktop systems. Supplies regulated DC power to motherboard and peripherals via multiple output rails and connector types.

Specifications & What's Included

  • Model: PS2014 (PS-5201-4C); MPN: 270656-001
  • Output: 200W; Combined max: 130W
  • Rails: +5V, +3.3V, +12V, -5V, -12V, +5VSB
  • Input: 100–120V / 200–240V AC, 50–60Hz
  • Connectors: ATX 20-pin, Molex 4-pin, floppy auxiliary
  • Certifications: UL, cUL (E132068), TÜV (R9753312)
  • Includes attached ATX connector harness and Molex leads

Applications

Designed for Compaq Deskpro and Presario desktop systems from the late 1990s and early 2000s. Fits standard ATX form factor chassis. Commonly used in business-class desktop replacements and system repairs during that period.

Condition: Used
This Compaq PS2014 200W ATX Desktop Power Supply (Part No. 270656-001) has been tested at our facility and is in good working order. The unit is in typical used condition — the grey steel enclosure shows light surface scuffs and minor corner wear consistent with prior desktop deployment. The IEC AC inlet, cooling fan, and output connector harness all appear intact and undamaged. The full ATX connector bundle is present, including the 20-pin main connector and Molex peripheral leads. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
PS2014
MPN:
270656-001
Secondary Model:
PS-5201-4C
Part Number:
270646-001 (Replace With); Spare No. 270656-001
SKU:
31675
Condition:
Used – Inspected and Tested
Seller Notes:
Includes attached ATX connector harness and Molex power leads.
Form Factor:
ATX
Power Output:
200W
Power Requirements:
100–120V / 200–240V AC, 50–60Hz
Output Voltages:
+5V, +3.3V, +12V, -5V, -12V, +5VSB
Combined Power:
130W max combined
Connector Type:
ATX 20-pin, Molex 4-pin peripheral, floppy auxiliary
Compatible With:
Compaq Deskpro, Presario, and compatible ATX desktop systems
Country of Manufacture:
China
Certifications:
UL, cUL (E132068), TÜV (R9753312)
Series:
PS2014
Condition Notes:
This Compaq PS2014 200W ATX Desktop Power Supply (Part No. 270656-001) has been tested at our facility and is in good working order. The unit is in typical used condition — the grey steel enclosure shows light surface scuffs and minor corner wear
View AllClose

Related Products

Related Products

Compaq PS-5201-4C 200W ATX power supply – three-quarter front view showing fan, AC inlet, and power switch Compaq 270656-001 PS2014 ATX power supply – side and rear view showing ventilation grille and output harness
Add to Cart
Quick view

Compaq 270656-001 PS-5201-4C 200W ATX Power Supply Deskpro 4000 PS2014 135W

Compaq

$74.00
Was: $135.00
Compaq 270656-001 PS-5201-4C 200W ATX Power Supply Deskpro 4000 PS2014 135W ATX form factor power supply for Compaq Deskpro desktop systems. Converts AC input to regulated DC output across multiple...
11678
SKU:
11678
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Compaq
Model:
PS2014
Secondary Model:
PS-5201-4C
MPN:
270656-001
SKU:
11678
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included.
Form Factor:
ATX Desktop
Compatible With 1:
Compaq Deskpro 4000
Compatible With 2:
Compaq Deskpro Series PS2014
Country of Manufacture:
China
Power Output:
200W Max
Combined Max Power:
135W
Power Connector:
20-Pin ATX
Input Voltage:
100-120V / 200-240V AC, 50-60Hz
Input Current:
5.5A @ 120V / 2.75A @ 240V
Output Rails:
+5V 25A, +3.6V 10A, +12V 4.5A, -5V 0.15A, -12V 0.15A, +5VSB 1.2A
Part Number:
270646-001
Spare Part Number:
270656-001
Series:
PS2014
Certifications:
UL, TÜV Rheinland, N (Argentina)
Condition Notes:
This Compaq 270656-001 PS-5201-4C 200W ATX Desktop Power Supply has been inspected and appears to be in good used condition. The unit shows light surface wear consistent with prior deployment in a desktop environment.
Compaq PS-5201-4C1 166572-001 200W desktop power supply – three-quarter front view showing fan grill, AC inlet, power switch, and attached Molex and Berg connector harness Compaq PS-5201-4C1 rating label showing Part No. 166569-001, Spare 166572-001, Series PS2015, input 100-240V 5.5/2.75A 50-60Hz, 200W MAX output ratings, and Model PS-5201-4C1 serial number 7077581
Add to Cart
Quick view

Compaq PS-5201-4C1 166572-001 200W Desktop Power Supply Deskpro 4000 PS2015

Compaq

$45.00
Was: $90.00
Compaq PS-5201-4C1 166572-001 200W Desktop Power Supply Deskpro 4000 PS2015This is a 200W AT-form desktop power supply manufactured for Compaq Deskpro 4000 systems. It converts standard AC mains...
13379
SKU:
13379
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Compaq
Model:
PS-5201-4C1
MPN:
166572-001
Secondary Model:
166569-001
Type:
Desktop Computer Power Supply
Series:
PS2015
SKU:
13379
Compatible With:
Compaq Deskpro 4000
Maximum Output Power:
200W
Input Voltage:
100-120V / 200-240V AC
Input Frequency:
50-60Hz
Input Current:
5.5A / 2.75A
+5V Output:
25A MAX
+12V Output:
10A MAX
-12V Output:
0.15A MAX
+3.3V Output:
4.5A MAX
-5V Output:
0.15A MAX
+5VSB Output:
1.2A
Combined MAX Power:
130W
Form Factor:
AT / Proprietary Desktop
Connectors Included:
20-pin ATX, Molex 4-pin, Berg floppy
Condition:
Used – Bench-Tested and in Good Working Condition
Country/Region of Manufacture:
China
Seller Notes:
Includes attached power harness with Molex, Berg, and main motherboard connectors.
Condition Notes:
Compaq PS-5201-4C1 166572-001 200W Deskpro 4000 power supply. Bench-tested at our facility, in good working condition. Normal light cosmetic wear. Full connector harness included. Please contact us with any questions.

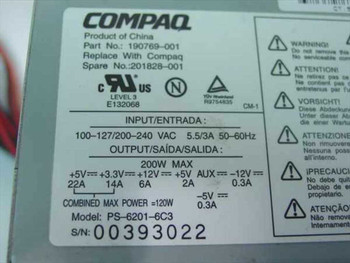

Compaq 201828-001 200W ATX power supply front-left view showing power cables and connectors Compaq PS-6201-6C3 power supply label showing part number 201828-001, input/output specs, and serial number
