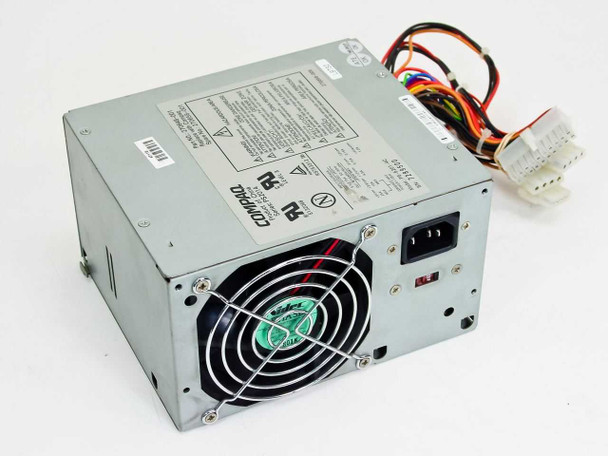

Compaq 270656-001 PS-5201-4C 200W ATX Power Supply Deskpro 4000 PS2014 135W
ATX form factor power supply for Compaq Deskpro desktop systems. Converts AC input to regulated DC output across multiple voltage rails.
Specifications & What's Included
- Model: PS2014 / PS-5201-4C
- Power Output: 200W max; 135W combined max
- Connector: 20-pin ATX
- Input: 100–120V / 200–240V AC, 50–60Hz
- Output Rails: +5V 25A, +3.6V 10A, +12V 4.5A, -5V 0.15A, -12V 0.15A, +5VSB 1.2A
- Certifications: UL, TÜV Rheinland, N (Argentina)
- Unit only; no accessories included
Applications
Designed for Compaq Deskpro 4000 and Deskpro Series systems from the late 1990s and early 2000s. Used in desktop computing environments requiring standard ATX power delivery. Compatible with systems using 20-pin ATX power connectors and 100–240V input specifications.
Condition: Used
This Compaq 270656-001 PS-5201-4C 200W ATX Desktop Power Supply has been inspected and appears to be in good used condition. The unit shows light surface wear consistent with prior deployment in a desktop environment. All output connectors — including the 20-pin ATX main connector and Molex peripheral leads — are present and in good physical condition with no visible damage. The original description indicates this unit was tested to be in working order; please review internally to confirm that test documentation before publishing that claim. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Compaq 270656-001 PS-5201-4C 200W ATX Desktop Power Supply has been inspected and appears to be in good used condition. The unit shows light surface wear consistent with prior deployment in a desktop environment. All output connectors — including the 20-pin ATX main connector and Molex peripheral leads — are present and in good physical condition with no visible damage. The original description indicates this unit was tested to be in working order; please review internally to confirm that test documentation before publishing that claim. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Compaq |
Model: |
PS2014 |
Secondary Model: |
PS-5201-4C |
MPN: |
270656-001 |
SKU: |
11678 |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no accessories included. |
Form Factor: |
ATX Desktop |
Compatible With 1: |
Compaq Deskpro 4000 |
Compatible With 2: |
Compaq Deskpro Series PS2014 |
Country of Manufacture: |
China |
Power Output: |
200W Max |
Combined Max Power: |
135W |
Power Connector: |
20-Pin ATX |
Input Voltage: |
100-120V / 200-240V AC, 50-60Hz |
Input Current: |
5.5A @ 120V / 2.75A @ 240V |
Output Rails: |
+5V 25A, +3.6V 10A, +12V 4.5A, -5V 0.15A, -12V 0.15A, +5VSB 1.2A |
Part Number: |
270646-001 |
Spare Part Number: |
270656-001 |
Series: |
PS2014 |
Certifications: |
UL, TÜV Rheinland, N (Argentina) |
Condition Notes: |
This Compaq 270656-001 PS-5201-4C 200W ATX Desktop Power Supply has been inspected and appears to be in good used condition. The unit shows light surface wear consistent with prior deployment in a desktop environment. |
