Description
Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card Intel 82559

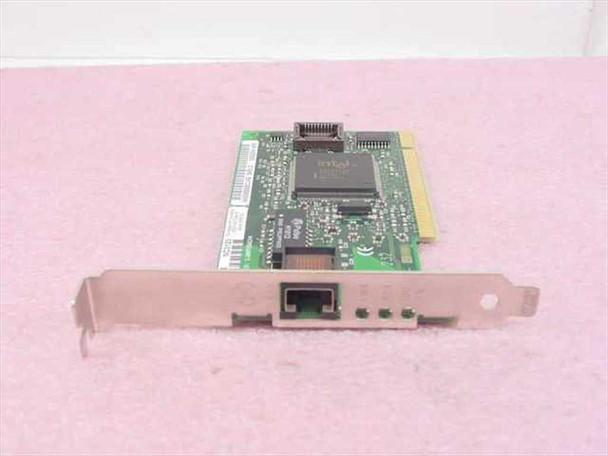

The Compaq NC3120 is a single-port PCI Fast Ethernet network interface card (NIC) designed for desktop and server systems equipped with a standard 32-bit PCI slot. Built around the Intel 82559 Fast Ethernet controller, it provides 10Base-T and 100Base-TX connectivity through a single RJ-45 port, supporting auto-negotiation between 10 Mbps and 100 Mbps link speeds. Compaq part number 317606-001; the board label also shows 317607-001, Rev D, manufactured in Puerto Rico.
Specifications & What's Included
- Manufacturer: Compaq
- Model: NC3120
- Part Number: 317606-001 (board label also shows 317607-001)
- Hardware Revision: Rev D
- Controller Chipset: Intel 82559 Fast Ethernet
- Interface: 32-bit PCI
- Network Speed: 10/100 Mbps (10Base-T / 100Base-TX), auto-negotiating
- Port: 1x RJ-45
- Transformer: Pulse magnetics module (visible on PCB)
- Country of Manufacture: Puerto Rico
- Included: Card only — no brackets, cables, or driver media included
Applications
The NC3120 is a late-1990s/early-2000s PCI Fast Ethernet NIC from Compaq's ProLiant server and commercial desktop line. Cards like this were standard equipment in Compaq ProLiant servers, Deskpro desktops, and compatible third-party PCI systems of that era, providing wired LAN connectivity at 10/100 Mbps — the dominant network standard as organizations transitioned from 10Base-T hubs to Fast Ethernet switched environments. The Intel 82559 chipset was widely used across many OEM NIC designs of this generation and has broad driver support across Windows (9x through Server 2003 and beyond), Linux, and Novell NetWare. Today these cards remain useful for maintaining or restoring legacy Compaq ProLiant servers, vintage PC builds, and any PCI-equipped system that needs a reliable wired network connection where modern PCIe slots are not available.
This Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use and functional. The PCB is clean with no visible damage, and the RJ-45 port and PCI edge connector appear intact. Some light handling marks may be present, consistent with normal service life. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Compaq |
Model: |
NC3120 |
MPN: |
317606-001 |
Secondary Model: |
317607-001 |
Hardware Revision: |
Rev D |
Type: |
PCI 10/100 Ethernet Network Card |
Network Chipset: |
Intel 82559 |
Interface: |
PCI |
Data Rate: |
10/100 Mbps (10Base-T / 100Base-TX) |
Connector Type: |
RJ-45 |
Number of Ports: |
1 |
Form Factor: |
PCI Card |
Compatible With: |
Compaq ProLiant servers, desktop PCs with PCI slot |
Country/Region of Manufacture: |
Puerto Rico |
SKU: |
26356 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Card only; no accessories included. |
Condition Notes: |
Compaq NC3120 317606-001 PCI 10/100 Ethernet NIC. Pulled from a working environment, previously in use and functional. Inspected and in good used condition. PCB clean, ports intact. Card only. |
