Compaq

Compaq 116188-001 10/100 PCI Network Card Intel 82559 NIC RJ-45 Fast Ethernet

(No reviews yet) Write a Review
SKU:
19507
MPN:
116188-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Compaq 116188-001 10/100 PCI Network Card – front angled view showing RJ-45 port on full-height bracket and green PCB

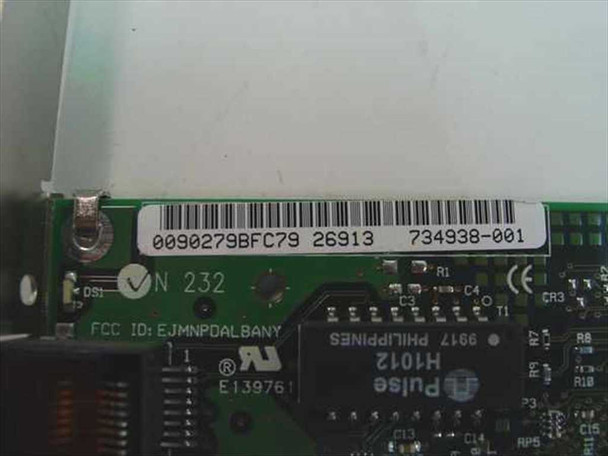

  • Compaq 116188-001 NIC – close-up of board label showing part number 734938-001, FCC ID, and Pulse H1012 magnetics chip

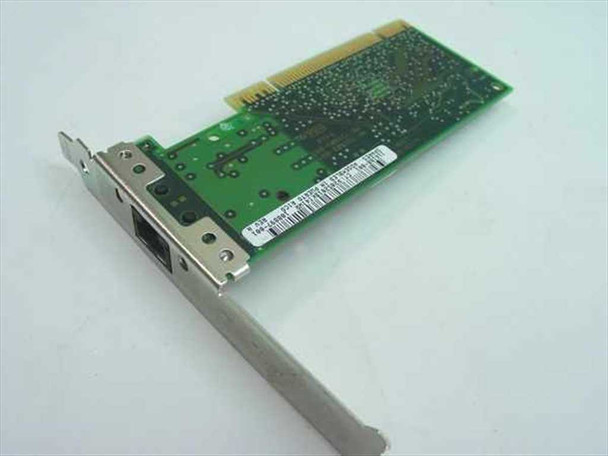

  • Compaq 116188-001 10/100 PCI Network Card – rear angled view showing PCI edge connector and board underside
$8.00
Was: $15.00
Current Stock: 3

Sold Out

Description

Compaq 116188-001 10/100 PCI Network Card Intel 82559 NIC RJ-45 Fast Ethernet

This is a single-port 10/100 Mbps PCI network interface card based on the Intel 82559 chipset. It connects to networks via RJ-45 connector and was commonly used in server and workstation environments.

Specifications & What's Included

  • Brand: Compaq
  • Model: 116188-001 / 734938-001
  • Chipset: Intel 82559
  • Data Rate: 10/100 Mbps
  • Interface: PCI (full-height card)
  • Connector: RJ-45 (single port)
  • Standards: 10BaseT, 100BaseTX
  • Card only; no drivers or accessories included

Applications

The 82559-based NIC was standard in Compaq ProLiant servers and business systems throughout the late 1990s and 2000s. These cards supported legacy 10 Mbps and Fast Ethernet 100 Mbps networks. They remain functional for retro computing projects, network troubleshooting, or as replacement components in older server hardware still in use.

Condition: Used
This Compaq 116188-001 10/100 PCI Network Card has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The card shows normal light wear consistent with prior installation and removal from a system. The RJ-45 port and PCI edge connector appear clean with no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
116188-001
MPN:
116188-001
Secondary Model:
734938-001
Type:
10/100 PCI Network Interface Card (NIC)
Network Chipset:
Intel 82559
Data Transfer Rate:
10/100 Mbps
Interface:
PCI
Connector Type:
RJ-45
Number of Ports:
1
Form Factor:
Full-Height PCI Card
Compatible Standard:
10BaseT, 100BaseTX, Fast Ethernet
SKU:
19507
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
Philippines
Seller Notes:
Card only; no drivers or accessories included.
Condition Notes:
Compaq 116188-001 10/100 PCI NIC in good used condition. Pulled from a working environment. Normal light wear; RJ-45 port and PCI edge connector appear clean. No damage observed.
View AllClose

Related Products

Related Products

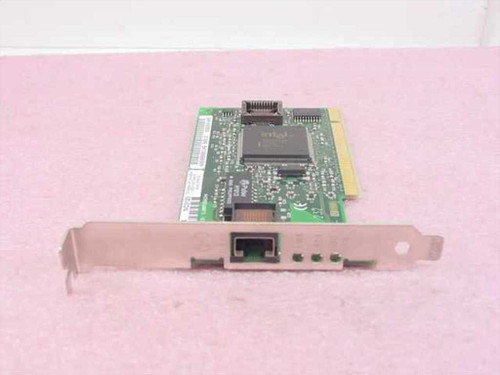

Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card – front component side showing main Intel chipset and RJ-45 port Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card – reverse PCB side showing Intel 82559 controller chip and Pulse transformer
Add to Cart
Quick view

Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card Intel 82559

Compaq

$12.00
Was: $25.00
Compaq NC3120 317606-001 PCI 10/100 Ethernet Network Card Intel 82559The Compaq NC3120 is a single-port PCI Fast Ethernet network interface card (NIC) designed for desktop and server systems equipped...
26356
SKU:
26356
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Compaq
Model:
NC3120
MPN:
317606-001
Secondary Model:
317607-001
Hardware Revision:
Rev D
Type:
PCI 10/100 Ethernet Network Card
Network Chipset:
Intel 82559
Interface:
PCI
Data Rate:
10/100 Mbps (10Base-T / 100Base-TX)
Connector Type:
RJ-45
Number of Ports:
1
Form Factor:
PCI Card
Compatible With:
Compaq ProLiant servers, desktop PCs with PCI slot
Country/Region of Manufacture:
Puerto Rico
Operating System:
Windows, Linux, NetWare
SKU:
26356
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no accessories included.
Condition Notes:
Compaq NC3120 317606-001 PCI 10/100 Ethernet NIC. Pulled from a working environment, previously in use and functional. Inspected and in good used condition. PCB clean, ports intact. Card only.

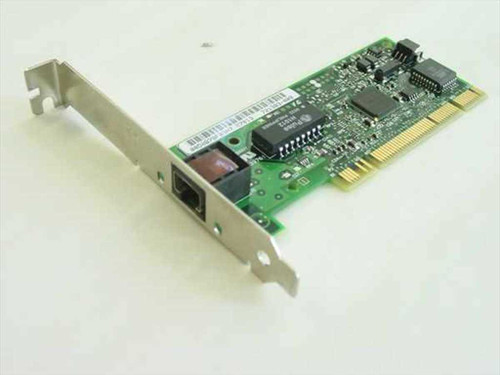

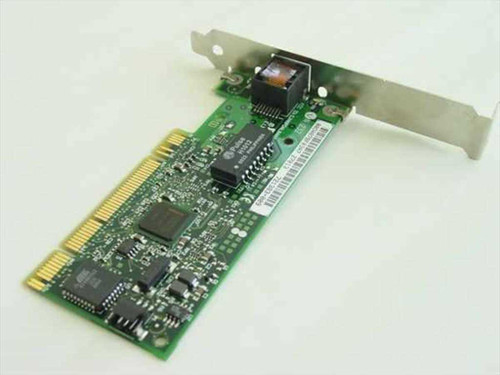

Intel 721383-009 10/100 PCI Network Card — front view showing RJ-45 port bracket and PCB components Intel 721383-009 PCI NIC — rear-angle view showing main controller chip and PCI edge connector
Add to Cart
Quick view

Intel 721383-009 10/100 PCI Network Card NIC RJ-45 Fast Ethernet LAN Adapter

Intel

$8.00
Was: $15.00
Intel 721383-009 10/100 PCI Network Card NIC RJ-45 Fast Ethernet LAN AdapterThe Intel 721383-009 is a single-port 10/100 Mbps Fast Ethernet PCI network interface card (NIC) designed for desktop and...
22221
SKU:
22221
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Intel
Model:
721383-009
MPN:
721383-009
Type:
10/100 PCI Network Interface Card (NIC)
SKU:
22221
Condition:
Used – Inspected
Interface:
PCI
Network Speed:
10/100 Mbps (Fast Ethernet)
Number of Ports:
1
Connector Type:
RJ-45
Form Factor:
PCI Card
Compatible With:
PCI desktop/workstation motherboards
Country/Region of Manufacture:
Philippines
Seller Notes:
Card only — no accessories included.
Condition Notes:
Intel 721383-009 10/100 PCI NIC inspected and in good used condition. PCB, PCI edge connector, and RJ-45 port are clean and intact. Normal light wear from prior use.
Intel 727095-007 10/100 PCI Network Card – front angled view showing RJ-45 port and PCB components Intel 727095-007 PCI NIC – PCB reverse side showing HP part numbers 727502-005 and solder side traces
Add to Cart
Quick view

Intel 727095-007 10/100 PCI Network Card NIC RJ-45 Ethernet Adapter HP

Intel

$8.00
Was: $15.00
Intel 727095-007 10/100 PCI Network Card NIC RJ-45 Ethernet Adapter HP 727502-005 This is a single-port Fast Ethernet network interface card designed for desktop PCs with PCI slots. It provides...
12376
SKU:
12376
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Intel
Model:
727095-007
MPN:
727095-007
Secondary Model:
727502-005
Type:
PCI Network Interface Card (NIC)
SKU:
12376
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no software or accessories included.
Country/Region of Manufacture:
China
Form Factor:
PCI
Interface Type:
PCI
Connector Type:
RJ-45
Number of Ports:
1
Data Transfer Rate:
10/100 Mbps
Network Speed:
Fast Ethernet (100BASE-TX)
Compatible With:
Desktop PCs with PCI slots
Network Chipset:
Intel (main controller IC visible on PCB)
LED Indicators:
ACT/LINK, 100X (visible on bracket)
Condition Notes:
Intel 727095-007 10/100 PCI NIC in good used condition. PCB and bracket intact with normal handling wear. RJ-45 port clean and undamaged. Pulled from a working environment.

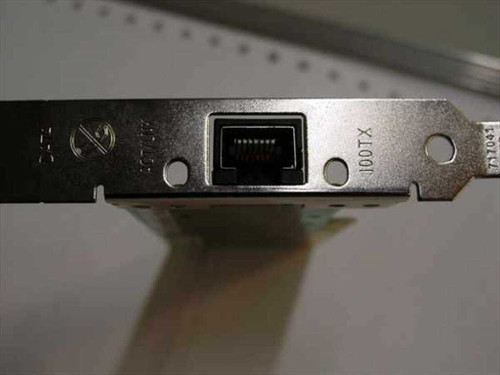

Compaq 174831-001 10/100 Ethernet PCI NIC – front component side showing green PCB, main controller chip, and PCI edge connector Compaq 174831-001 NIC – bracket closeup showing single RJ-45 port labeled 100TX
