Compaq 338478-001 Dual Port 10/100 PCI Network Card I-Base Board AS#009542-003

(No reviews yet) Write a Review
SKU:
22149
MPN:
338478-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

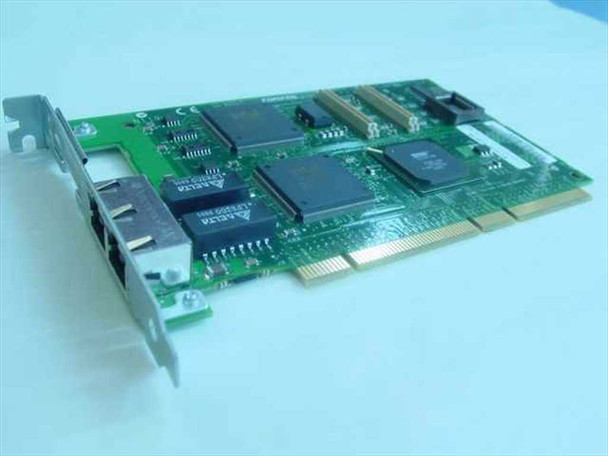

  • Compaq 338478-001 Dual Port 10/100 PCI Network Card – angled top view showing two RJ-45 ports and main controller ICs
  • Compaq 338478-001 Dual Port 10/100 I-Base Board – side view showing dual RJ-45 ports and PCI edge connector

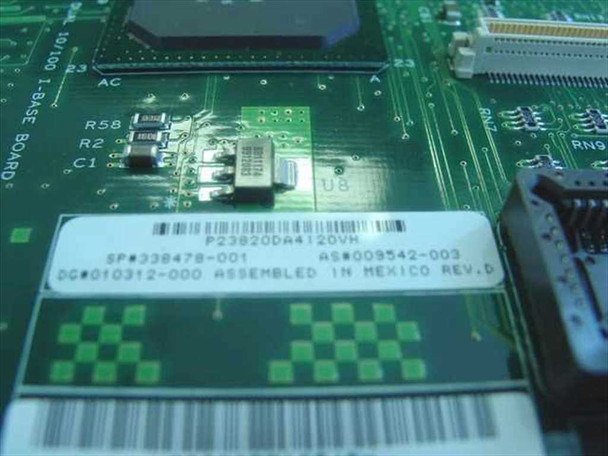

  • Compaq 338478-001 label closeup showing part number SP#338478-001, AS#009542-003, DC#010312-000, Assembled in Mexico Rev D
$15.00
Was: $30.00
Current Stock: 7

Sold Out

Description

Compaq 338478-001 Dual Port 10/100 PCI Network Card I-Base Board AS#009542-003

The Compaq 338478-001 is a dual-port 10/100 Mbps Fast Ethernet PCI network card, also referred to as the I-Base Board. It provides two independent RJ-45 Ethernet ports on a single PCI card, allowing a host system to connect to two separate network segments simultaneously. The board carries assembly number AS#009542-003 and is revision D, assembled in Mexico per the label visible on the PCB.

Specifications & What's Included

  • Manufacturer Part Number (MPN): 338478-001
  • Assembly Number: AS#009542-003
  • Date Code: DC#010312-000
  • Hardware Revision: Rev D
  • Interface: PCI
  • Number of Ports: 2 x RJ-45 (dual Fast Ethernet)
  • Port Speed: 10/100 Mbps Fast Ethernet
  • Controller ICs: Altec/Delta branded controller chipset (markings partially legible in photos)
  • Form Factor: Standard PCI card with full-height bracket
  • Country of Assembly: Mexico
  • Included: Card only

Applications

Dual-port 10/100 PCI network cards like the Compaq 338478-001 were designed for use in Compaq ProLiant servers and Compaq workstations of the late 1990s and early 2000s, where a single card could provide two separate Fast Ethernet connections — useful for network redundancy, load balancing, or connecting to two distinct network segments from one slot. The I-Base Board designation was part of Compaq's server networking product line during this era, before HP's acquisition of Compaq in 2002 brought these product families under the HP ProLiant umbrella. These cards remain relevant for maintaining legacy Compaq server infrastructure, spare-parts pools, or vintage lab environments still running period hardware.

Condition: Used
This Compaq 338478-001 Dual Port 10/100 PCI Network Card has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The board shows normal light wear consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
338478-001
MPN:
338478-001
Secondary Model:
AS#009542-003
Type:
Dual Port 10/100 PCI Network Card
SKU:
22149
Condition:
Used – Pulled from Working Environment
Interface:
PCI
Number of Ports:
2
Port Speed:
10/100 Mbps Fast Ethernet
Connector Type:
RJ-45
Form Factor:
PCI Card
Hardware Revision:
Rev D
Country/Region of Manufacture:
Mexico
Compatible With:
Compaq ProLiant servers and workstations
Seller Notes:
Card only; pulled from a working environment
Condition Notes:
Compaq 338478-001 Dual Port 10/100 PCI NIC. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Normal light wear. Please contact us with any questions.
View AllClose

Related Products

Related Products

Compaq 161105-001 dual-port 10/100 PCI network card – angled front view showing two RJ-45 ports and bracket Compaq 161105-001 dual-port PCI NIC – reverse-angle view showing PCB top side and PCI edge connector
Add to Cart
Quick view

Compaq 161105-001 Dual Port 10/100 Base-T PCI Network Card NIC 010555-001

Compaq

$18.00
Was: $40.00
Compaq 161105-001 Dual Port 10/100 Base-T PCI Network Card NIC 010555-001Dual-port Ethernet network interface card for adding or expanding network connectivity in legacy server and workstation...
22153
SKU:
22153
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Compaq
Model:
161105-001
MPN:
161105-001
Secondary Model:
010555-001
Assembly Number:
010387-000
Board Number:
010388-001
Hardware Revision:
A/W Rev A, FAB Rev A, Rev B
SKU:
22153
Type:
Dual Port 10/100 PCI Network Interface Card
Number of Ports:
2
Port Speed:
10/100 Mbps
Interface:
PCI
Connector Type:
RJ-45
Networking Standard:
10Base-T, 100Base-TX
Form Factor:
PCI Card
Country/Region of Manufacture:
Mexico
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; no accessories. Pulled from a working environment.
Condition Notes:
Compaq 161105-001 dual-port 10/100 PCI NIC inspected and in good used condition. Pulled from a working environment. Normal handling wear; no damage observed. Card only, no accessories.

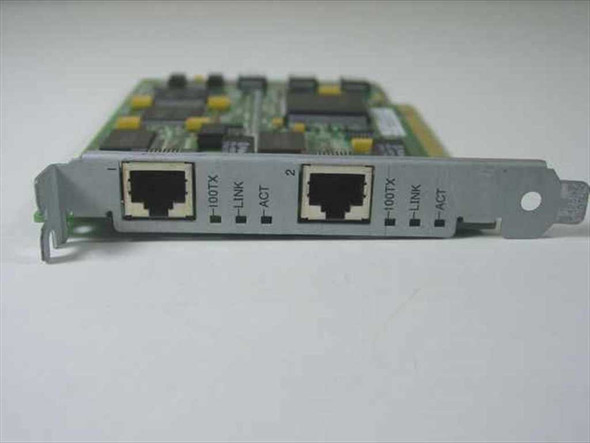

Compaq 242560-001 Dual Port 10/100TX PCI Network Adapter – top-side PCB view showing full board layout and components Compaq 242560-001 Dual Port 10/100TX NIC – bracket end showing two RJ-45 ports with 100TX, Link, and ACT indicators
Add to Cart
Quick view

Compaq 242560-001 Dual Port 10/100TX PCI Network Adapter Card 006312-001

Compaq

$18.00
Was: $40.00
Compaq 242560-001 Dual Port 10/100TX PCI Network Adapter Card 006312-001A dual-port Fast Ethernet network adapter card for PCI-based systems. This card provides two independent 10/100TX connections...
28356
SKU:
28356
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Compaq
Model:
242560-001
MPN:
242560-001
Secondary Model:
006312-001
Type:
Dual Port 10/100TX Fast Ethernet PCI Network Adapter
SKU:
28356
Chipset:
IBM 27-82352
Number of Ports:
2
Port Speed:
10/100TX (Fast Ethernet)
Connector Type:
RJ-45
Interface:
PCI
Form Factor:
PCI Card / Half-Height Bracket
Hardware Revision:
Rev E
Country/Region of Manufacture:
Mexico
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from a working environment and inspected.
Condition Notes:
Compaq 242560-001 Dual Port 10/100TX PCI NIC. Inspected and in good used condition; pulled from a working environment. PCB clean, ports intact, no visible damage.

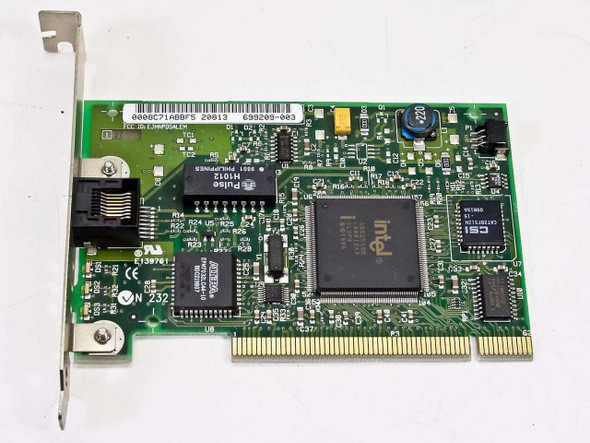

Compaq 323553-001 Intel NC3121 PCI 10/100 network card — component side showing Intel controller chip and Pulse transformer Compaq 323553-001 NC3121 PCI NIC — solder side showing Compaq label reading 10/100 TX PCI Intel WOL UTP Controller and part number stickers
