Compaq

Compaq 201828-001 200W ATX Power Supply PS-6201-6C3 100-240V Desktop PC

(No reviews yet) Write a Review
SKU:
21815
MPN:
201828-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Compaq 201828-001 200W ATX power supply front-left view showing power cables and connectors
  • Compaq PS-6201-6C3 power supply label showing part number 201828-001, input/output specs, and serial number

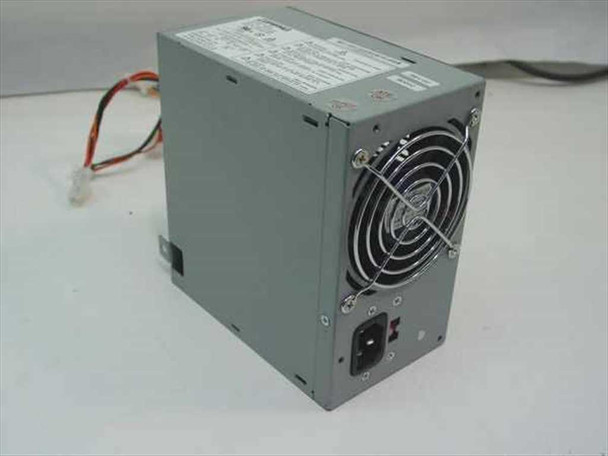

  • Compaq 201828-001 ATX power supply rear view showing IEC inlet, power switch, and cooling fan
$40.00
Was: $135.00
Current Stock: 1

Sold Out

Description

Compaq 201828-001 200W ATX Power Supply PS-6201-6C3 100-240V Desktop PC

Used ATX form factor power supply rated for 200W maximum output. Suitable for Compaq desktop computers and compatible ATX-based systems requiring standard 20-pin connectors.

Specifications & What's Included

  • Model: PS-6201-6C3 | MPN: 201828-001
  • Output: 200W max; +5V 22A, +3.3V 14A, +12V 6A, +5V AUX 2A, -12V 0.3A, -5V 0.3A
  • Input: 100-127V / 200-240V AC, 5.5/3A, 50-60Hz
  • Connectors: ATX 20-pin, 4-pin Molex, floppy power
  • Certifications: UL, TÜV (R9754835), cUL (E132068)
  • Power supply only; no additional accessories

Applications

This supply was commonly used in Compaq Presario and similar desktop systems from the late 1990s and early 2000s. The 200W output and dual voltage input are typical of that era. Compatible with legacy ATX systems and some industrial/embedded computing applications requiring standard ATX connectors.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Compaq 201828-001 PS-6201-6C3 200W ATX Desktop Power Supply has been tested at our facility and confirmed to be in good working order. The unit shows normal cosmetic wear consistent with prior use in a desktop PC environment. The housing is intact with no visible damage, all output power cables and connectors are present, and the rear cooling fan and IEC inlet are in good condition. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Compaq
Model:
PS-6201-6C3
MPN:
201828-001
Secondary MPN:
190769-001
SKU:
21815
Condition:
Used – Inspected and Tested
Seller Notes:
Power supply only; no additional accessories included.
Form Factor:
ATX
Power Output:
200W Max
Input Voltage:
100-127V / 200-240V AC, 5.5/3A, 50-60Hz
Output Rails:
+5V 22A, +3.3V 14A, +12V 6A, +5V AUX 2A, -12V 0.3A, -5V 0.3A
Combined Max Power:
120W
Compatible With:
Compaq Desktop PCs using ATX form factor PSU
Country of Manufacture:
China
Certifications:
UL, TÜV (R9754835), cUL (E132068)
Connector Type:
ATX 20-pin, 4-pin Molex, floppy power connectors
Condition Notes:
Compaq 201828-001 PS-6201-6C3 200W ATX power supply. Tested and confirmed in working order. Normal cosmetic wear. All cables and connectors present. Please view photos and contact us with any questions.
View AllClose

Related Products

Related Products

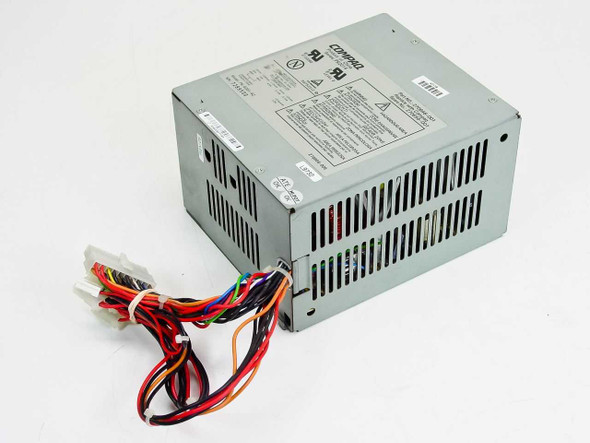

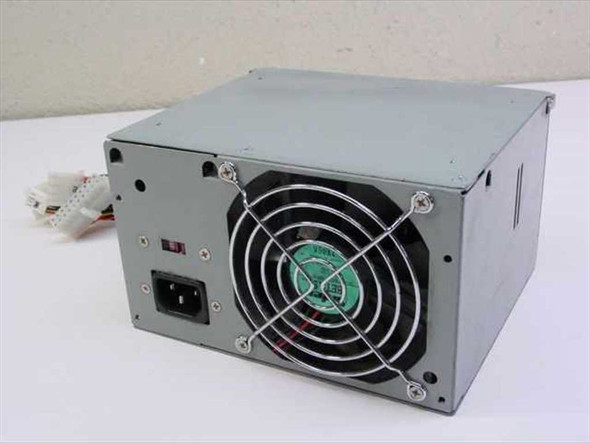

Compaq PS2014 270656-001 200W ATX power supply – rear view showing IEC AC inlet, power switch, and 80mm cooling fan Compaq PS2014 270656-001 200W ATX power supply – side and top view showing vented enclosure and output wire harness
