Description

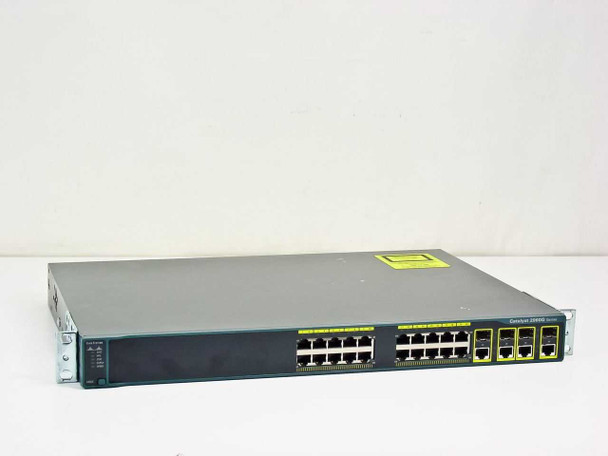

Cisco WS-C2960G-24TC-L Catalyst 2960G 24-Port Gigabit Switch 4 SFP Uplinks
The Cisco WS-C2960G-24TC-L is a Layer 2 managed gigabit Ethernet switch from the Catalyst 2960G series. It provides 24 10/100/1000 Mbps RJ-45 access ports and 4 dual-purpose uplink ports — each uplink accepting either an SFP fiber/copper module or a standard RJ-45 gigabit connection, giving flexible uplink options without dedicated SFP-only slots. The switch is 1U rackmount and managed through a full IOS feature set including VLANs, spanning tree, QoS, and SNMP.
Specifications & What's Included

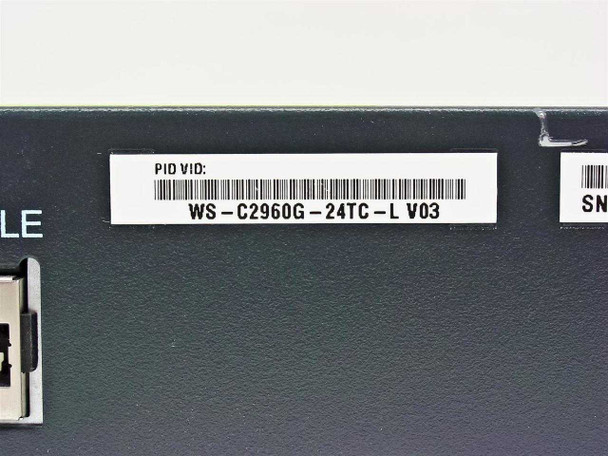

- Model: WS-C2960G-24TC-L (Hardware Version V03)
- Series: Cisco Catalyst 2960G

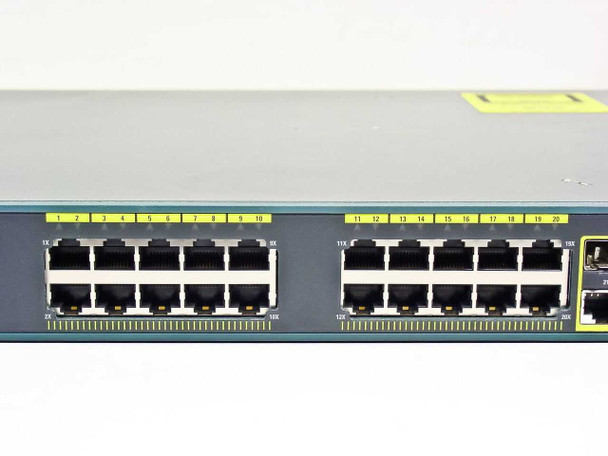

- Access Ports: 24 x 10/100/1000 Mbps RJ-45
- Uplink Ports: 4 x dual-purpose (SFP or 10/100/1000 RJ-45) — ports 21–24
- Switching Layer: Layer 2 managed
- Console Port: RJ-45
- Form Factor: 1U rackmount

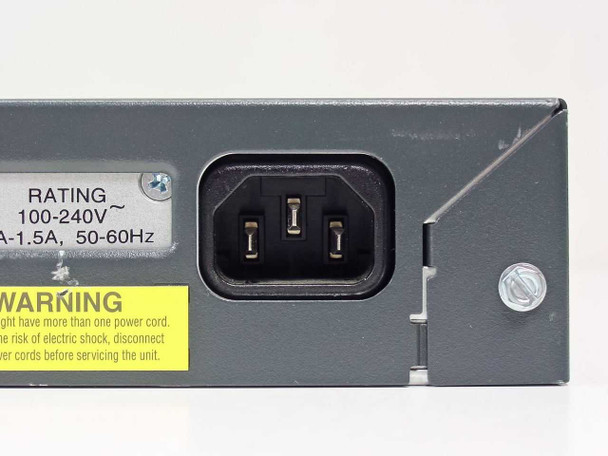

- Power Input: 100–240V AC, 50–60Hz, 1.5A (IEC AC inlet)

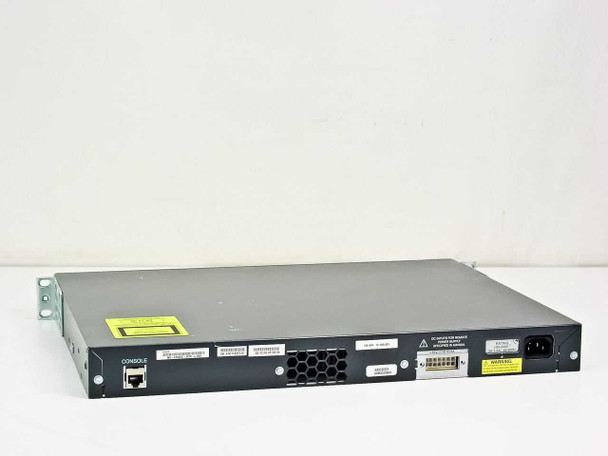

- Remote Power Supply Input: +12V DC @ 10.5A (rear multi-pin DC connector)
- Status LEDs: SYST, RPS, STAT, DUPLX, SPEED with front-panel MODE button
- Switch only — no power cord, SFP modules, rack mount ears, or cables included
Applications
The Cisco Catalyst 2960G series is a widely deployed access-layer switching platform designed for enterprise LAN environments. The WS-C2960G-24TC-L is used to connect end-user devices — workstations, IP phones, access points, and servers — to the network at full gigabit speeds, making it well suited for high-density office floors, server rooms, and wiring closets. Its IOS LAN Lite software supports VLANs, 802.1Q trunking, Spanning Tree Protocol (STP/RSTP), port security, and basic QoS, covering the needs of most access-layer deployments. The four dual-purpose uplinks allow uplink aggregation to distribution-layer switches via either copper or SFP fiber, adding flexibility when cabling to remote IDF or MDF closets. The 2960G line was introduced in the mid-2000s and remains widely used in enterprise and campus networks today due to its reliability, broad IOS familiarity, and gigabit port density at a compact 1U form factor.
This Cisco WS-C2960G-24TC-L Catalyst 2960G 24-Port Gigabit Switch was pulled from a working environment where it was previously in active use. It has been visually inspected and appears to be in good used condition. The chassis is intact with no visible cracks or significant damage. Normal cosmetic wear consistent with data center use may be present. No SFP modules, power cord, or rack hardware are included. Please review our photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Cisco |
Model: |
WS-C2960G-24TC-L |
MPN: |
WS-C2960G-24TC-L |
SKU: |
44224 |
Type: |
Managed Gigabit Ethernet Switch |
Series: |
Catalyst 2960G |
Hardware Version: |
V03 |
Number of Ports: |
24 x 10/100/1000 RJ-45 + 4 Dual-Purpose Uplinks |
Uplink Ports: |
4 x Dual-Purpose (SFP or 10/100/1000 RJ-45) |
Port Speed: |
10/100/1000 Mbps (Gigabit Ethernet) |
Switching Layer: |
Layer 2 |
Management Type: |
Managed |
Form Factor: |
1U Rackmount |
Console Port: |
RJ-45 |
Power Requirements: |
100-240V AC, 50-60Hz, 1.5A |
Remote Power Supply Input: |
+12V DC @ 10.5A |
Country/Region of Manufacture: |
China |
Seller Notes: |
Switch only — no power cord, SFP modules, rack ears, or cables included. |
Condition Notes: |
This Cisco WS-C2960G-24TC-L Catalyst 2960G 24-Port Gigabit Switch was pulled from a working environment. Visually inspected and in good used condition. Normal wear may be present. No power cord, SFPs, or rack hardware included. |
