Cisco

Cisco C4500 4000 Series Router Chassis 2 Modules AC 10BaseT T1 Serial

(No reviews yet) Write a Review
SKU:
13148
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
29.00 LBS
Shipping:
Calculated at Checkout
  • Cisco 4000 Series router chassis front view showing ventilation, status LEDs, and module bays
  • Close-up of Cisco 4000 Series router front module slots 1, 2, and 3 with DATA and OK indicators — slot 2 shows green LED lit
  • Close-up of Cisco 4000 Series front panel label with OK and POWER status LEDs illuminated green

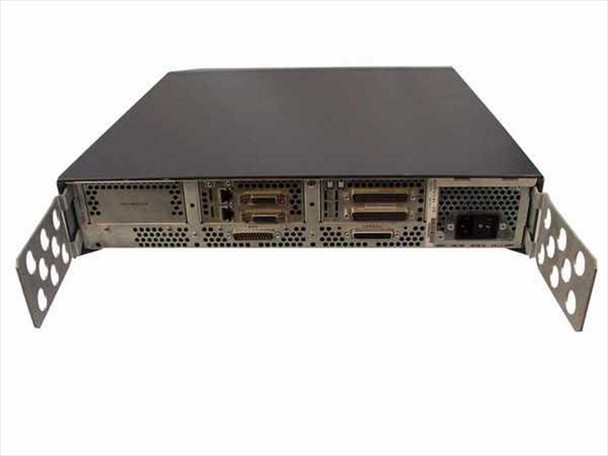

  • Cisco C4500 4000 Series router chassis rear view showing module ports, serial connectors, AC power inlet, and rack ears
  • Cisco C4500 rear port detail — two 10BaseT RJ-45 Ethernet ports (PORT-1 and PORT-0), two DB-25 Ethernet-AUI connectors, and AUX DB-25 port

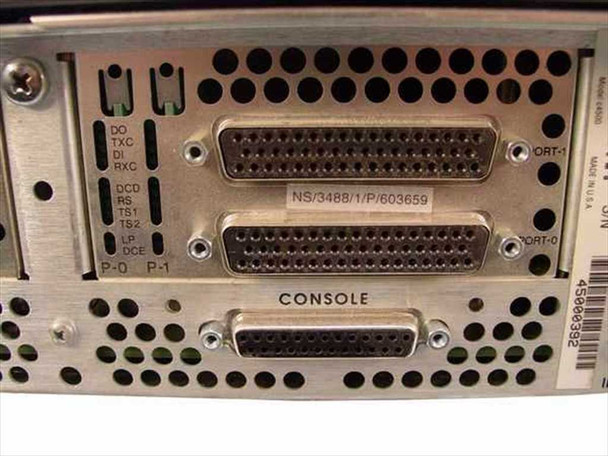

  • Cisco C4500 rear module detail — NS/3488/1/P/603659 serial WAN module with two high-density serial port connectors and CONSOLE DB-25 port
  • Cisco Systems label on rear of C4500 chassis showing Model c4500, Made in USA, and serial number 45000392
$300.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Cisco C4500 4000 Series Router Chassis 2 Modules AC 10BaseT T1 Serial

The Cisco C4500 is a modular router chassis from the Cisco 4000 Series — a line of fixed-configuration and modular WAN/LAN routers designed for branch office and enterprise edge connectivity. This chassis comes with two installed network interface modules and an AC power supply, providing 10BaseT Ethernet, serial WAN, and T1/PRI uplink capability out of the box.

Specifications & What's Included

  • Model: Cisco C4500 (Cisco 4000 Series Router Chassis)
  • Ethernet Ports: 2 x 10BaseT (RJ-45), with AUI connectors
  • Serial WAN Ports: 4 x serial network interface ports (high-density)
  • T1/PRI Uplink: 1 x T1/PRI port
  • AUX Port: 1 x DB-25 AUX connector (rear)
  • Console Port: 1 x DB-25 Console connector (rear)
  • Management Protocol: SNMP
  • DRAM: 16 MB
  • Flash Memory: 12 MB
  • NVRAM: 128 KB
  • Power Supply: AC (internal, single supply)
  • Form Factor: Rackmount, 2U — rack ears installed
  • Installed Module 1: 2-Port 10BaseT Ethernet module (RJ-45/AUI) with 2 additional 15-pin AUI ports
  • Installed Module 2: NS/3488/1/P/603659 serial/WAN interface module
  • Module Bays: 3 visible front-access bays (slots 1, 2, 3)
  • Country of Manufacture: USA (as labeled)

Applications

The Cisco 4000 Series routers were introduced in the early-to-mid 1990s as modular branch office routers, supporting a range of WAN technologies including T1/PRI, serial leased lines, Frame Relay, and 10BaseT Ethernet LAN segments. They ran Cisco IOS and were widely deployed in enterprise branch offices and campus networks where SNMP management, WAN aggregation, and modular expansion were required. The 4000 Series was eventually superseded by the Cisco 3600 and 2600 Series, making these units largely legacy equipment today. They remain of interest to Cisco IOS labs, network training environments, and collectors of classic Cisco hardware. This chassis — with its 10BaseT Ethernet and T1/PRI capability — is representative of the type of WAN-edge routing infrastructure that connected branch offices to corporate WANs and ISDN/T1 circuits during the 1990s.

Condition: Used
This Cisco C4500 4000 Series Router Chassis is complete with two installed modules and AC power supply. It powers up — the OK and POWER LEDs illuminate on the front panel — but we were unable to fully test its routing functions, so it is being offered in as-is condition. The chassis shows typical cosmetic wear for equipment of its age: light surface scuffing on the enclosure, normal for a rack-installed unit. Both installed modules are seated and visible, all rear connectors appear intact, and the rack ears are in place. You are welcome to preview and inspect this unit by appointment at our facility in Ventura, CA during normal business hours (8am–5pm, Monday–Friday). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Cisco
Model:
C4500
MPN:
C4500
Secondary Model:
NS/3488/1/P/603659
SKU:
13148
Type:
Modular Router Chassis
Series:
Cisco 4000 Series
Number of Ports:
2x 10BaseT Ethernet + 4x Serial + 1x T1/PRI
Ethernet Ports:
2 x 10BaseT (RJ-45/AUI)
Serial Ports:
4 x Serial WAN interface ports
Uplink:
1 x T1/PRI port
AUI Ports:
2 x 15-pin AUI (on Ethernet module)
Console Port:
Yes — DB-25 console connector (rear)
AUX Port:
Yes — DB-25 AUX connector (rear)
Management Protocol:
SNMP
Installed Modules:
2 modules installed
Module 1:
2-Port 10BaseT Ethernet (RJ-45/AUI) w/ 2x AUI
Module 2:
NS/3488/1/P/603659 serial/WAN module
DRAM:
16 MB
Flash Memory:
12 MB
NVRAM:
128 KB
Power Supply:
AC
Form Factor:
Rackmount, 2U
Country/Region of Manufacture:
United States
Seller Notes:
Includes 2 installed modules and AC power supply. No cables included.
Condition Notes:
Cisco C4500 4000 Series Router Chassis powers up (OK/POWER LEDs illuminate) but could not be fully tested. Sold as-is. Complete with 2 modules and AC power. Inspection by appt in Ventura, CA. Please contact us with questions.
