Indexing Drive

Chanto JG20X5 BD-2AA-008-P01A Indexing Drive Humphrey TAC2 41P Pneumatic

(No reviews yet) Write a Review
SKU:
49418
MPN:
BD-2AA-008-P01A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
77.00 LBS
Shipping:
Calculated at Checkout

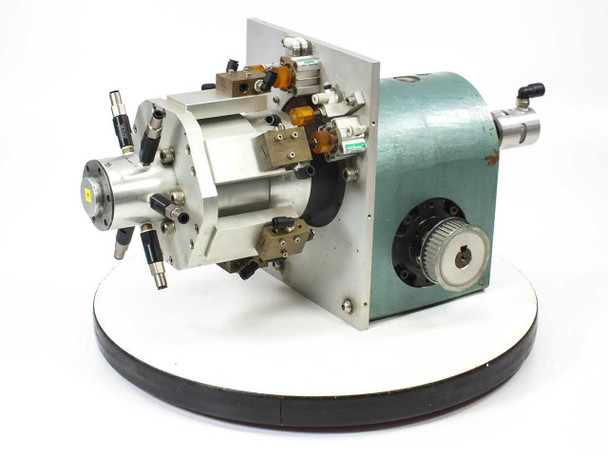

  • Chanto JG20X5 BD-2AA-008-P01A pneumatic indexing drive assembly – front-left isometric view showing full unit with valves and cylinder
  • Chanto JG20X5 BD-2AA-008-P01A indexing drive – rear-left isometric view showing teal motor housing, mounting plate, and tooling head
  • Chanto JG20X5 BD-2AA-008-P01A indexing drive – close-up of motor housing showing part number BD-2AA-008-P01A and Chinese ventilation label
  • Chanto JG20X5 indexing drive – close-up of multi-port pneumatic tooling head with push-to-connect fittings and yellow caution sticker
  • Chanto JG20X5 indexing drive – close-up of Bimco TF18-40-18M push-to-connect pneumatic fitting on valve manifold block
  • Chanto JG20X5 indexing drive – close-up of Humphrey TAC2 41P pneumatic valve with exhaust ports and amber indicator visible
  • Chanto JG20X5 indexing drive – close-up of Chanto JG20X5 pneumatic cylinder labeled PRESS 10kgf/cm² with push-to-connect fittings
  • Chanto JG20X5 BD-2AA-008-P01A indexing drive – side view of toothed timing pulley output and mounting plate showing surface rust
  • Chanto JG20X5 indexing drive – opposite side view showing central shaft output hub with surface oxidation on flange face
  • Chanto JG20X5 indexing drive – close-up of Starrett JW-190-R position sensor mounted to indexing drive output flange
$375.00
Was: $750.00
Current Stock: 1

Sold Out

Description

Chanto JG20X5 BD-2AA-008-P01A Indexing Drive Humphrey TAC2 41P Pneumatic

Pneumatic indexing drive unit designed for rotary positioning and intermittent motion control in industrial automation. Outputs torque through a toothed belt pulley and operates on compressed air input.

Specifications & What's Included

  • Brand: Chanto; Model: JG20X5; MPN: BD-2AA-008-P01A
  • Type: Pneumatic Indexing Drive with toothed belt pulley output
  • Pressure Rating: 10 kgf/cm²
  • Includes Humphrey TAC2 41P pneumatic valve assembly
  • Includes Bimba pneumatic cylinder
  • Includes Starrett JW-190-R position sensor
  • Push-to-connect fittings (Bimco TF18-40-18M)
  • Manufactured in Taiwan

Applications

Indexing drives are used in assembly machinery, packaging equipment, and automated production lines for precise rotational positioning. The toothed belt pulley output integrates with conveyor systems and dial tables. This unit handles repetitive indexing cycles in pharmaceutical, food processing, and light manufacturing environments where pneumatic actuation is specified.

Condition: Used
This Chanto JG20X5 BD-2AA-008-P01A pneumatic indexing drive has been inspected and is in good used condition. The main teal-painted housing shows surface rust on the mounting flange faces and some paint wear on edges, consistent with prior industrial use. The Humphrey TAC² valves, Chanto JG20X5 cylinder (rated 10 kgf/cm²), Starrett JW-190-R position sensor, and Bimco push-to-connect pneumatic fittings are all present and intact. The timing pulley output and shaft appear undamaged. No missing fasteners or broken fittings were observed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Chanto
Model:
JG20X5
MPN:
BD-2AA-008-P01A
Secondary Model:
BD-2AA-008-P01A
SKU:
49418
Type:
Pneumatic Indexing Drive
Actuation Type:
Pneumatic
Included Valve Brand:
Humphrey
Included Valve Model:
TAC2 41P
Included Cylinder Brand:
Bimba (Chanto JG20X5)
Included Cylinder Pressure Rating:
10 kgf/cm²
Included Sensor:
Starrett JW-190-R position sensor
Fittings/Connectors:
Push-to-connect pneumatic fittings (Bimco TF18-40-18M)
Drive Output:
Toothed belt pulley / timing pulley output
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Humphrey TAC2 valves, Starrett sensor, and Bimba cylinder as assembled
Country/Region of Manufacture:
Taiwan
Condition Notes:
Used Chanto JG20X5 BD-2AA-008-P01A pneumatic indexing drive. Inspected and in good condition. Surface rust on flange faces; Humphrey TAC2 valves, Starrett sensor, and cylinder all present and intact.
