C&D Technologies

C&D Technologies AGM25L-1 110.4025.24 48V Power Plant CEMF Cell 12V 50Ah

(No reviews yet) Write a Review
SKU:
15614
MPN:
110.4025.24
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
362.00 LBS
Shipping:
Calculated at Checkout
  • C&D Technologies AGM25L-1 48V Power Plant full front view showing CEMF Cell controller, rectifier modules, and four AGM batteries in open frame rack
  • C&D Technologies CEMF Cell front panel with Cell 1 and Cell 2 indicator lights, ADJ and TP test points, and 5-amp fuse holder

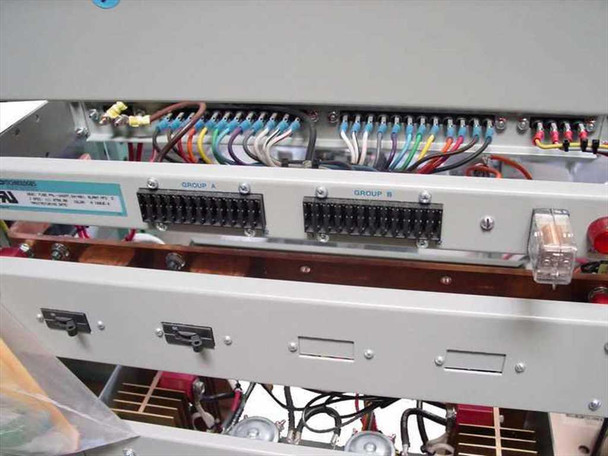

  • Interior wiring view of AGM25L-1 showing Group A and Group B terminal blocks with multicolor wire harness and relay
  • Four Guardian SafeGuard DGS12-50F 12V-50Ah AGM batteries installed in battery tray with status LEDs visible above

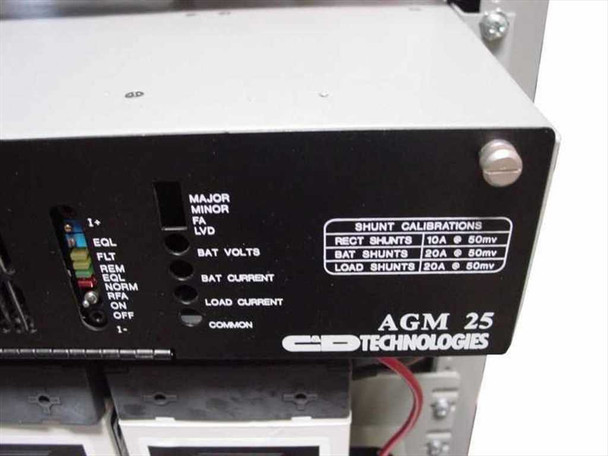

  • C&D Technologies AGM 25 controller module front panel showing alarm indicators, BAT VOLTS, BAT CURRENT, LOAD CURRENT terminals and shunt calibration label
  • C&D Technologies product label showing DESC: AGM25L-1 TRAY CEMF GMT G/T, MODEL: 110.4025.24, COLOR: A, and serial number
$545.00
Was: $1,495.00
Current Stock: 1

Sold Out

Description

C&D Technologies AGM25L-1 110.4025.24 48V Power Plant CEMF Cell 12V 50Ah

48V DC telecom power plant with integrated CEMF Cell controller module. Configured as a four-cell 12V AGM battery string in series, delivering 48V DC output for central office and telecom equipment backup power applications.

Specifications & What's Included

  • Output: 48V DC
  • Battery Configuration: Four Guardian SafeGuard 12V 50Ah AGM cells in series
  • Controller: CEMF Cell with dual-cell monitoring (Cell 1 & Cell 2)
  • Shunt Calibrations: Rect 10A@50mv, Bat 20A@50mv, Load 20A@50mv
  • Alarm Outputs: Major, Minor, FA, LVD
  • Main Fuse: 5 Amp
  • Form Factor: Open frame rack/floor-standing cabinet
  • Manufactured in the United States

Applications

Used in telecom central offices and equipment rooms requiring uninterruptible 48V DC backup power. These systems support legacy and modern telecommunications infrastructure, providing regulated power during AC mains failure. The CEMF Cell controller manages float charging, battery health monitoring, and load switching across multiple cell groups for distributed power architectures common in carrier-grade deployments.

Condition: Used
This C&D Technologies AGM25L-1 48V Power Plant (model 110.4025.24) has been inspected and is in good condition. The unit includes the CEMF Cell controller module and four Guardian SafeGuard DGS12-50F 12V-50Ah AGM batteries. The front panels show normal cosmetic wear consistent with prior service use. All indicator lights, terminal blocks, and wiring appear intact as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
C&D Technologies
Model:
AGM25L-1
MPN:
110.4025.24
Secondary Model:
110.4025.24
SKU:
15614
Type:
48V DC Telecom Power Plant
Output Voltage:
48V DC
Battery Type:
AGM (Absorbed Glass Mat)
Battery Configuration:
4 x 12V 50Ah (series for 48V)
Battery Model:
Guardian SafeGuard DGS12-50F 12V-50Ah
Controller Module:
CEMF Cell — 2-cell controller (Cell 1 & Cell 2)
Shunt Calibrations:
Rect 10A@50mv, Bat 20A@50mv, Load 20A@50mv
Indicators:
EQL, FLT, REM, NORM, RFA, ON, OFF per cell
Alarm Outputs:
Major, Minor, FA, LVD
Fuse:
5 Amp (visible on CEMF Cell front panel)
Wiring Block:
Group A and Group B terminal blocks
Form Factor:
Open Frame Rack / Floor-Standing Cabinet
Color:
A (per label)
Application:
Telecom / Central Office 48V DC Power
Condition:
Used – Inspected
Seller Notes:
Includes CEMF Cell controller and four 12V-50Ah AGM batteries
Country/Region of Manufacture:
United States
Condition Notes:
C&D Technologies AGM25L-1 48V Power Plant (110.4025.24) inspected and in good condition. Includes CEMF Cell controller and four Guardian SafeGuard 12V-50Ah AGM batteries. Normal service wear. Contact us with questions.
View AllClose

Related Products

Related Products

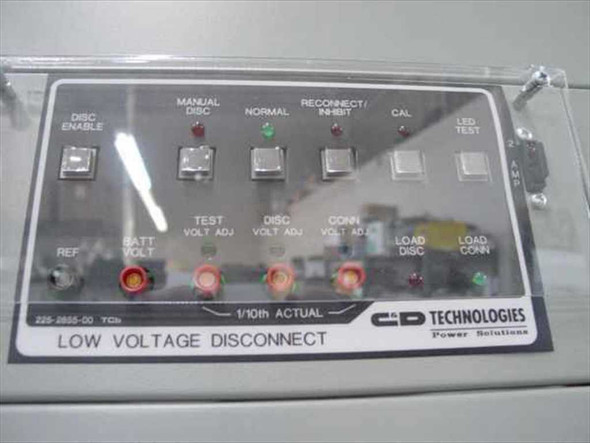

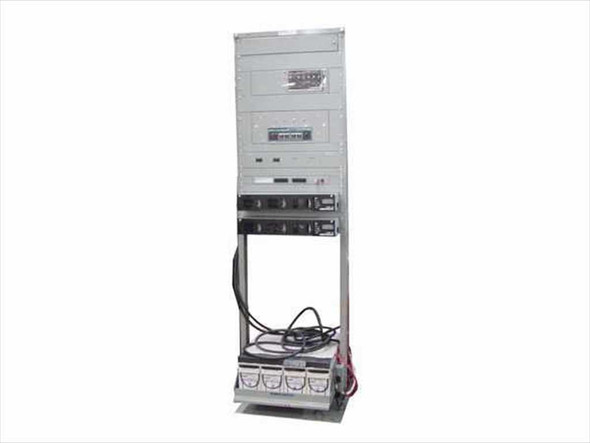

C&D Technologies 110.4025.29 48V Power Plant full rack view showing rectifier modules, LVD, CEMF, and AGM battery string at base C&D Technologies Low Voltage Disconnect (LVD) module front panel with DISC ENABLE, MANUAL DISC, NORMAL, RECONNECT/INHIBIT, CAL, and LED TEST controls
Add to Cart
Quick view

C&D Technologies 110.4025.29 48V Power Plant AGM25L LVD CEMF Disconnect

C&D Technologies

$500.00
Was: $1,500.00
C&D Technologies 110.4025.29 48V Power Plant AGM25L LVD CEMF DisconnectA 48V DC telecom power plant designed for central office and telecom applications. This open-frame, floor-standing unit...
15621
SKU:
15621
Availability:
Usually ships within 1-2 business days.
Weight:
995.00 LBS
Brand:
C&D Technologies
Model:
110.4025.29
MPN:
110.4025.29
Secondary Model:
AGM25L
Type:
48V DC Telecom Power Plant
SKU:
15621
Description Code:
AGM25L:GMTCB24P/LVD/CEMF/DIS
Output Voltage:
48V DC
Rectifier Module:
AGM25 (x2 visible)
Shunt Calibrations:
Rect: 10A@50mv; Bat: 20A@50mv; Load: 20A@50mv
LVD Module:
Low Voltage Disconnect (C&D Technologies 225-2855-00 TCb)
CEMF Module:
Ratelco CEMF Cell, 2-cell, 5A, Seattle WA
Terminal Block:
C&D Technologies Inc. dual group terminal/distribution block
Battery Type:
AGM (Absorbed Glass Mat)
Battery Configuration:
Multi-cell AGM battery string, bottom-mounted in frame
Form Factor:
Open Frame Floor-Standing Rack
Application:
Telecom / Central Office DC Power
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes LVD module, CEMF cell module, terminal distribution block, and AGM battery string
Country/Region of Manufacture:
United States
Condition Notes:
C&D Technologies 110.4025.29 48V Power Plant AGM25L has been inspected and is in good used condition. All major modules present including LVD, CEMF cell, terminal block, and AGM battery string. Normal service wear.

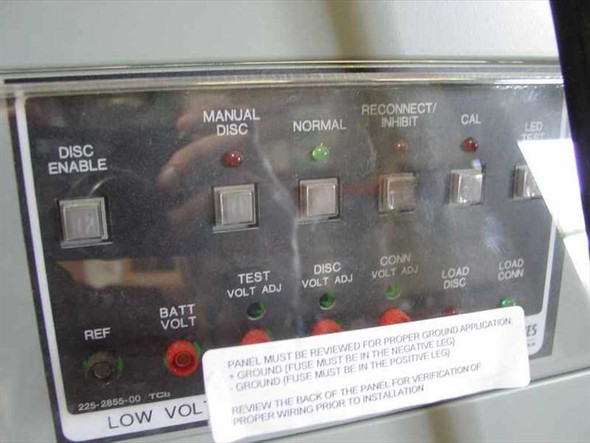

CD Technologies AGM45 48V Power Plant UPS system full rack view with batteries at base and wiring harness CD Technologies AGM45 control panel showing Manual Disc, Normal, Reconnect/Inhibit, Cal buttons and LED indicators with low voltage label
