Description

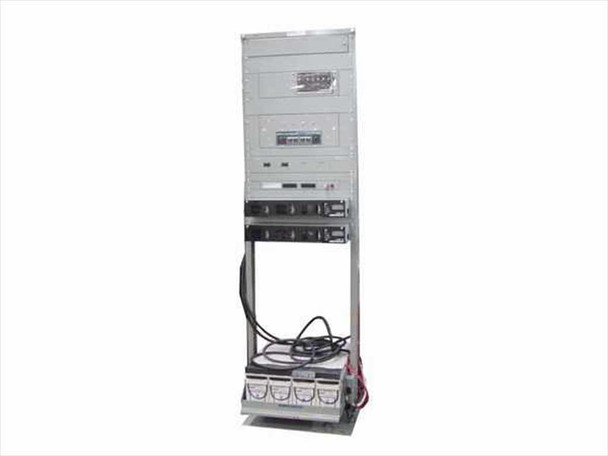

C&D Technologies 110.4025.29 48V Power Plant AGM25L LVD CEMF Disconnect
A 48V DC telecom power plant designed for central office and telecom applications. This open-frame, floor-standing unit provides regulated DC power with battery backup using AGM technology.
Specifications & What's Included
- Output: 48V DC
- Two AGM25 rectifier modules with 10A shunt calibration (50mV)
- Multi-cell AGM battery string, bottom-mounted
- Low Voltage Disconnect (LVD) module – C&D Technologies 225-2855-00 TCb
- CEMF cell module – Ratelco 2-cell, 5A
- C&D Technologies dual group terminal/distribution block
- Battery and load shunt calibrations: 20A @ 50mV
Applications
Used in telecom central offices and similar environments requiring continuous 48V DC power with battery backup. The LVD module protects the battery string from over-discharge, while the CEMF cell manages charging efficiency. Common in legacy and current telecom infrastructure for powering switching equipment, line cards, and DC-powered systems.
Condition: Used
This C&D Technologies 110.4025.29 48V Power Plant (AGM25L) has been inspected and is in good used condition. The frame, rectifier modules, Low Voltage Disconnect module, Ratelco CEMF Cell module, terminal distribution block, and AGM battery string are all present. The unit shows normal wear consistent with prior service use. Cabling is intact and present at the battery base. No obvious physical damage was noted during inspection. Please view our photo set and contact us if you have any questions.
This C&D Technologies 110.4025.29 48V Power Plant (AGM25L) has been inspected and is in good used condition. The frame, rectifier modules, Low Voltage Disconnect module, Ratelco CEMF Cell module, terminal distribution block, and AGM battery string are all present. The unit shows normal wear consistent with prior service use. Cabling is intact and present at the battery base. No obvious physical damage was noted during inspection. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
C&D Technologies |
Model: |
110.4025.29 |
MPN: |
110.4025.29 |
Secondary Model: |
AGM25L |
Type: |
48V DC Telecom Power Plant |
SKU: |
15621 |
Description Code: |

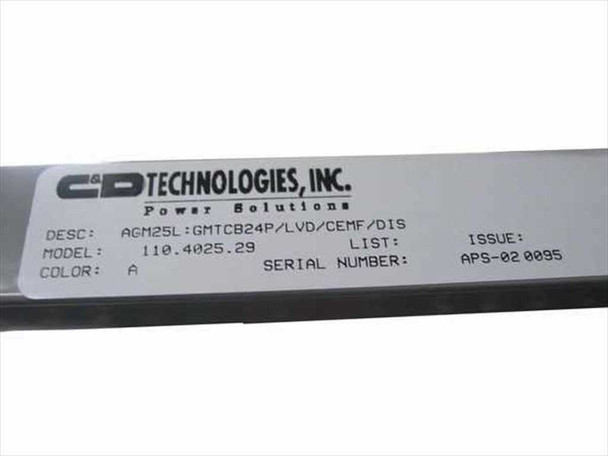

AGM25L:GMTCB24P/LVD/CEMF/DIS |
Output Voltage: |
48V DC |
Rectifier Module: |
AGM25 (x2 visible) |
Shunt Calibrations: |
Rect: 10A@50mv; Bat: 20A@50mv; Load: 20A@50mv |
LVD Module: |
Low Voltage Disconnect (C&D Technologies 225-2855-00 TCb) |
CEMF Module: |
Ratelco CEMF Cell, 2-cell, 5A, Seattle WA |
Terminal Block: |

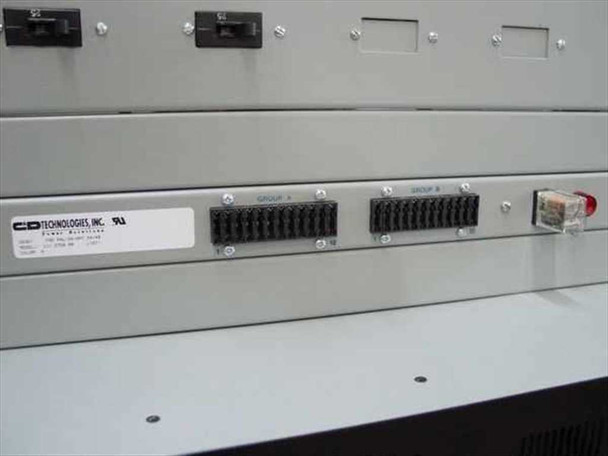

C&D Technologies Inc. dual group terminal/distribution block |
Battery Type: |
AGM (Absorbed Glass Mat) |
Battery Configuration: |

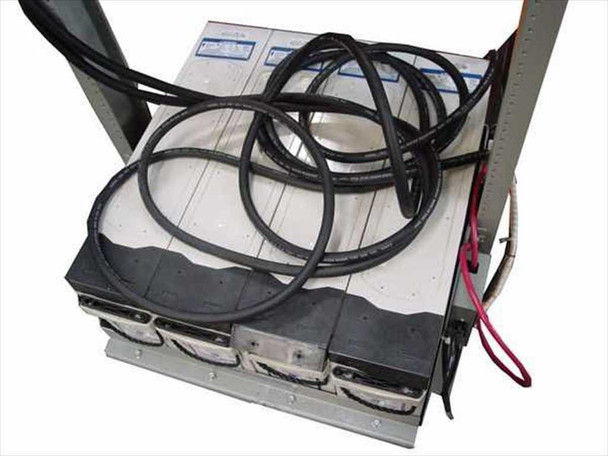

Multi-cell AGM battery string, bottom-mounted in frame |
Form Factor: |
Open Frame Floor-Standing Rack |
Application: |
Telecom / Central Office DC Power |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes LVD module, CEMF cell module, terminal distribution block, and AGM battery string |
Country/Region of Manufacture: |
United States |
Condition Notes: |
C&D Technologies 110.4025.29 48V Power Plant AGM25L has been inspected and is in good used condition. All major modules present including LVD, CEMF cell, terminal block, and AGM battery string. Normal service wear. |
