Shanghai Gearing 1:1 Ratio Indexing Drive 0.75" Honest Series 14-1:1-1-R-0-V5
Shanghai
$230.00Was: $750.00Shanghai Gearing 1:1 Ratio Indexing Drive 0.75" Honest Series 14-1:1-1-R-0-V5 0.75" Shaft Diameter Ratio = 1:1 Type 3152522-001B Condition: UsedThis indexing drive's shaft turns smoothly by hand. Please view out photo set and contact us with...51713- SKU:
- 51713
- Weight:
- 29.00 LBS
$230.00Was: $750.00 -
Advanced Energy 10kW AE RAS Split Inductor Power Supply 40Hz 3152522-001B
Advanced Energy
$918.00Was: $2,000.00Advanced Energy 10kW AE AE RAS Split Inductor Power Supply 40Hz 3152522-001B Condition: UsedWe are unable to test this power supply. Please view out photo set and contact us with any questions.51712- SKU:
- 51712
- Weight:
- 29.00 LBS
$918.00Was: $2,000.00 -
Advanced Energy B5181854DD AE MDX Pinnacle 8kW DC Power Supply 3152352-122B
Advanced Energy AE
$918.00Was: $2,400.00Advanced Energy B5181854DD AE MDX Pinnacle 8kW DC Power Supply 3152352-122B P/N: B5181854DD M/N: 3152352-122B Power Input: Volt: 400 AC Current: 22 Amp Freq: 50/60 Hz Phase-3 Condition: UsedThis item has been inspected and it appears to be in...51709- SKU:
- 51709
- Weight:
- 56.00 LBS
$918.00Was: $2,400.00 -
Flexible Circuit 201878-001 Schottky Bypass Diode CIGS Solar Panel Qty 400
Flexible Circuit
$38.90Was: $500.00Flexible Circuit 201878-001 Schottky Bypass Diode CIGS Solar Panel Qty 400 This listing is for one lot of 400 Schottky bypass diodes supplied as 100 flexible diode ribbons, with 4 diodes per ribbon, packaged in a single molded plastic tray. These flex...51707- SKU:
- 51707
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Flexible Circuit Technologies
- Model:
- 201878-001
- MPN:
- 201878-001
- Type:
- Schottky Bypass Diode Ribbon
- SKU:
- 51707
- Quantity per Lot:
- 400 diodes (100 ribbons × 4 diodes each)
- Packaging Unit:
- 1 plastic tray of 100 ribbons
- Comparable Part Number:
- SMC Diode Solutions SD125SB45B
- Application:
- CIGS Thin-Film Flexible Solar Panel Manufacturing
- Original OEM Customer:
- Dow Solar / Solopower
- Forward Voltage Drop (Vf):
- 0.64V @ 15A
- Maximum Reverse Voltage (Vrrm):
- 45V
- Maximum Forward Current (Imax):
- 15A
- Leakage Current (Ileak):
- 0.4 mA
- Die Size:
- 3.16 mm × 3.18 mm × 0.295 mm
- Ribbon Overall Length:
- 48 cm
- Ribbon Width:
- 12 mm
- Contact Point Length:
- 10 mm
- Contact Point Width:
- 9.5 mm
- Diodes per Ribbon:
- 4
- Lot Number:
- 2016-060 (approx.)
- Date Code:
- 2016.05.06
- Condition:
- New – Original Packaging
- Country/Region of Manufacture:
- China
- Seller Notes:
- Lot of 400 diodes on 100 ribbons in 1 plastic tray; new in original packaging with humidity indicator card.
- Condition Notes:
- Flexible Circuit Technologies 201878-001 Schottky bypass diodes — new, unused, in original factory tray. Lot of 400 diodes on 100 ribbons. Humidity indicator card present and reading safe. Contact pads and flex substrate undamaged.
$38.90Was: $500.00 -
W-Gear NMRV 063 Worm Gear Reducer 70:1 0.12kW Hons Motor YW-5624 380VAC 3-Phase
W Gear
$148.00Was: $500.00W-Gear NMRV 063 Worm Gear Reducer 70:1 0.12kW Hons Motor YW-5624 380VAC 3-Phase Overall Dimensions: 15" x 11" x 7" -- 28 LBS Condition: UsedThis used worm gear has been inspected and appears to be in good condition. It was pulled from a working...51702- SKU:
- 51702
- Weight:
- 35.00 LBS
$148.00Was: $500.00 -
W Gear NMRV W-Gear type Indexing Drive with Hons Motor YS-802-4
W Gear
$198.00Was: $400.00W-Gear type NMRV Indexing Drive with Hons Motor YS-802-4 Condition: UsedThis item is used. Please view our photo set and contact us with any questions.51701- SKU:
- 51701
- Weight:
- 38.00 LBS
$198.00Was: $400.00 -
Indexing Drive Table 25.180.1SRBH2 3HP 2.2KW 3-Phase Motor CD DVD Carousel
Heavy
$918.00Was: $4,000.00Indexing Drive Table 25.180.1SRBH2 3HP 2.2KW 3-Phase Motor CD DVD Carousel Rotary indexing drive table with integrated 3-phase induction motor, removed from CD/DVD silkscreen printer carousel equipment. Designed to position and rotate work platens...51699- SKU:
- 51699
- Availability:
- Usually ships within 3-5 business days; freight shipment required due to size and weight.
- Weight:
- 1,135.00 LBS
- Brand:
- Unknown / Label Partially Obscured
- Model:
- 25.180.1SRBH2
- MPN:
- 25.180.1SRBH2
- Type:
- Rotary Indexing Drive Table with Motor
- SKU:
- 51699
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair; pulled from CD/DVD silkscreen printer carousel
- Motor Type:
- 3-Phase Induction Motor
- Motor Model / Type Code:
- AEVF
- Motor Output:
- 3 HP / 2.2 KW
- Motor Frame:
- 100L
- Voltage:
- 220/380V
- Amperage:
- 9.0/5.2A (Delta) / 8.0/4.6A (Star)
- Phase:
- 3-Phase
- Frequency:
- 50/60 Hz
- Motor RPM:
- 1430 (50Hz) / 1720 (60Hz)
- Motor Poles:
- 4
- Service Factor:
- 1.0
- Rotor Class:
- C
- Insulation Class:
- E
- IP Rating:
- IP-44
- Motor Bearings:
- 6206ZZ, 6305ZZ
- Motor Design Standard:
- JIS-C4010
- Motor Date:
- 1998
- Application:
- CD/DVD Silkscreen Printer Carousel; Rotary Indexing
- Country/Region of Manufacture:
- Taiwan (nameplate in Chinese/Traditional script)
- Condition Notes:
- Tested & working. Heavy-duty indexing drive table w/ 3HP 3-phase motor. Surface rust/corrosion on rotary table; paint wear on gearbox housing. Industrial-grade unit.
$918.00Was: $4,000.00 -
Young 26800 Meteorological Translator Weather Station McLean T150116G120 AC
Young
$3,000.00Was: $6,000.00Young 26800 Meteorological Translator Weather Station McLean T150116G120 AC Industrial meteorological data acquisition system housed in a 2-cabinet array with integrated cooling. The Young 26800 translator processes inputs from multiple weather sensors...51698- SKU:
- 51698
- Availability:
- Usually ships within 3-5 business days due to size and freight requirements.
- Weight:
- 470.00 LBS
- Brand:
- Young (RM Young)
- Model:
- 26800
- MPN:
- 26800
- Type:
- Meteorological Translator / Weather Monitoring Station
- SKU:
- 51698
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- 2-cabinet array; McLean T150116G120 enclosure AC included
- Country/Region of Manufacture:
- USA
- Input Power:
- 10-30 VDC, 4W
- Sensor Inputs:
- Wind, temperature, precipitation, humidity, frequency, voltage, current loop, serial
- Communication Ports:
- COM1, COM2 (visible on terminal block label)
- Output Channels:
- OUT1, OUT2, OUT3, OUT4 (visible on terminal block)
- Programming Interface:
- PC software or front panel controls
- Display:
- Front panel digital display
- Terminal Type:
- Removable screw terminals

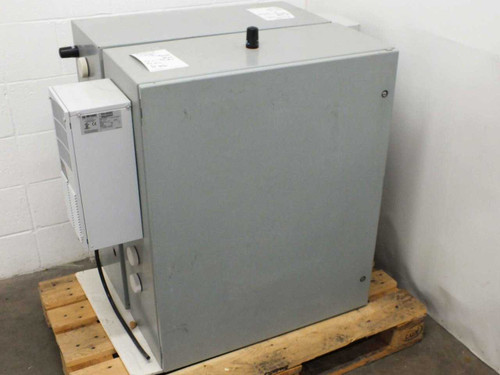

- Enclosure Configuration:
- 2-cabinet array, insulated field enclosures
- Enclosure Cooling Unit Brand:
- McLean Cooling Technology
- Enclosure Cooling Unit Model:
- T150116G120
- AC Unit Volts:
- 100/115V
- AC Unit Hz / Phase:
- 50/60 Hz, Phase 1
- AC Unit FLA:
- 3.0 / 3.6A
- AC Unit Refrigerant:
- R134A
- AC Unit Cooling Capacity:
- 800 BTU
- AC Unit Heating Capacity:
- 235W
- AC Unit Pressure High/Low (PSIG):
- High: 350, Low: 150
- Application:
- Outdoor meteorological data acquisition and monitoring
- Form Factor:
- Floor-standing 2-cabinet array on pallet
- Condition Notes:

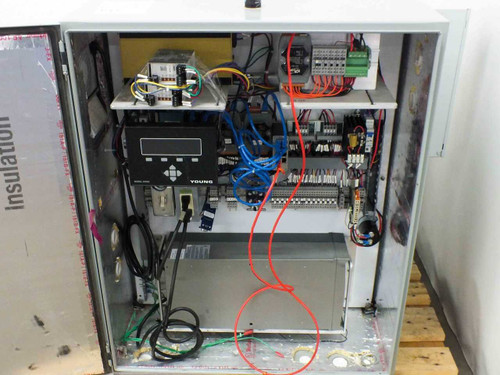

- Young 26800 Meteorological Translator weather station, 2-cabinet array. Interior components intact. McLean T150116G120 AC unit mounted. Exterior shows typical field use wear. Untested. See photos.
$3,000.00Was: $6,000.00
