Description
Young 26800 Meteorological Translator Weather Station McLean T150116G120 AC
Industrial meteorological data acquisition system housed in a 2-cabinet array with integrated cooling. The Young 26800 translator processes inputs from multiple weather sensors and outputs formatted data via serial and analog channels.
Specifications & What's Included

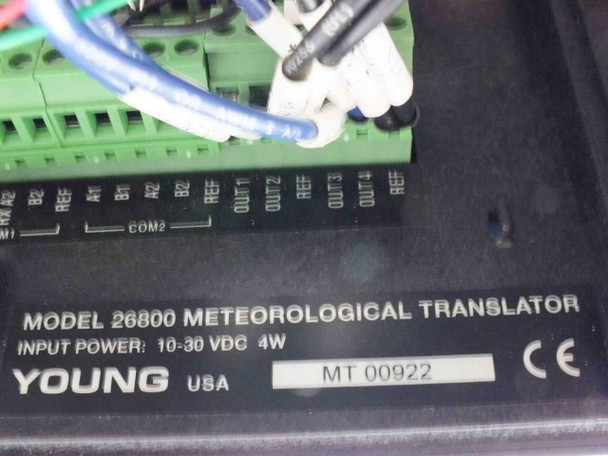

- Model: Young 26800 Meteorological Translator
- Enclosure: McLean T150116G120 AC cooling unit (100/115V, 50/60Hz, 800 BTU cooling capacity)
- Power Input: 10-30 VDC, 4W
- Sensor Inputs: Wind, temperature, precipitation, humidity, frequency, voltage, current loop, serial
- Communication: COM1, COM2 serial ports; OUT1-OUT4 output channels
- Interface: Front panel digital display and screw terminals; PC software compatible
- Refrigerant: R134A; High/Low pressure 350/150 PSIG
Applications
Meteorological translators like this model are used for outdoor weather monitoring networks, environmental data acquisition systems, and industrial process monitoring where multiple sensor types require centralized processing and output. The Young 26800 accepts data from anemometers, thermometers, rain gauges, and humidity sensors, converting readings into standardized serial and analog formats for integration with SCADA systems, data loggers, or remote telemetry platforms.

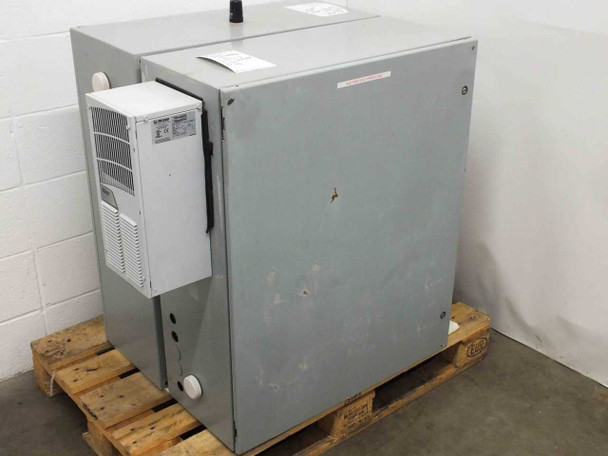

Young 26800 Meteorological Translator 2-cabinet monitoring station array in used condition. This professional-grade weather station system features intact interior components including wiring, terminal blocks, relay components, transformer, and the Young 26800 translator module. The McLean Cooling Technology T150116G120 Electronic Enclosure Air Conditioner is mounted on the left cabinet and appears physically complete. The exterior cabinets display typical wear consistent with field or storage use, including some surface scuffing and marks on the enclosure panels. Unit has not been tested or powered at our facility; please review photos carefully and contact us with questions before purchasing.
Warranty Information
Additional Information
Brand: |
Young (RM Young) |
Model: |
26800 |
MPN: |
26800 |
Type: |
Meteorological Translator / Weather Monitoring Station |
SKU: |
51698 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
2-cabinet array; McLean T150116G120 enclosure AC included |
Country/Region of Manufacture: |
USA |
Input Power: |
10-30 VDC, 4W |
Sensor Inputs: |
Wind, temperature, precipitation, humidity, frequency, voltage, current loop, serial |
Communication Ports: |
COM1, COM2 (visible on terminal block label) |
Output Channels: |
OUT1, OUT2, OUT3, OUT4 (visible on terminal block) |
Programming Interface: |
PC software or front panel controls |
Display: |
Front panel digital display |
Terminal Type: |
Removable screw terminals |
Enclosure Configuration: |
2-cabinet array, insulated field enclosures |

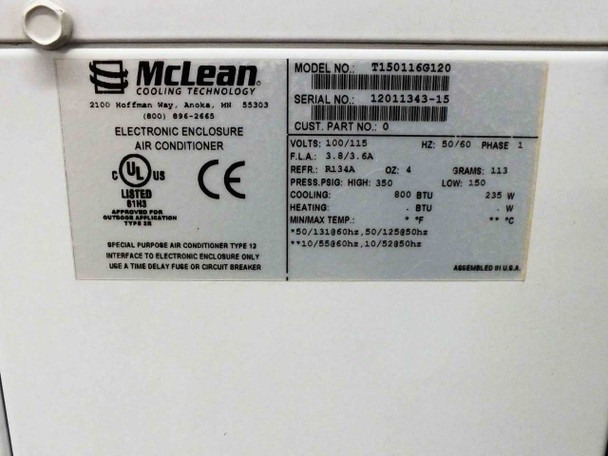

Enclosure Cooling Unit Brand: |
McLean Cooling Technology |
Enclosure Cooling Unit Model: |
T150116G120 |
AC Unit Volts: |
100/115V |
AC Unit Hz / Phase: |
50/60 Hz, Phase 1 |
AC Unit FLA: |
3.0 / 3.6A |
AC Unit Refrigerant: |
R134A |
AC Unit Cooling Capacity: |
800 BTU |
AC Unit Heating Capacity: |
235W |
AC Unit Pressure High/Low (PSIG): |
High: 350, Low: 150 |
Application: |
Outdoor meteorological data acquisition and monitoring |
Form Factor: |
Floor-standing 2-cabinet array on pallet |
Condition Notes: |
Young 26800 Meteorological Translator weather station, 2-cabinet array. Interior components intact. McLean T150116G120 AC unit mounted. Exterior shows typical field use wear. Untested. See photos. |
