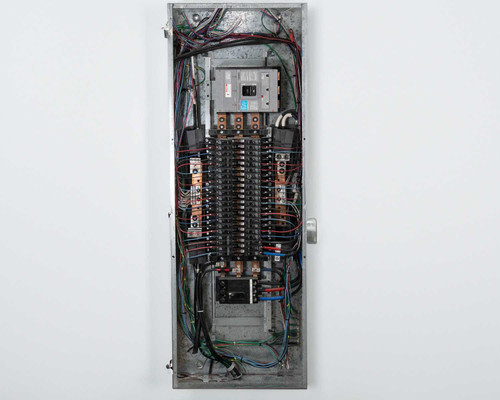

  • Siemens S1C42JX400CBS panel board front view with door closed, full enclosure visible Siemens S1C42JX400CBS panel board interior view with door open showing main breaker and branch circuits with wiring installed

    Siemens S1C42JX400CBS Panel Board 208Y/120V 3Ph 4W 400A JXD63B400 SBD68

    Siemens

    $3,200.00
    Was: $6,400.00
    Siemens S1C42JX400CBS Panel Board 208Y/120V 3Ph 4W 400A JXD63B400 SBD68 Lighting and Appliance Branch Circuit Panelboard rated 400A at 208Y/120V, 3-phase, 4-wire. This Siemens panel provides branch circuit distribution and protection for commercial and...
    52956
    SKU:
    52956
    Availability:
    Usually ships within 3-5 business days. Please contact us prior to purchase for freight shipping arrangements on this large item.
    Weight:
    279.00 LBS
    Brand:
    Siemens
    Model:
    S1C42JX400CBS
    MPN:
    S1C42JX400CBS
    Type:
    Lighting and Appliance Branch Circuit Panelboard
    SKU:
    52956
    Enclosure / Box Model:
    SBD68 – 24WD Type 1 Box w/o Ground Bus
    Main Circuit Breaker:
    JXD63B400 – 400A, 3-Pole, 600V Max (Sentron Series)
    Secondary Circuit Breaker:
    QJ23B200 – 200A, 3-Pole, 240VAC
    Branch Breaker Model:
    B120 Interrupter Switch (Qty 42), 1-Pole & 2-Pole
    Branch Breaker Ratings:
    20A and 30A
    Voltage Rating:
    208Y/120V
    Amperage Rating:
    400A
    Phase:
    3-Phase
    Wire Configuration:
    4-Wire
    Number of Circuits:
    42
    Enclosure Type:
    NEMA Type 1 (Indoor)
    Dimensions (L x W x H):
    8" x 24" x 68"
    Main Breaker Magnetic Adj Range:
    2000–4000A
    Manufacture Date:
    10/29/98 (per catalog label)
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Complete panel with main breaker, secondary breaker, and 42 branch circuits installed
    Country/Region of Manufacture:
    United States
    Standards / Certifications:
    NEC Article 384-14 and 384-15; CE marked main breaker
    Form Factor:
    Floor-Standing / Wall-Mount Enclosure
    Condition Notes:
    This Siemens S1C42JX400CBS 3-Phase Panel Board was pulled from a working environment where it was actively in service. The unit has been inspected and appears to be in good used condition overall.
    $3,200.00
    Was: $6,400.00
  • Siemens S4C60JX400FBS Type S4 Panelboard – front exterior view, door closed, gray enclosure Siemens S4C60JX400FBS Panelboard – interior view with door open showing main breaker and branch breakers

    Siemens S4C60JX400FBS Panelboard 208Y/120V 3-Phase 4W 400A Type S4

    Siemens

    $4,900.00
    Was: $12,600.00
    Siemens S4C60JX400FBS Panelboard 208Y/120V 3-Phase 4W 400A Type S4 Type S4 electrical panelboard rated for 400A service at 208Y/120V, 3-phase, 4-wire configuration. Functions as main distribution point for branch circuit protection in commercial and...
    52955
    SKU:
    52955
    Availability:
    Usually ships within 3-5 business days due to size and freight requirements.
    Weight:
    340.00 LBS
    Brand:
    Siemens
    Model:
    S4C60JX400FBS
    MPN:
    S4C60JX400FBS
    Type:
    Electrical Panelboard
    SKU:
    52955
    Panelboard Type:
    Type S4
    Sales Order (S.O.):
    60-16239-A00
    System Voltage:
    208Y/120V
    Phase:
    3-Phase
    Wires:
    4W (4-Wire)
    Amperage Rating:
    400A
    Frequency:
    60 Hz
    Main Breaker Model:
    Siemens JXD63B400
    Main Breaker Rating:
    400A, 600V, 3-Pole, Type JXD6-A
    Main Breaker Series:
    Siemens Sentron Series
    Branch Breaker Model:
    QJ23B200
    Branch Breaker Rating:
    200A, 240VAC, 3-Pole
    Branch Breaker Quantity:
    3
    UL Listing:
    UL Listed – Class CTL Panelboard, No. FZ 254805
    Date:
    06/07/99
    Customer Marking:
    HA
    Location:
    C
    Country/Region of Manufacture:
    United States
    Manufacturer:
    Siemens Energy & Automation, Atlanta, GA
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Includes Siemens JXD63B400 main breaker and (3) QJ23B200 200A branch breakers
    Condition Notes:
    This Siemens S4C60JX400FBS Type S4 Panelboard has been inspected and is in good used condition. The unit was pulled from a working environment where it was previously in active service.
    $4,900.00
    Was: $12,600.00
