Description
Katko KEM-316UL Manual Motor Controller 16A 600V 10kA Type 4X Disconnect
The Katko KEM-316UL is an enclosed manual motor controller rated for 16 amps at 600V AC with a 10kA short-circuit rating. Housed in a NEMA Type 4X enclosure, it features a rotary red/yellow handle actuator and is certified as suitable for use as a motor disconnect switch. The unit is UL Listed and complies with IEC 60947-3.
Specifications & What's Included
- Model: Katko KEM-316UL
- Type: Manual Motor Controller / Motor Disconnect Switch
- Current Rating: 16A
- Voltage Rating: 600V AC
- Short Circuit Rating: 10kA at 600VAC
- Enclosure Rating: NEMA Type 4X
- Wire Range: 14–8 AWG
- Terminal Torque: 16 lb·in
- Temperature Rating: 75°C conductors
- Actuator: Red rotary handle with ON/OFF markings

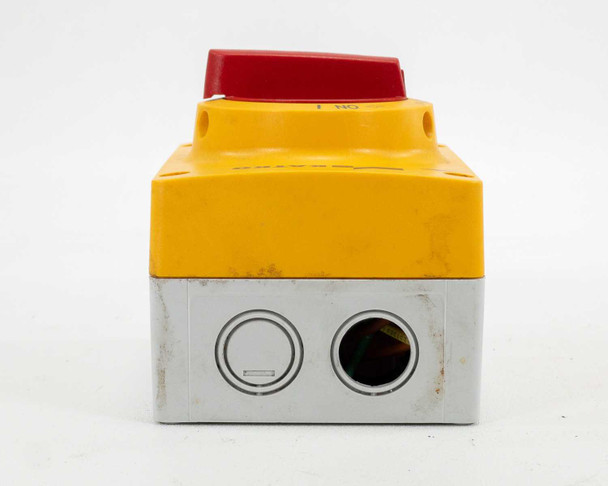

- Conduit Entry: Two knockouts on bottom of enclosure
- Standards: IEC 60947-3, UL Listed, CE Marked
- Country of Manufacture: Finland
- Unit only — no accessories included
Applications
Manual motor controllers like the Katko KEM-316UL serve as a local means of starting, stopping, and isolating motors in industrial control panels, machinery, and process equipment. The Type 4X enclosure rating makes this unit suitable for indoor and outdoor applications where protection against dust, water, and corrosion is required — commonly seen in food processing, chemical, and washdown environments. Its certification as a motor disconnect satisfies NEC requirements for a lockable means of isolation at or near the motor, making it a standard component in machine tool panels, conveyor systems, pump stations, and PLC-controlled equipment enclosures. Katko is a Finnish manufacturer with a long history of producing rotary switches and disconnects for demanding industrial applications, and the KEM series is a well-established line used across industrial automation and building services installations worldwide.
This Katko KEM-316UL Manual Motor Controller has been inspected and is in good used condition. It was pulled from a PLC control room during a facility vacate. The yellow enclosure and red rotary handle show minor surface scuffing and dirt typical of panel use. The rear enclosure panel shows some scuff marks and light soiling consistent with its installation history, but the unit is structurally intact with no cracks or damage observed. The rating plate on the side is fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Katko |
Model: |
KEM-316UL |
MPN: |
KEM-316UL |
Type: |
Manual Motor Controller / Motor Disconnect Switch |
SKU: |
52950 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from a PLC control room. No accessories included. |
Country/Region of Manufacture: |
Finland |
Current Rating: |
16A |
Voltage Rating: |
600V AC |
Short Circuit Rating: |
10kA at 600VAC |
Enclosure Rating: |
NEMA Type 4X |
Wire Range: |
14–8 AWG |
Terminal Torque: |
16 lb·in |
Temperature Rating: |
75°C |
Standards: |
IEC 60947-3, UL Listed |
Function: |
Suitable as Motor Disconnect |
Actuator Type: |
Rotary Handle (Red/Yellow) |
Form Factor: |
Enclosed, Surface Mount |
Power Requirements: |
600V AC, 50/60Hz |
Condition Notes: |
Katko KEM-316UL Manual Motor Controller, used, inspected and in good condition. Pulled from a PLC control room during a facility vacate. Minor surface scuffing on enclosure consistent with panel use. Structurally intact. |
