Carl Zeiss H-Pi Max Erb H-Stand Trinocular Semiconductor Microscope 8 Inch Wafer

Carl Zeiss H-Pi Max Erb H-Stand Trinocular Semiconductor Microscope 8 Inch Wafer

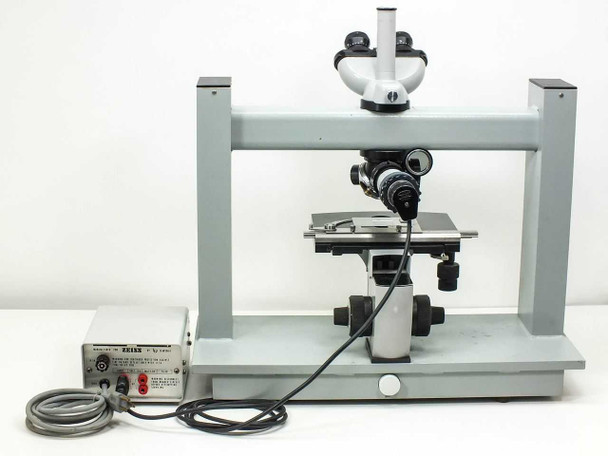

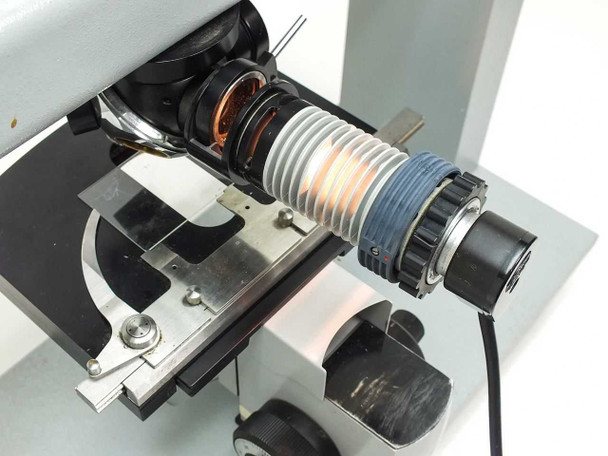

This system pairs a Carl Zeiss H-Pi trinocular microscope body (manufactured in West Germany) with a Max Erb Instrument Company H-Stand gantry frame designed to accommodate large semiconductor wafers up to 8 inches in diameter. The H-Stand configuration suspends the microscope above a wide, open stage area, providing the clearance and working distance needed to inspect full-size 200mm wafers without obstruction. A Carl Zeiss 910112 6V/30W illuminator is included and has been tested — the lamp and bulb are confirmed functional. Note: the fine focus adjustment knob is not working; the coarse focus knob operates normally. Eyepieces and objectives are not included.

Specifications & What's Included

• Microscope body: Carl Zeiss H-Pi — Made in West Germany

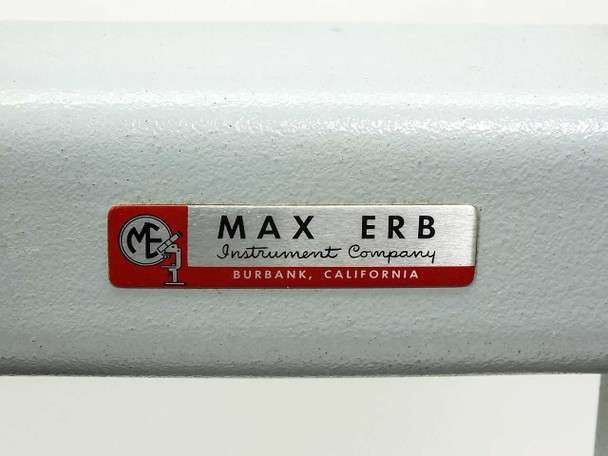

• H-Stand / gantry frame: Max Erb Instrument Company, Burbank, California

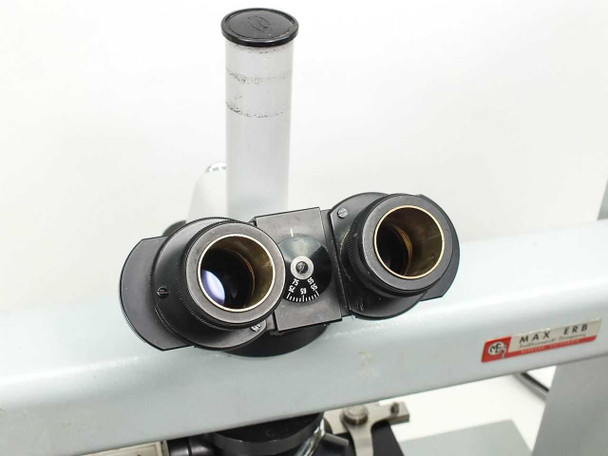

• Head type: Trinocular (two eyepiece tubes + one camera/photo port)
• Eyepiece tube diameter: 23mm

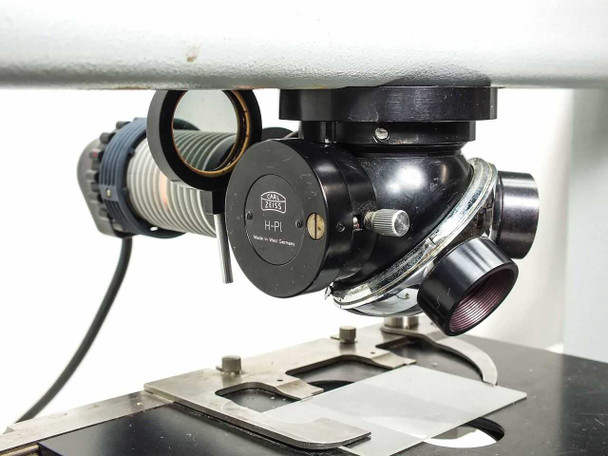

• Nosepiece: Four-position objective turret (no objectives included)

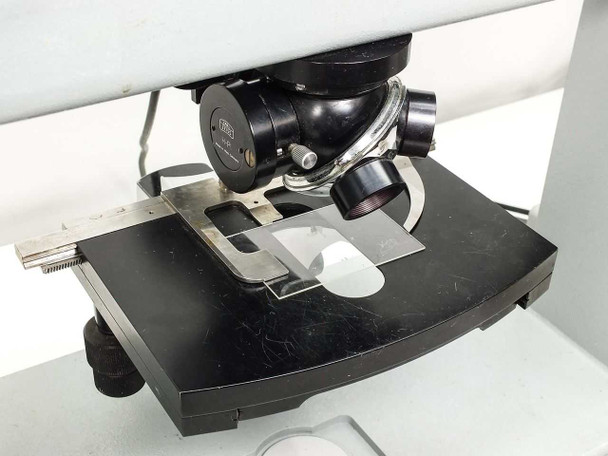

• Stage: Large flat stage configured for semiconductor wafers up to 8 inches (200mm)

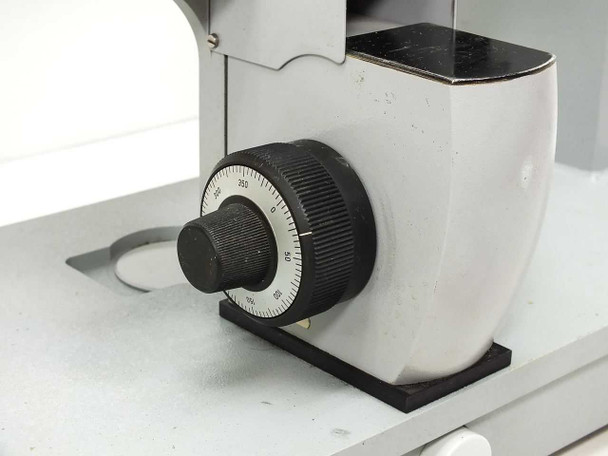

• Coarse focus: Operational — calibrated dial knob with graduated scale, over 25mm vertical travel
• Fine focus: Not functioning — knob does not operate
• Light source: Carl Zeiss model 910112
• Light source rating: 6 Volt, 30 Watt
• Light source status: Tested good — lamp and bulb confirmed functional

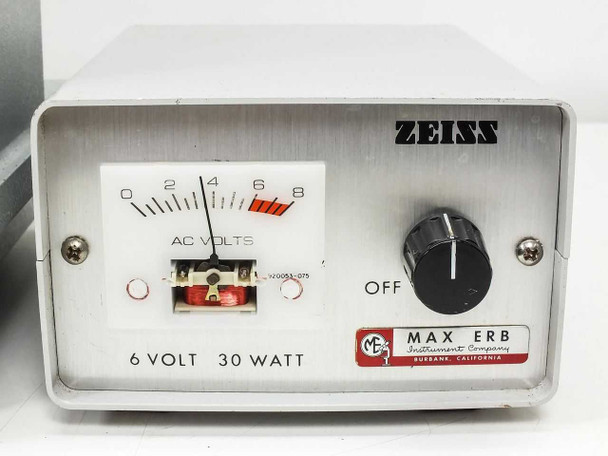

• Light source note: Analog AC Volts meter present; protective meter cover is missing
• Eyepieces: Not included
• Objectives: Not included
• Microscope overall dimensions: approximately 20 × 10 × 20 inches
• Light source overall dimensions: approximately 8 × 5.5 × 3.5 inches

Applications
