Description
Binocular Microscope Head Block Adjustable Eyepieces IPD Scale Wafer Prober

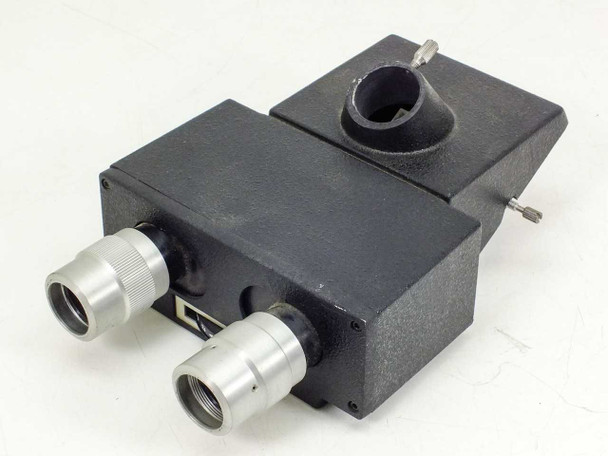

Binocular microscope head block assembly designed for semiconductor wafer inspection and probing applications. Features two adjustable eyepiece tubes with interpupillary distance (IPD) adjustment range of 68–73 mm, plus a swivel photo port with internal beamsplitter prism for camera attachment.
Specifications & What's Included
- Head Type: Binocular with 2 adjustable eyepiece tubes
- IPD Range: 68–73 mm
- Swivel photo port with beamsplitter prism
- Matte black cast body
- Compatible with Rucker & Kolls 682 Semi-Auto Wafer Prober
- Head block only; eyepieces not included
Applications
This head block type is used in semiconductor wafer probing stations and inspection microscopy systems for magnified visual examination of wafer surfaces, probe contact points, and device features. The Rucker & Kolls 682 is a standard semi-automated wafer prober platform used in semiconductor testing and failure analysis. The dual eyepieces support simultaneous observation, while the photo port accommodates high-resolution imaging documentation of wafer conditions and probe alignment.
This binocular microscope head block has been inspected and is in good used condition. It was pulled from a working Rucker & Kolls 682 Semi-Automatic X/Y Wafer Prober where it was in active use. The cast black body shows light surface wear typical of lab use, and the eyepiece tubes and swivel photo port are intact and free of visible damage. The IPD scale and internal beamsplitter prism are present and appear undamaged in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Binocular Microscope Head Block |
Type: |
Binocular Microscope Head Block |
SKU: |
46495 |
Condition: |
Used – Pulled from Working Environment |
Head Type: |
Binocular |
IPD Range: |
68–73 mm |
Eyepiece Ports: |
2 adjustable eyepiece tubes |
Additional Port: |
1 swivel/photo port with beamsplitter prism |
Beamsplitter: |
Internal prism beamsplitter, swivel-adjustable |
Body Finish: |
Matte black cast body |
Compatible With: |
Rucker & Kolls 682 Semi-Auto Wafer Prober |
Application: |
Semiconductor wafer probing, inspection microscopy |
Seller Notes: |
Head block only; no eyepieces included. Pulled from R&K 682 wafer prober. |
Form Factor: |
Benchtop / Component |
Condition Notes: |
Used binocular microscope head block pulled from a working Rucker & Kolls 682 wafer prober. Inspected and in good condition. Light surface wear; optics and swivel port intact. Please view photos and contact us with questions. |
