Caddock MS315 Power Film Resistor 500K Ohm 0.5 MEG 1% Tolerance Type MS

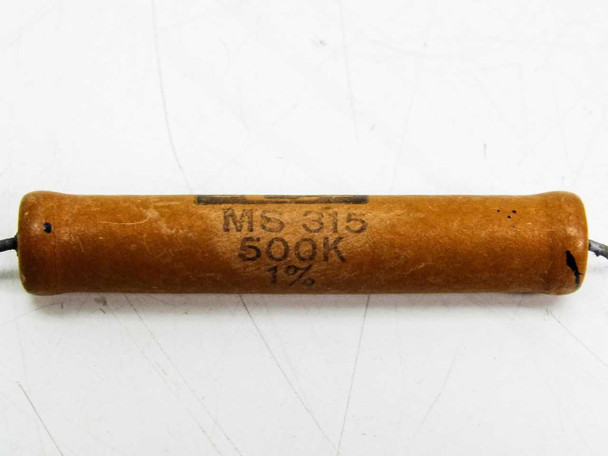

This is a Caddock MS315 Type MS Power Film Resistor rated at 500K Ohm (0.5 MEG) with a 1% tolerance. The MS series from Caddock Electronics uses a film-on-ceramic construction encased in a molded cylindrical body, offering stable resistance characteristics across a wide operating range. The resistor features axial wire leads suitable for through-hole PCB mounting or chassis wiring.
Specifications & What's Included
- Manufacturer: Caddock Electronics
- Model / Series: MS315 (Type MS)
- Resistance Value: 500K Ohm (0.5 MEG)
- Tolerance: 1%
- Construction: Power film resistor, cylindrical molded body
- Lead Style: Axial wire leads
- Lead Length: Approximately 0.25 inches (+/- 0.125 inches)
- Package: Tan/brown cylindrical molded housing
- Quantity: 1 resistor
Applications
Caddock's Type MS power film resistors are used in applications where a compact, high-resistance precision component is needed in a robust package. Common uses include voltage divider networks, high-voltage snubber circuits, bleeder resistors in power supplies, and precision measurement circuits where tight tolerance and stable resistance are important. The MS series is found in laboratory instruments, industrial power electronics, and custom circuit assemblies. Caddock Electronics, based in Victorville, California, has long been recognized in the precision resistor market for film-on-ceramic designs that offer an alternative to wirewound types in applications sensitive to inductance. The 1% tolerance makes this resistor suitable for precision signal conditioning, feedback networks, and analog measurement systems where component matching matters.

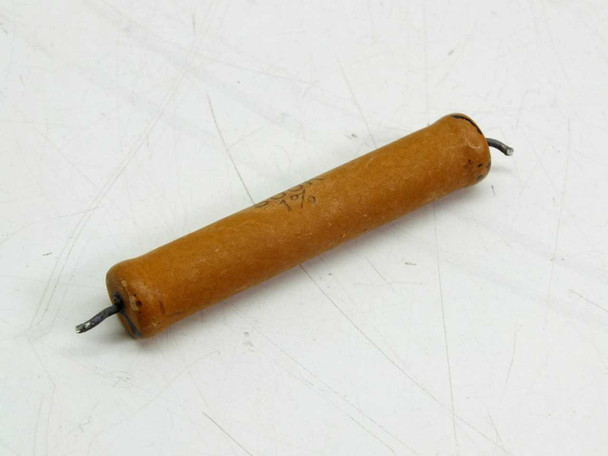

This Caddock MS315 Type MS Power Film Resistor (500K Ohm, 1%) has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The tan molded body shows normal age and handling wear consistent with service use. Lead wires are present and measure approximately 0.25 inches in length (+/- 0.125 inches). No breaks, cracks, or damage to the body or leads are visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Caddock |
Model: |
MS315 |
MPN: |
MS315-500K-1% |
Type: |
Power Film Resistor |
SKU: |
46665 |
Resistance: |
500K Ohm (0.5 MEG) |
Tolerance: |
1% |
Resistor Series: |
Type MS |
Lead Style: |
Axial |
Lead Length: |
Approx. 0.25 in (+/- 0.125 in) |
Package / Case: |
Cylindrical Molded Body |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Single resistor; leads approx. 0.25 in long. Pulled from working environment. |
Condition Notes: |
Caddock MS315 500K Ohm 1% Power Film Resistor. Inspected, good used condition. Pulled from a working environment. Body shows normal age/handling wear. Leads intact at approx. 0.25 in. No damage visible. |
