Description
Caddock MG730 250K Ohm 1% Type MG Power Film Resistor High Voltage Axial
The Caddock MG730 is a Type MG series power film resistor rated at 250K Ohm with 1% tolerance, using an axial-lead construction. The Type MG series is manufactured by Caddock Electronics, a U.S.-based specialist in precision and high-voltage resistor technology. These components are built on a cylindrical ceramic substrate with a resistance film element, housed in a compact axial body with molded end caps and a gold-plated lead wire at one end — a configuration typical of Caddock's MG series designed for high-voltage and high-frequency applications.
Specifications & What's Included
- Manufacturer: Caddock Electronics
- Model / Series: MG730 (Type MG series)
- Resistance: 250K Ohm (250,000 Ohms)
- Tolerance: 1%
- Construction: Power film (thick film) on ceramic substrate
- Lead style: Axial — single gold-plated lead wire visible at one end
- End caps: Molded white polymer end caps

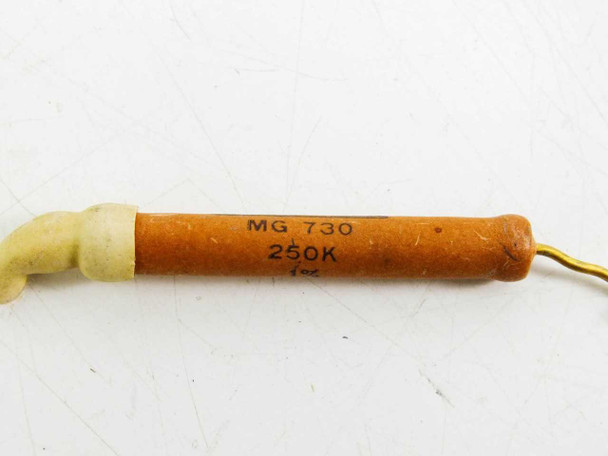

- Body markings: MG 730 / 250K / 1% printed on body (confirmed legible in photos)
- Quantity: 1 resistor
Applications
Caddock Type MG series power film resistors are used in precision, high-voltage, and high-frequency circuit applications where standard carbon or metal film resistors would be inadequate. They appear in voltage dividers, snubber networks, bleeder circuits, probe networks, and sampling circuits within power supplies, high-voltage test equipment, medical electronics, and RF/microwave systems. Caddock's MG series is known in the electronics industry for its low parasitic inductance and capacitance, making it suitable for circuits where component self-resonance at high frequencies is a concern. These parts are used by design engineers, repair technicians, and hobbyists working on precision analog and high-voltage circuitry. The 250K Ohm value and 1% tolerance make this part suited for voltage-divider and signal-conditioning applications where accuracy and stability under varying conditions are required.

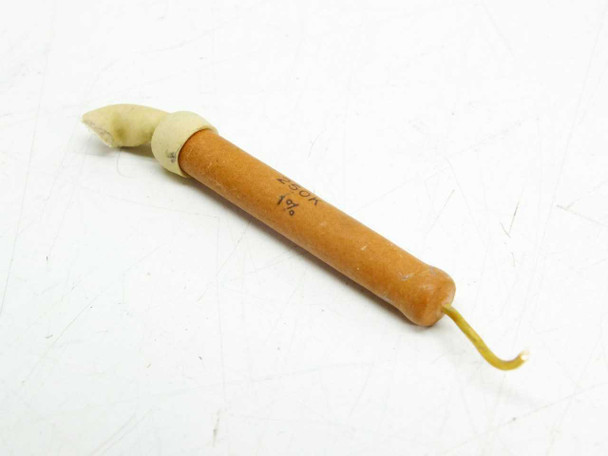

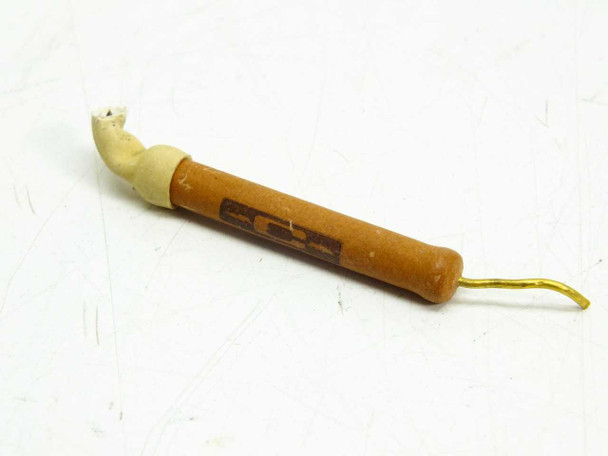

This Caddock MG730 250K Ohm 1% Type MG Power Film Resistor has been inspected and appears to be in good used condition. The body shows light surface soiling typical of a component pulled from service, and the printed markings — MG 730, 250K, 1% — are clearly legible on the body. The axial gold lead wire is intact and undamaged. No visible cracks, burns, or physical damage to the body or end caps. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Caddock Electronics |
Model: |
MG730 |
MPN: |
MG730-250K-1% |
Type: |
Power Film Resistor |
Series: |
Type MG |
Resistance: |
250K Ohm (250,000 Ohms) |
Tolerance: |
1% |
Lead Style: |
Axial |
Technology: |
Power Film (Thick Film) |
Application: |
High Voltage, High Frequency, Precision |
SKU: |
46670 |
Condition: |
Used – Inspected and Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Single resistor, no accessories. Inspected and in good condition. |
Condition Notes: |
Caddock MG730 250K Ohm 1% Power Film Resistor. Inspected and in good used condition. Body markings legible, axial lead intact, no visible damage or burns. Pulled from service. |
