Cadco 12-1000 12-Input Passive RF Combiner 5 MHz–1 GHz Channel Hybrid 1U
The Cadco Systems Model 12-1000 is a passive channel hybrid combiner that consolidates twelve individual RF inputs — from channel processors and modulators — into a single coaxial output. It is a fully passive design requiring no external power, operating across a frequency range of 5 MHz to 1 GHz. A -20 dB test point is provided for signal monitoring without interrupting the combined output.
Specifications & What's Included
- Manufacturer: Cadco Systems (Garland, TX, USA)
- Model: 12-1000
- Type: Passive Channel Hybrid RF Combiner

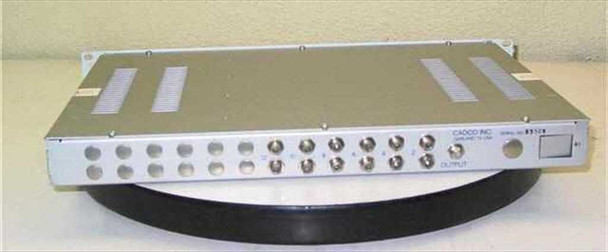

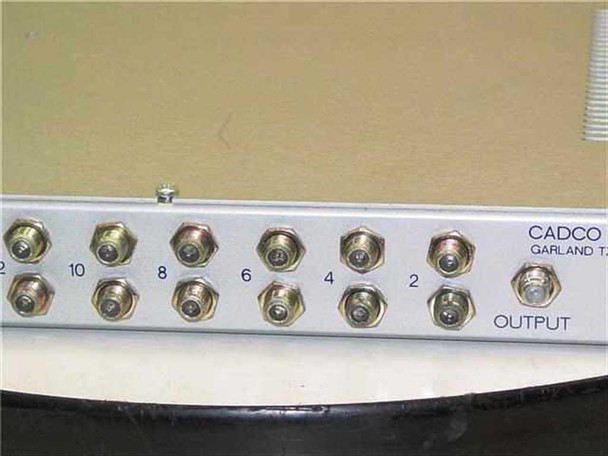

- Number of inputs: 12 (F-type connectors, numbered 2–12 on rear panel)
- Number of outputs: 1 (F-type connector, rear panel)
- Frequency range: 5 MHz to 1 GHz
- Test point: -20 dB
- Power requirement: None — fully passive design

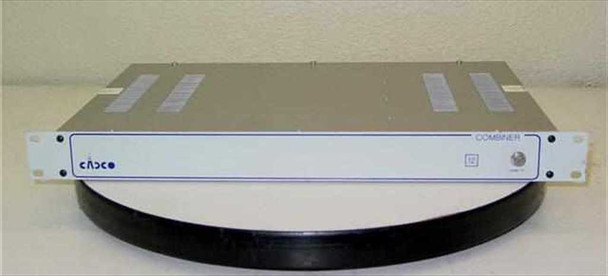

- Form factor: 1U rackmount
- Compatible sibling model: 24-1000 (24-input version, same frequency range)
- Unit only — no cables or accessories included
Applications
The Cadco 12-1000 is used in cable television (CATV) headend systems to combine the RF outputs of multiple channel processors and modulators onto a single coaxial distribution cable. In a typical CATV headend, each channel processor or modulator produces a distinct RF channel; a passive combiner like this aggregates all those channels so they can be distributed downstream as a single composite signal. The passive hybrid design keeps insertion loss predictable and consistent across the full 5 MHz–1 GHz band, making it suitable for both standard and broadband cable plant applications. This type of headend combining equipment was widely deployed in cable system headends from the 1990s into the 2000s and continues to see use in legacy cable infrastructure, small system operators, private cable (SMATV) installations, and hospitality/MDU distribution systems where channel processors and analog modulators remain in service.
This Cadco Systems 12-1000 12-Input Passive RF Combiner has been inspected and appears to be in good used condition. The chassis is clean with only minor surface wear typical of used rack equipment. The rear F-connector input ports and output connector all appear intact with no visible damage. The unit was pulled from a working environment where it was previously in use. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Cadco |
Model: |
12-1000 |
MPN: |
12-1000 |
Type: |
Passive RF Channel Hybrid Combiner |
SKU: |
35159 |
Number of Inputs: |
12 |
Number of Outputs: |
1 |
Frequency Range: |
5 MHz to 1 GHz |
Test Point: |
-20 dB |
Combiner Type: |
Passive Hybrid |
Connector Type: |
F-Type (F-connector) |
Form Factor: |
1U Rackmount |
Application: |
CATV Headend — Channel Processors and Modulators |
Compatible With: |
Channel processors, modulators, CATV headend equipment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only — no cables or accessories included. |
Condition Notes: |
This Cadco Systems 12-1000 Passive RF Combiner has been inspected and is in good used condition. F-connectors appear intact. Pulled from a working environment. Please contact us with any questions. |
