Description
Thomson TH2485B Ku-Band Klystron Tube 17.3-18.1 GHz 12-Channel RF Satcom
Thomson Tubes Electroniques Ku-Band klystron tube for satellite communications RF uplink applications. Operates across 17.3–18.1 GHz with 12 discrete channel frequencies.
Specifications & What's Included
- Model: TH2485B
- Frequency Range: 17.3–18.1 GHz (Ku-Band)

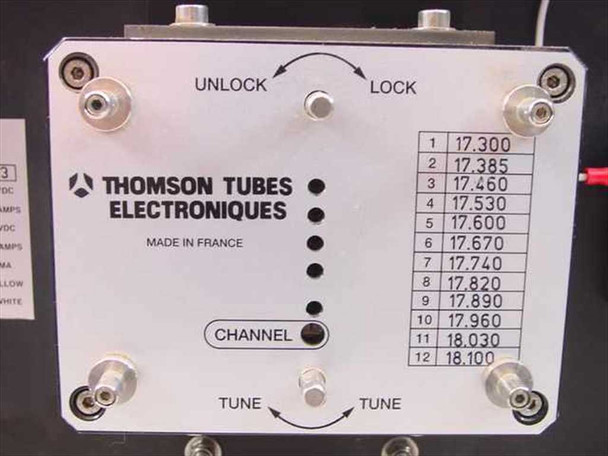

- 12 Channel Frequencies: 17.300, 17.385, 17.460, 17.530, 17.600, 17.670, 17.740, 17.820, 17.890, 17.960, 18.030, 18.100 GHz

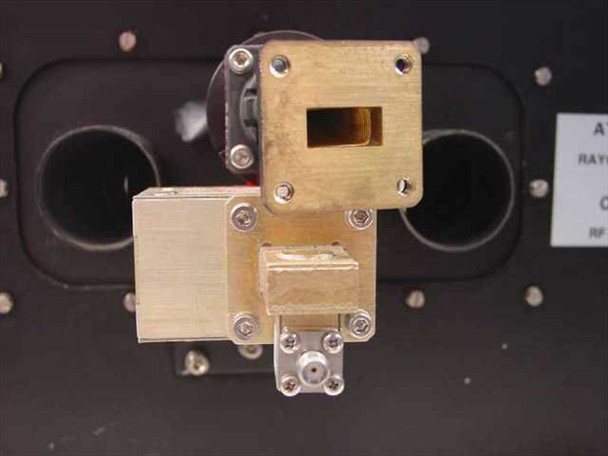

- Output Interface: WR-62 rectangular waveguide (Ku-band)
- Tuning Ports: BNC/coax connectors
- Form Factor: Rack-mount chassis with integral magnet assembly
- Manufactured: France
- Reference: DTE 807
Applications
Klystron tubes of this type were standard power amplification devices in satellite uplink earth stations throughout the Ku-Band satcom era. The TH2485B supported fixed-frequency and channelized RF transmission in commercial and institutional satcom networks. Compatible with standard C-Band and Ku-Band satcom ground equipment architectures using WR-62 waveguide interfaces.
Condition: Used
This Thomson TH2485B Ku-Band klystron tube has been inspected and appears to be in good physical condition. It was pulled from a working satcom environment where it was in active service. Important: the unit has been in storage for some time. Klystron tubes that have sat idle can gas up, and this one will likely need to be brought back up slowly (re-conditioned) before returning to full operation — this is a normal and expected process for klystrons after extended storage, not a defect. The tube is being sold as-is with that caveat clearly noted. Please view our photo set and contact us if you have any questions.
This Thomson TH2485B Ku-Band klystron tube has been inspected and appears to be in good physical condition. It was pulled from a working satcom environment where it was in active service. Important: the unit has been in storage for some time. Klystron tubes that have sat idle can gas up, and this one will likely need to be brought back up slowly (re-conditioned) before returning to full operation — this is a normal and expected process for klystrons after extended storage, not a defect. The tube is being sold as-is with that caveat clearly noted. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Thomson Tubes Electroniques |
Model: |
TH2485B |
MPN: |
TH2485B |
Type: |
Ku-Band Klystron Tube |
SKU: |
31855 |
Frequency Range: |
17.3 – 18.1 GHz |
Number of Channels: |
12 |
Channel Frequencies (GHz): |
17.300, 17.385, 17.460, 17.530, 17.600, 17.670 |
Channel Frequencies 2 (GHz): |
17.740, 17.820, 17.890, 17.960, 18.030, 18.100 |
Band: |
Ku-Band |
Application: |
Satellite Communications (Satcom) RF Uplink |
Reference Document: |
DTE 807 |
Country/Region of Manufacture: |
France |
Form Factor: |
Rack-mount chassis with integral magnet assembly |
Output Interface: |
Rectangular waveguide (WR-62 / Ku-band) |
Connector Type: |
Waveguide RF output; BNC/coax tuning ports |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Tube pulled from working satcom service. May require slow re-conditioning (re-gassing) before full operation. |
Condition Notes: |
Thomson TH2485B Ku-Band klystron tube pulled from working satcom service, inspected, good physical condition. Has been in storage — tube may need slow re-conditioning (re-gassing) before use. Sold as-is with this noted. |
