BOC Edwards Auto 500 NXJ96800 Thermal Resistance Evaporator Coater 210V 60Hz

BOC Edwards

SKU:

45171

Availability:

Freight shipment required — contact us for a shipping quote before ordering.

Weight:

910.00 LBS

Brand:

BOC Edwards

Model:

Auto 500

MPN:

NXJ96800

Type:

Thermal Resistance Evaporator Coater

SKU:

45171

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Missing bell jar, PLC, controller, and software. Sold AS-IS for parts or repair.

Country/Region of Manufacture:

England

Power Requirements:

210V, 60Hz

Form Factor:

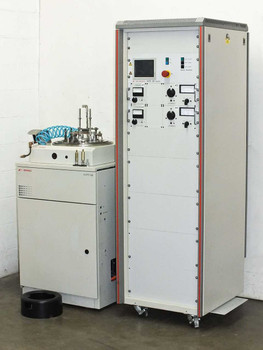

Freestanding — two-cabinet system

Application / Use Case:

Thin film thermal resistance evaporation / vacuum deposition

Turbo Pump Model:

Edwards EXT 255H / ISO 100K

Turbo Pump Part Number:

B75301000XS

Turbo Pump Speed:

180–230 L/S

Turbo Pump Controller:

Edwards EXC 300

Roughing Pump:

Edwards RV12 Rotary Vane Vacuum Pump

RV12 Code Number:

A655-01-903

Foreline Trap:

Edwards FL20K (P/N A13305000)

Oil Mist Filter:

Edwards EMF10 (Code No. A462 26 000)

Vacuum Valve:

Edwards PV25EKA (P/N C41305000)

Vacuum Valve Voltage:

240V, 0.800(T)A fuse

Thyristor Source Controls:

Dual Edwards Thyristor Source Controls (x2)

LT/HT Controller Modules:

Dual Edwards LT/HT Controller Modules (x2)

Transformer:

Matheson EM-1050 (P/N E1-5A101-E200), labeled TX1

Smaller Cabinet Dimensions:

25" W x 24" D x 51" H

Larger Cabinet Dimensions:

26" W x 28" D x 73" H

Shipping Method:

Freight shipment required

Compatible With:

BOC Edwards Auto 500 thin film deposition systems

Condition Notes:

BOC Edwards Auto 500 NXJ96800 Evaporator Coater sold AS-IS for parts/repair. Missing bell jar, PLC, controller, and software. Hardware present but untested, no functionality guaranteed. Freight shipment required.
