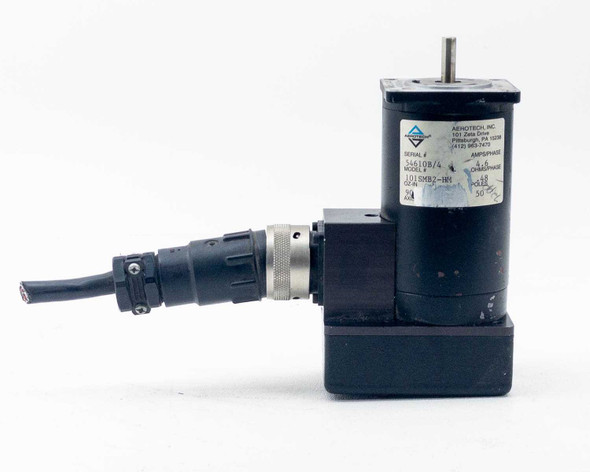

AeroTech 101-SMB2-HM Stepper Motor 25-Pin Connector 4.6A 0.48 Ohm/Phase 50 Poles
AeroTech
$175.00Was: $350.00AeroTech 101-SMB2-HM Stepper Motor 25-Pin Connector 4.6A 0.48 Ohm/Phase 50 PolesNEMA 23 frame stepper motor rated for 4.6A with 50 poles and 0.48 Ohm/Phase resistance. Designed for precision motion...53145- SKU:
- 53145
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- AeroTech
- Model:
- 101-SMB2-HM
- MPN:
- 101-SMB2-HM
- Secondary Model:
- LA23DG8-01R
- Part Number:
- 4,873,462
- SKU:
- 53145
- Type:
- Stepper Motor
- Current Rating:
- 4.6A
- Resistance per Phase (Ohms):
- 0.48 Ohm/Phase
- Number of Poles:
- 50
- Connector Type:
- 25-Pin Military-Style Circular Connector
- Number of Connector Pins:
- 25
- Form Factor:
- NEMA 23 Frame
- Shaft Type:
- Single-ended output shaft
- Application:
- Precision Motion Control, Automation, Positioning
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes detachable 25-pin circular mating connector
- Condition Notes:
- AeroTech 101-SMB2-HM stepper motor, inspected, good used condition. Pulled from a working assembly sold separately. Light surface wear; includes detachable 25-pin circular connector. Contact us with questions.
$175.00Was: $350.00 -
AeroTech ATS-301 Linear Stage Manual Positioner Single Axis Micrometer Table 5x5
AeroTech
$65.00Was: $125.00AeroTech ATS-301 Linear Stage Manual Positioner Single Axis Micrometer Table 5x5Single-axis manual linear positioning stage with micrometer spindle drive. Designed for precise XYZ axis positioning in...18435- SKU:
- 18435
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- AeroTech
- Model:
- ATS-301
- MPN:
- ATS-301
- Type:
- Manual Linear Positioning Stage
- SKU:
- 18435
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is; retract mechanism requires hand pressure on counter-clockwise rotation
- Country/Region of Manufacture:
- United States
- Form Factor:
- Tabletop / Benchtop
- Number of Axes:
- 1
- Travel Range:
- Approximately 0.75 in
- Table Top Dimensions:
- 5 in x 5 in
- Overall Dimensions:
- 6.75 in x 5 in x 1.5 in
- Material:
- Aluminum
- Finish:
- Black Anodize
- Drive Type:
- Micrometer Spindle
- Compatible With:
- Optical tables, lab breadboards, precision instrument setups
- Application:
- Optical alignment, lab positioning, semiconductor, photonics
- Condition Notes:
- AeroTech ATS-301 linear stage sold as-is for parts/repair. Carriage extends normally but does not retract without manual hand pressure applied while turning knob CCW. Return mechanism needs service. Body and micrometer spindle intact.
$65.00Was: $125.00
