Advanced Imaging
-
Advanced Imaging Robo4 5-Channel Force Measurement Controller Load Cell Balance
Advanced Imaging
$300.00Was: $600.00Advanced Imaging Robo4 5-Channel Force Measurement Controller Load Cell BalanceThe Advanced Imaging Robo4 is a five-channel digital force measurement controller designed for polishing head control in...31246- SKU:
- 31246
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Advanced Imaging
- Model:
- Robo4
- MPN:
- ROB04
- SKU:
- 31246
- Type:
- Digital Force Measurement Controller
- Number of Channels:
- 5
- Channel Configuration:
- 2 Balance (Voice Coil 1, 5), 3 Bender (Voice Coil 2, 3, 4)
- Measurement Unit:
- Force (lbs.)
- Display Type:

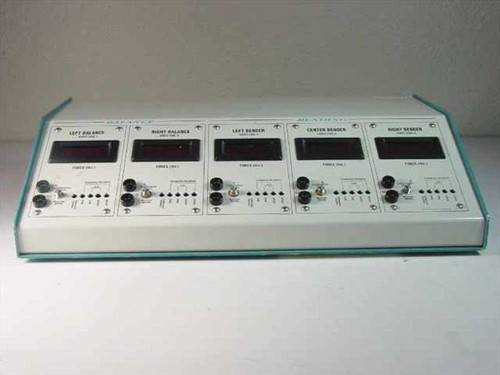

- 5x LED Digital Readout (one per channel)
- Load Cell Inputs:

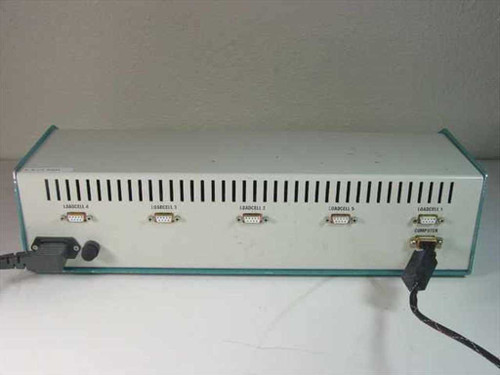

- 5 x DB-9 (LOADCELL 1–5) on rear panel
- Computer Interface:
- RS-232 (DB-9 COMPUTER port on rear panel)
- Connector – Load Cell:
- DB-9 Female x5
- Connector – Computer:
- DB-9 (RS-232)
- Connector – Input Cable:
- D-Sub high-density (ROB04 labeled connector included)
- Controls Per Channel:
- Calibration Mode, Normal Mode, LED/Computer Readout, GAIN, SAN, OFFSET
- Application:
- CMP Polishing Head Force Control / Semiconductor Wafer Polishing
- Form Factor:
- Benchtop / Tabletop Enclosure
- Condition:
- Used – Powers On, Untested Further
- Seller Notes:
- Includes ROB04-labeled high-density D-Sub cable harness
- Condition Notes:
- Advanced Imaging Robo4 Force Measurement Controller. Inspected; powers on and all five LED displays illuminate as shown. Not tested beyond power-on. Good cosmetic condition. ROB04 cable harness included. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -
Advanced Imaging 9376910 8-Bit D-A Converter Digital to Analog PCB Card
Advanced Imaging
$30.00Was: $60.00Advanced Imaging 9376910 8-Bit D-A Converter Digital to Analog PCB CardThe Advanced Imaging 9376910 is an 8-bit Digital-to-Analog Converter (DAC) expansion board manufactured by Advanced Imaging, Inc...26240- SKU:
- 26240
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Advanced Imaging
- Model:
- 9376910
- MPN:
- 9376910
- Type:
- 8-Bit Digital-to-Analog Converter PCB Card
- SKU:
- 26240
- Resolution:
- 8-Bit
- Converter Type:
- Digital to Analog (DAC)
- Form Factor:
- PCB Card / Board
- Interface:
- Edge Connector (ribbon cable header)
- Key ICs:
- MM74HC138N, MC74HC138N (3-to-8 line decoder/demux)
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Board only. No cables or mounting hardware included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Advanced Imaging 9376910 8-Bit D-A Converter PCB card. Inspected and in good used condition. Board is clean with no visible damage or broken components. Normal minor wear from prior use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$30.00Was: $60.00 -
Advanced Imaging Inc 9376902 ELG Board PCB D-Sub Connectors Logic Card
Advanced Imaging
$65.00Was: $125.00Advanced Imaging Inc 9376902 ELG Board PCB D-Sub Connectors Logic CardThe Advanced Imaging Inc 9376902 is an ELG (Edge Logic Gate) board — a populated PCB module used within Advanced Imaging Inc...26239- SKU:
- 26239
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Advanced Imaging
- Model:
- 9376902
- MPN:
- 9376902
- Type:
- ELG Circuit Board PCB
- SKU:
- 26239
- Condition:
- Used – Inspected and Tested
- Form Factor:
- Card / PCB Module
- Connector Type:
- D-Sub (two connectors, bottom edge)
- Interface:
- D-Sub parallel interface
- Board Markings:
- ADVANCED IMAGING, INC — ELG BOARD — 9376902
- Seller Notes:
- Board only; no enclosure or cables included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Advanced Imaging Inc 9376902 ELG Board PCB inspected and in good condition. Board is clean, no visible damage. Both D-Sub connectors intact. Light handling marks consistent with prior use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -
Advanced Imaging 9376908 Active Filter PCB Board Card Electronic Component
Advanced Imaging
$30.00Was: $60.00Advanced Imaging 9376908 Active Filter PCB Board Card Electronic ComponentActive filter circuit board designed for signal conditioning and filtering in imaging and research systems. Board is fully...26238- SKU:
- 26238
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Advanced Imaging
- Model:
- 9376908
- MPN:
- 9376908
- Type:
- Active Filter PCB / Circuit Board
- SKU:
- 26238
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Used Active Filter PCB pulled from an R&D lab. Board only — no additional accessories.
- Form Factor:
- PCB / Card
- Application:
- Active signal filtering — imaging / R&D systems
- Board Revision:
- Not printed (REV field blank on label)
- Component Population:
- Capacitors, inductors, DIP ICs, resistors — fully populated
- Condition Notes:
- Advanced Imaging 9376908 Active Filter PCB inspected and in good condition. Light handling wear consistent with lab use. Clean board, no visible component or trace damage. Pulled from an R&D lab.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$30.00Was: $60.00
