Advanced Imaging Inc 9376902 ELG Board PCB D-Sub Connectors Logic Card

Advanced Imaging Inc 9376902 ELG Board PCB D-Sub Connectors Logic Card

The Advanced Imaging Inc 9376902 is an ELG (Edge Logic Gate) board — a populated PCB module used within Advanced Imaging Inc imaging systems. The board carries multiple rows of DIP-packaged logic ICs on the component side and features dual D-Sub connectors along the bottom edge for system interfacing. It is a card-level replacement or spare component intended for integration into the host imaging system or chassis it was pulled from.

Specifications & What's Included

• Manufacturer: Advanced Imaging, Inc.
• Part Number: 9376902
• Board Type: ELG Board (Edge Logic Gate PCB)
• Form Factor: Bare PCB module / card

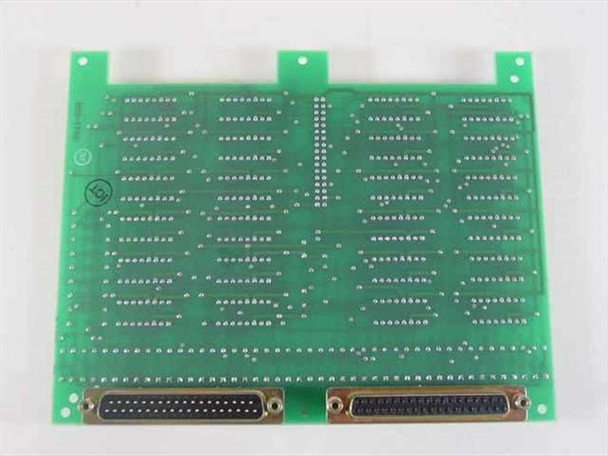

• Connectors: Two D-Sub connectors along bottom edge (visible in solder-side view)
• Center card-edge or header connector on component side (for internal system bus)
• Populated with multiple DIP logic ICs across the component side
• Diode array row visible along one board edge (CR19–CR32 series per silkscreen markings)
• Board only — no enclosure, cables, or accessories included

Applications

Advanced Imaging, Inc. produces specialized imaging and inspection systems used in industrial and scientific environments. ELG boards of this type typically serve as logic interface or gate-array control cards within a larger imaging instrument chassis, managing signal routing, I/O control, or timing functions between subsystems. This board is suited for use as a direct replacement or spare part in an Advanced Imaging Inc system that originally used part number 9376902. It would be of interest to facilities maintaining existing Advanced Imaging equipment, as well as engineers or technicians performing board-level repairs or system restoration on these instruments.
