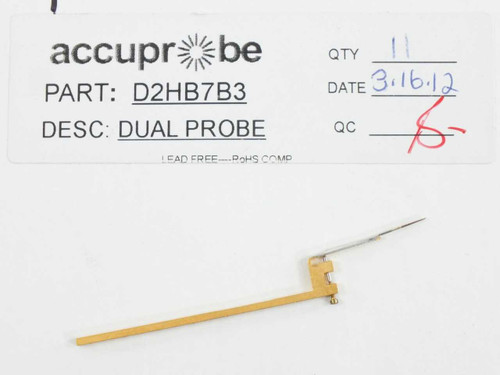

Accuprobe D2HB7B3 Dual D-Type Probe Card Probe BeCu Long Standard Tip 15 mil
Accuprobe Inc
$110.00Was: $225.00Accuprobe D2HB7B3 Dual D-Type Probe Card Probe BeCu Long Standard Tip 15 milThe Accuprobe D2HB7B3 is a Dual D-Type probe designed for use with probe cards in semiconductor wafer testing applications...51721- SKU:
- 51721
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.60 LBS
- Brand:
- Accuprobe
- Model:
- D2HB7B3
- MPN:
- D2HB7B3
- Type:
- Dual D-Type Probe Card Probe
- SKU:
- 51721
- Blade Type:
- Standard (D-Type)
- Holder Length:
- Long – 1.720" (43.688 mm)
- Needle Material:
- Beryllium Copper (BeCu)
- Needle Diameter:
- 15 mils (0.381 mm)
- Tip Diameter:
- 0.005" (0.127 mm)
- Tip Drop (B):
- 0.015" (0.381 mm)
- Tip Depth (D):
- 0.324" (8.230 mm)
- Tip Extension L1:
- 0.350" (8.89 mm)
- Overall Length:
- 0.900" (22.86 mm)
- RoHS Compliance:
- Lead-Free / RoHS Compliant
- Compatible With:
- Probe Cards – D-Type Blade Configuration
- Application:
- Semiconductor Wafer Probing / IC Testing
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Listing is for a single probe. Inspected and in good condition.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Accuprobe D2HB7B3 Dual D-Type BeCu probe card probe. Inspected and in good condition. Normal handling wear. BeCu needle and gold blade holder intact. Original box included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$110.00Was: $225.00 -
Accuprobe IK2B10D3D Kelvin Probe Assembly Z-Adjust BeCu 15mil In-Line Blade
Accuprobe Inc
$200.00Was: $525.00Accuprobe IK2B10D3D Kelvin Probe Assembly Z-Adjust BeCu 15mil In-Line BladeKelvin-type probe assembly for four-wire low-resistance measurements. Features z-adjustable beryllium copper needle with...44980- SKU:
- 44980
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.95 LBS
- Brand:
- Accuprobe
- Model:
- IK2B10D3D
- MPN:
- IK2B10D3D
- SKU:
- 44980
- Type:
- Kelvin-Type Z-Adjustable Probe Assembly
- Blade Type:
- In-Line
- Blade Length:
- Long
- Needle Material:
- Beryllium Copper (BeCu)
- Needle Diameter:
- 15 mils (0.381 mm)
- Tip Length:
- 60 mils (1.524 mm)
- Needle Extension:
- 350 mils (8.89 mm)
- Tip Spacing:
- 15 mils (0.381 mm)
- Adjustability:
- Z-Adjustable
- Measurement Type:
- Kelvin (4-wire resistance / low-resistance)
- RoHS Compliant:
- Yes — Lead Free / RoHS Comp
- Seller Notes:
- Single unit; box label shows qty 3 but only 1 unit is included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Accuprobe IK2B10D3D Kelvin Probe Assembly inspected and in good used condition. Pulled from a working environment. Yellow body, wire, and BeCu needle intact. Note: box says qty 3 — only 1 unit included. Photos available.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$200.00Was: $525.00
