Black Box

Black Box LE401A 8-Port DB-15 Fanout Switch Ethernet Transceiver 90-270VAC

(No reviews yet) Write a Review
SKU:
42857
MPN:
LE401A
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Black Box LE401A 8-Port Fanout Switch – front panel with LED indicators and 8-PORT FANOUT label
  • Black Box LE401A – rear view showing 8 DB-15 AUI ports with ONLINE LEDs and AC power inlet
  • Black Box LE401A rating label – Model LE401A Rev A, Serial X9102092-0188, Made in the USA, UL Listed 8J59
  • Black Box LE401A – close-up of front panel Black Box logo and System Power LED

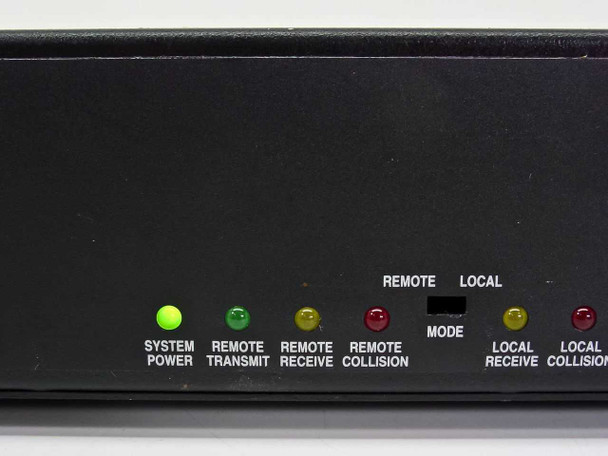

  • Black Box LE401A – front panel detail showing MODE switch location (switch missing), REMOTE/LOCAL indicators and collision/receive LEDs
  • Black Box LE401A – right side of front panel showing SQE switch location (switch missing) and Transmit Port 1–8 LEDs
  • Black Box LE401A – close-up of DB-15 AUI ports 1–4 with ONLINE indicator LEDs
  • Black Box LE401A – right-side rear panel showing Port 8 DB-15, external transceiver port, AC power switch and IEC inlet labeled 90–270VAC Auto Sensing
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Black Box LE401A 8-Port DB-15 Fanout Switch Ethernet Transceiver 90-270VAC

An 8-port AUI fanout switch designed to distribute Ethernet signals across multiple DB-15 AUI connections. Supports 90–270VAC auto-sensing power input and includes front-panel status indicators for system monitoring.

Specifications & What's Included

  • 8 DB-15 AUI ports
  • 90–270VAC auto-sensing power supply
  • Front panel indicators: System Power, Remote TX/RX/Collision, Local RX/Collision, SQE, Transmit per port
  • UL Listed and FCC Class A certified
  • Desktop form factor
  • Made in USA

Applications

AUI fanout switches were standard in legacy Ethernet networks for expanding single transceiver connections to multiple nodes. Commonly used with 10BASE-5 thick Ethernet systems and vintage workstations requiring AUI interfaces. This device supported industrial and telecom installations where distributed AUI connectivity was necessary.

Condition: Used
This Black Box LE401A 8-Port DB-15 Fanout Switch has been inspected and powers on. Two front-panel switches are missing: the MODE switch (Remote/Local) and the SQE switch (On/Off) — their locations are visible on the front panel and are captured in the photos. The chassis shows moderate scuffing and surface scratches on the top cover, consistent with normal use. All eight DB-15 AUI port connectors on the rear appear intact and undamaged, and the ONLINE indicator LEDs are visible. The IEC AC power inlet and rocker switch on the rear are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Black Box
Model:
LE401A
MPN:
LE401A
Hardware Revision:
Rev A
Type:
8-Port DB-15 AUI Fanout Switch
Number of Ports:
8
Connector Type:
DB-15 (AUI)
Interface Type:
AUI / DB-15
Power Requirements:
90–270VAC Auto-Sensing
Form Factor:
Desktop
Front Panel Indicators:
System Power, Remote TX/RX/Collision, Local RX/Collision, SQE, Transmit per port
Missing Components:
MODE switch (Remote/Local) and SQE switch (On/Off) are missing
Certifications:
UL Listed (8J59), FCC Class A
Country/Region of Manufacture:
United States
Condition:
Used – Powers On; Missing MODE and SQE switches
SKU:
42857
Seller Notes:
Unit powers on. Missing MODE (Remote/Local) and SQE (On/Off) switches.
Condition Notes:
Black Box LE401A 8-Port DB-15 Fanout Switch powers on. Missing the MODE (Remote/Local) and SQE (On/Off) front-panel switches. Chassis shows normal use wear. All 8 DB-15 AUI ports present. Sold as-is regarding missing switches.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
