Bio-Rad VersaDoc 5000 MP Peltier-Cooled CCD Chemiluminescent Imager w/ Software
The Bio-Rad VersaDoc 5000 MP is a digital gel documentation and molecular imaging system built around a blue-enhanced, Peltier-cooled CCD camera. It is designed to capture chemiluminescent, fluorescent, and colorimetric signals from electrophoresis gels, blots, and other biological samples, replacing film-based imaging with a fully digital workflow. The camera is supercooled to approximately -35°C to reduce dark current and maximize sensitivity on faint signals.
Specifications & What's Included
- Model: Bio-Rad VersaDoc 5000 MP
- Part Number: 10006609 Rev A
- Input: 100–240V AC, 50–60 Hz (universal input)
- Max Rated Power: 350 W
- Detector: Blue-enhanced CCD, Peltier-cooled to approximately -35°C
- Imaging modes: Chemiluminescence, fluorescence, colorimetric

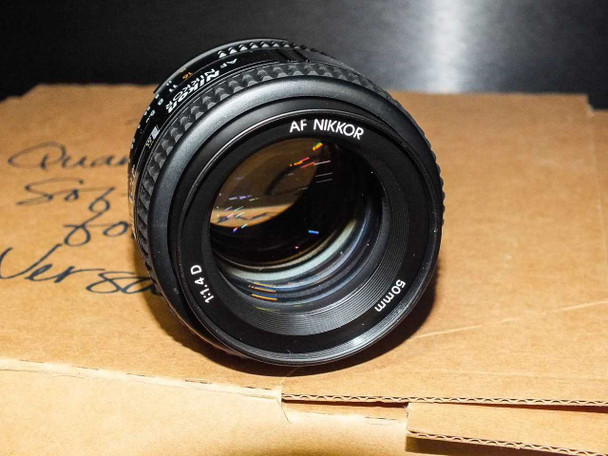

- Lens: Nikon AF Nikkor 50mm f/1.4D (mounted and included)

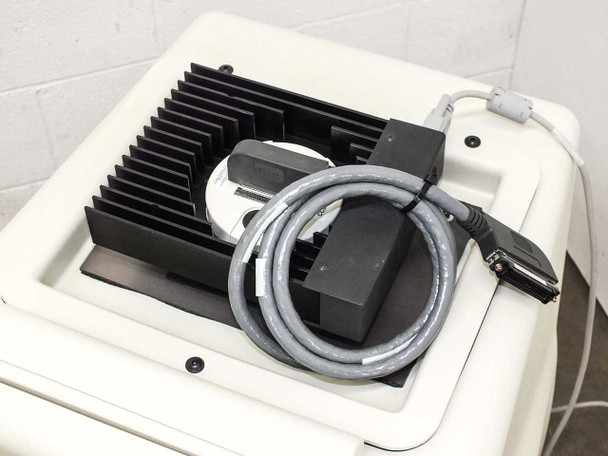

- Camera interface: SCSI-type cable (Assembly 01100201) connecting top-mounted camera to system
- Rear connectivity: USB-B port, DB9 COM port, IEC AC power inlet

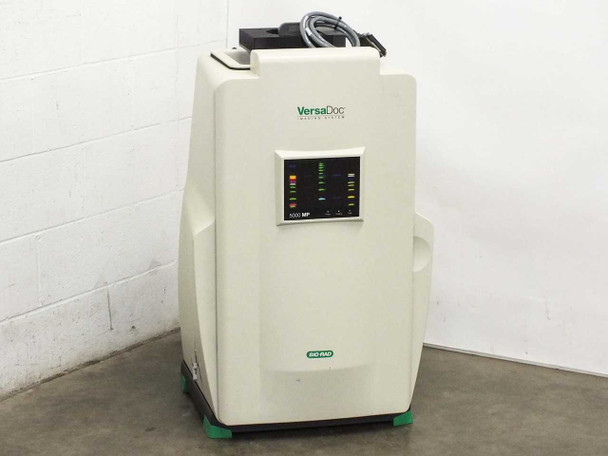

- Front panel: Touchscreen gel-preview display with Power, Imaging, and Fault LED indicators
- Interior: Light-tight imaging chamber with pull-out imaging drawer/tray
- Internal motor: Lin Engineering stepper motor (P/N 416-07-05-29, 0.60A) for aperture/filter control
- Form factor: Freestanding floor cabinet with front-opening light-tight door
- Manufactured by: Bio-Rad Laboratories, Hercules, CA — Made in USA
- Included: Nikon AF Nikkor 50mm f/1.4D lens, Bio-Rad Quantity One software, Bio-Rad Discovery Series software binder, system cables
Applications
The VersaDoc 5000 MP is used in molecular biology and life-science research laboratories for gel documentation, western blot imaging, Southern/Northern blot analysis, and ethidium bromide or SYBR-stained gel visualization. CCD-based imaging systems like this replaced photographic film in these applications during the late 1990s and early 2000s, offering quantitative digital data capture, faster workflows, and a far wider dynamic range than film. The 5000 MP model sits at the high-sensitivity end of the VersaDoc product family, with its deeply cooled CCD making it particularly suited to low-signal applications such as chemiluminescent western blots where signal intensity is low and exposure time is critical. Bio-Rad's Quantity One software — included here — provides image acquisition, band quantification, lane analysis, and molecular weight estimation tools in a single package. These systems remain in use in academic, pharmaceutical, and biotech research settings wherever legacy gel documentation workflows are maintained, and are also sought as cost-effective alternatives to newer systems for routine gel documentation work.
This Bio-Rad VersaDoc 5000 MP chemiluminescent imaging system has not been powered up or tested at our facility, but it was pulled from a working laboratory environment where it was previously in use. The cabinet exterior is in good cosmetic condition with normal lab wear. The interior imaging chamber and pull-out drawer show some residue/staining on the imaging tray, which is typical for used gel documentation equipment. The left side panel has a cardboard cover over part of the ventilation area, which is visible in the photos — buyers should inspect the photos closely for this detail. The Nikon AF Nikkor 50mm f/1.4D lens is present and mounted on the camera assembly inside the chamber. Included with the system are Bio-Rad Quantity One software, the Discovery Series software binder, and associated cables. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Bio-Rad |
Model: |
VersaDoc 5000 MP |
MPN: |
10006609 Rev A |
Type: |
Chemiluminescent / Fluorescent Gel Documentation Imager |
SKU: |
46639 |
Input Voltage: |
100-240V AC |
Frequency: |
50-60 Hz |
Max Rated Power: |
350 W |
Detector: |
Blue-enhanced Peltier-cooled CCD |
CCD Cooling Method: |
Peltier (thermoelectric), supercooled to -35°C |
Imaging Mode: |
Chemiluminescence, fluorescence, colorimetric |
Lens: |
Nikon AF Nikkor 50mm f/1.4D |
Interface: |
USB-B, DB9 COM Port, SCSI camera cable |
Software: |
Bio-Rad Quantity One (included) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Freestanding benchtop/floor cabinet |
Application: |
Western blot, gel documentation, chemiluminescence |
Compatible Software: |
Bio-Rad Quantity One / Discovery Series |
Seller Notes: |
Includes Nikon AF Nikkor 50mm f/1.4D lens, Quantity One software, and cables |
Condition Notes: |
This Bio-Rad VersaDoc 5000 MP imager was pulled from a working lab and has not been tested at our facility. Exterior is in good cosmetic condition; imaging tray shows some residue. Left side panel has a cardboard cover — see photos. |
