UVP MultiDoc-It 97-0108-01 Digital Imaging System M-20 Transilluminator 115V
The UVP MultiDoc-It is a benchtop digital gel documentation and imaging system produced by UVP BioImaging Systems. It integrates a darkroom enclosure (P/N 76-0313-01) with an M-20 UV transilluminator (P/N 95-0216-01) in a self-contained cabinet designed for capturing fluorescent images of electrophoresis gels stained with ethidium bromide or other UV-excitable dyes. The system is designed to accept an overhead imaging camera mounted within the darkroom enclosure; no camera is present in this listing.
Specifications & What's Included
- Manufacturer: UVP BioImaging Systems, Upland, CA USA

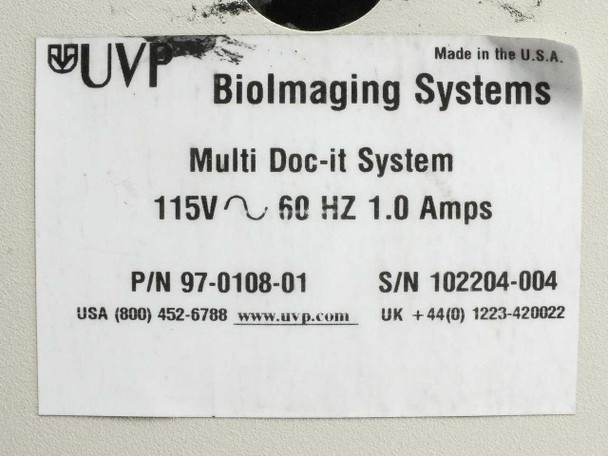

- System Part Number: 97-0108-01

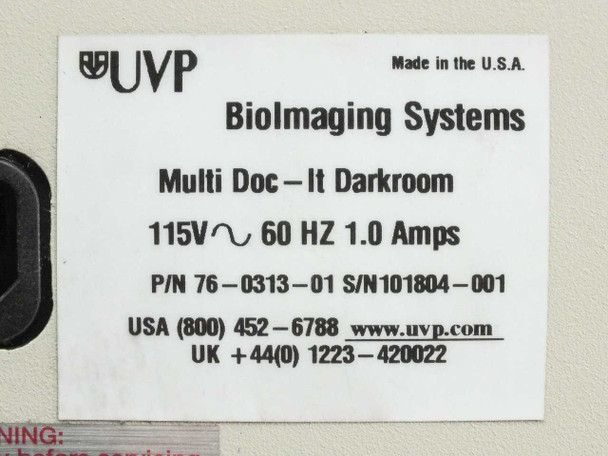

- Darkroom Enclosure Part Number: 76-0313-01
- Transilluminator Model: M-20
- Transilluminator Part Number: 95-0216-01
- System Power: 115V AC, 60 Hz, 1.0 Amps
- Transilluminator Power: 115V AC, 60 Hz, 0.8 Amps
- Country of Manufacture: USA

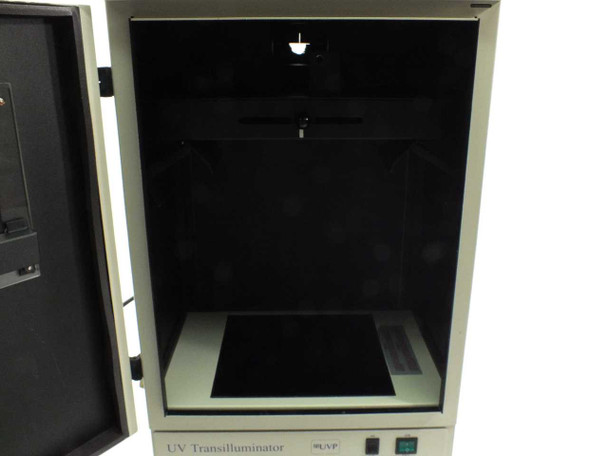

- Illumination: UV transilluminator (HI and LO settings) + upper white light
- Transilluminator lamps contain mercury — dispose per local, state, or federal regulations

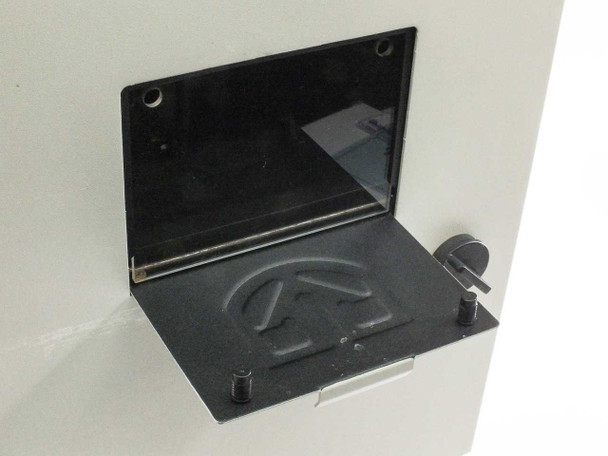

- Camera: NOT included — camera mount and interior bracket are present but camera is absent

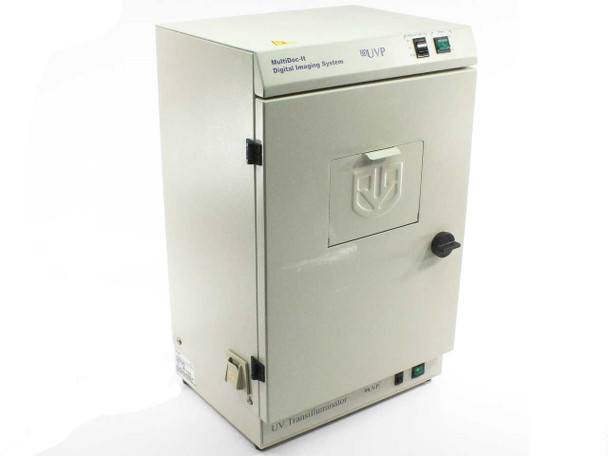

- Darkroom cabinet with front-access door and interior camera mounting shelf included

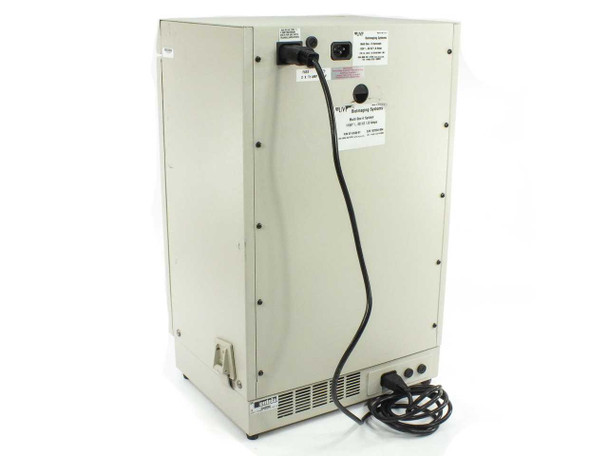

- Power cord included (visible in photos)
Applications
The MultiDoc-It system is a gel documentation platform used in molecular biology and biochemistry laboratories for capturing, archiving, and analyzing fluorescent gel images. It is primarily used with UV transillumination for visualizing ethidium bromide-stained DNA and RNA electrophoresis gels, as well as protein gels and other fluorescently labeled substrates. The integrated darkroom cabinet blocks ambient light to improve image contrast when photographing gels. Systems of this type were widely deployed in academic research labs, clinical diagnostics facilities, and pharmaceutical or biotech environments requiring routine gel documentation. This unit would be of particular interest to buyers seeking a replacement darkroom enclosure, a functional M-20 transilluminator, or a parts source for an existing MultiDoc-It system.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This UVP MultiDoc-It Digital Imaging System (P/N 97-0108-01) with M-20 UV Transilluminator is being sold AS-IS for parts or repair. The unit powers on and the transilluminator bulb is functional on both the HI and LO settings. The upper white light also illuminates. The UV mode could not be verified during our assessment, so its functionality cannot be confirmed. No camera is included with this unit — the camera mount and darkroom enclosure are present, but the imaging camera itself is absent. The overall cabinet shows typical cosmetic wear consistent with laboratory use; the darkroom interior and transilluminator surface appear intact. This item is sold strictly as-is with no functionality guarantee. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
UVP |
Model: |
MultiDoc-It |
MPN: |
97-0108-01 |
Secondary Model: |
M-20 Transilluminator |
Type: |
Digital Gel Documentation / Imaging System |
SKU: |
51611 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes darkroom enclosure and M-20 transilluminator. No camera included. |
Country/Region of Manufacture: |
United States |
Power Requirements: |
115V AC, 60 Hz, 1.0 Amps |
Form Factor: |
Benchtop / Darkroom Cabinet |
Transilluminator Model: |
M-20 |
Transilluminator MPN: |
95-0216-01 |
Transilluminator Power: |
115V, 60 Hz, 0.8 Amps |
Darkroom MPN: |
76-0313-01 |
Illumination Type: |
UV Transilluminator + White Light |
UV Light Settings: |
HI and LO |
Camera: |
Not Included |
Manufacturer: |
UVP BioImaging Systems |
Application / Use Case: |
Gel documentation, electrophoresis imaging, UV fluorescence |
Compatible With: |
Ethidium bromide-stained gels, fluorescent gel imaging |
Condition Notes: |
UVP MultiDoc-It 97-0108-01 Digital Imaging System w/ M-20 Transilluminator. Powers on; transilluminator works HI/LO, white light functional. UV mode unverified. No camera. Sold AS-IS for parts or repair. No functionality guarantee. |
