Description
Binary B-500-EXT-330-RS-IP 500 Series 4K HDBaseT Extender Receiver HDMI RS-232
HDBaseT receiver unit for extending 4K video and control signals over standard networking cable. Receives signals from a compatible HDBaseT transmitter and outputs HDMI video with bidirectional RS-232 and IR control.
Specifications & What's Included
- 4K Ultra HD @ 30Hz, 3D support
- 10.2 Gbps video bandwidth
- Transmission distance: 230 ft (Cat 5e/6) / 330 ft (Cat 6a/7)
- HDMI Type A output, RS-232 (DB9) control, RJ-45 HDBaseT input
- 100Mb Ethernet pass-through, bidirectional Power over Cable
- 24V DC 1A power requirement
- Desktop/wall-mountable, 6.25" x 1.3" x 3.1"
- Receiver unit only — no transmitter, power supply, or cables included
Applications
HDBaseT extenders are used in commercial audiovisual installations, control rooms, and broadcast facilities to transmit 4K video and control data over long cable runs using standard CAT cabling. Common in digital signage networks, command centers, and integrated AV systems where centralized equipment requires remote display and device control at distances beyond standard HDMI limits.
Condition: Used

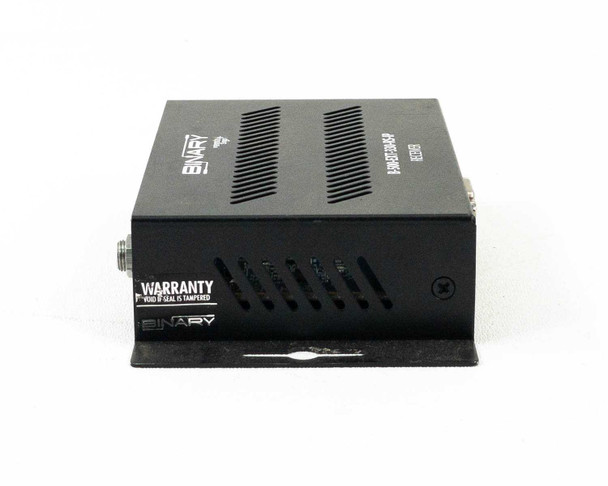

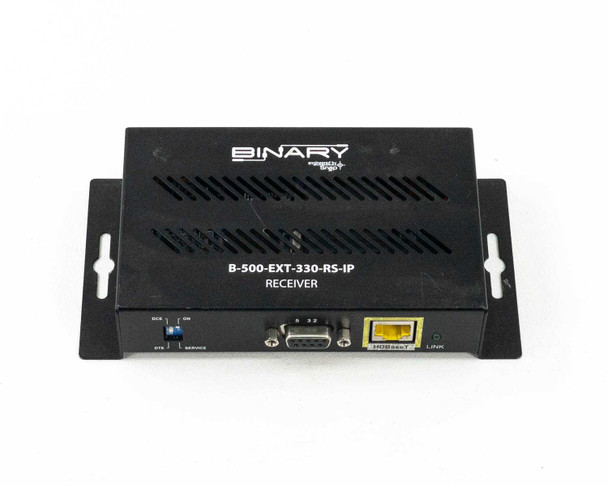

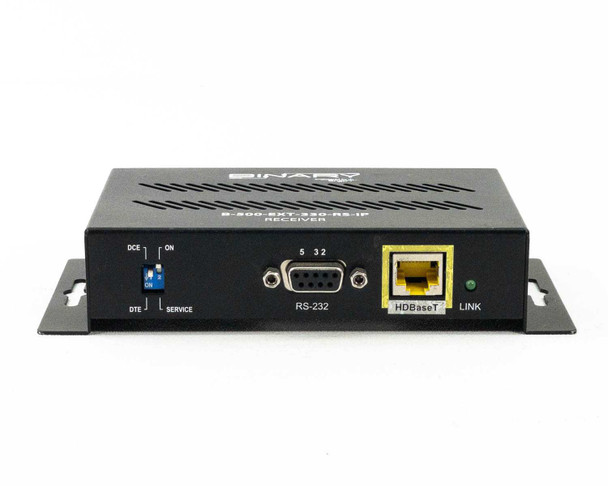

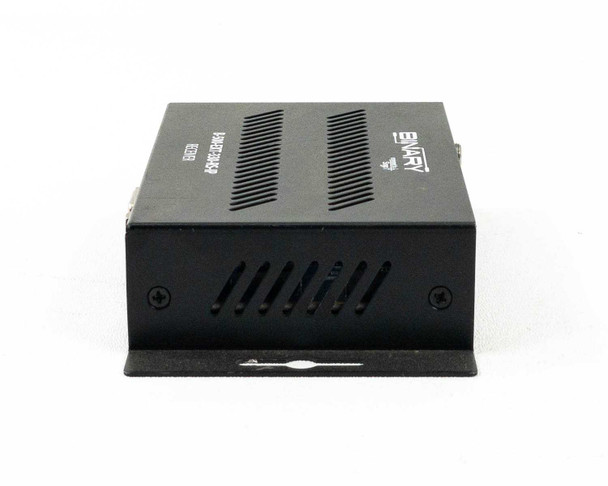

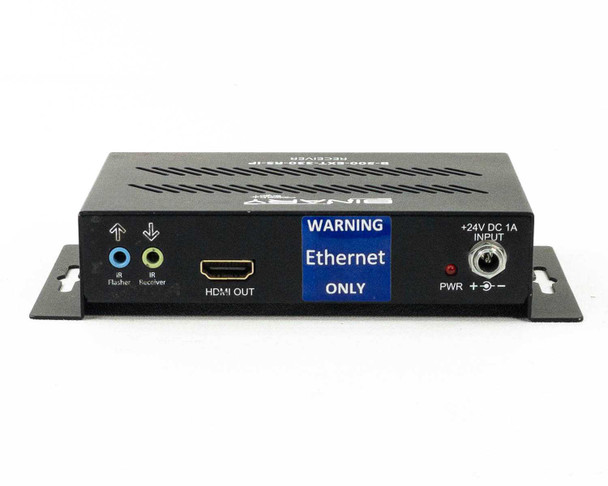

This Binary B-500-EXT-330-RS-IP 500 Series 4K HDBaseT Extender Receiver has been inspected and appears to be in good condition. It was pulled from a working installation where it was in active use. The unit shows light surface wear consistent with normal install use — the black metal enclosure is generally clean with no significant damage visible. The HDBaseT RJ-45 port, RS-232 DB9 connector, HDMI output, IR ports, and 24V DC power input all appear intact. This is the receiver unit only; no transmitter, power supply, or cables are included. Please view our photo set and contact us if you have any questions.
This Binary B-500-EXT-330-RS-IP 500 Series 4K HDBaseT Extender Receiver has been inspected and appears to be in good condition. It was pulled from a working installation where it was in active use. The unit shows light surface wear consistent with normal install use — the black metal enclosure is generally clean with no significant damage visible. The HDBaseT RJ-45 port, RS-232 DB9 connector, HDMI output, IR ports, and 24V DC power input all appear intact. This is the receiver unit only; no transmitter, power supply, or cables are included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Binary |
Model: |
B-500-EXT-330-RS-IP |
MPN: |
B-500-EXT-330-RS-IP |
SKU: |
53129 |
Type: |
HDBaseT Extender Receiver |
Series: |
Binary 500 Series |
Video Resolution: |
4K Ultra HD @ 30Hz |
3D Support: |
Yes |
Video Bandwidth: |
10.2 Gbps |
Transmission Distance (Cat 5e/6): |
230 ft (70 m) |
Transmission Distance (Cat 6a/7): |
330 ft (100 m) |
HDMI Output: |
HDMI Type A 19-pin |
Control Interface: |
RS-232 (DB9), Bi-directional IR |
Network Interface: |
HDBaseT RJ-45; 100Mb Ethernet pass-through |
Power over Cable (POC): |
Bi-Directional POC |
Power Requirements: |
24V DC 1A |
ESD & Surge Protection: |
Built-In |
Cable Standard: |
TIA/EIA-568-B |
Dimensions: |
6.25" x 1.3" x 3.1" |
Form Factor: |
Desktop / Wall-Mountable |
Compatible Cable Types: |
Cat 5e, Cat 6, Cat 6a, Cat 7 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Receiver unit only. No transmitter, power supply, or cables included. |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
Binary B-500-EXT-330-RS-IP 4K HDBaseT Extender Receiver. Inspected, in good condition, pulled from a working install. Light surface wear. Receiver unit only — no transmitter, PSU, or cables included. |
