Description

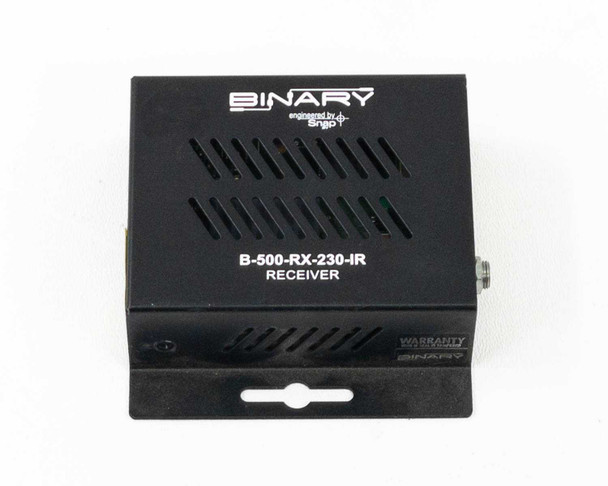

Binary B-500-RX-230-IR HDBaseT Receiver 1080p IR HDMI Out CAT 5V DC 2A
HDBaseT receiver that extends 1080p video and IR signals over CAT5 cabling. Accepts HDBaseT input via RJ-45 connector and outputs HDMI video with bi-directional IR support.
Specifications & What's Included
- Model: B-500-RX-230-IR (Binary 500 Series)
- Video Output: HDMI Type A 1080p Full HD
- Input: HDBaseT over CAT5 (RJ-45)
- IR: Bi-directional with 3.5mm mono flasher and stereo receiver
- Power: 5V DC 2A via latch-lock barrel connector
- Protection: Built-in ESD and surge protection
- Dimensions: 4.1" x 1.25" x 3.5" (desktop/wall-mount)
- Certifications: FCC, CE, RoHS
Applications
HDBaseT receivers are used in professional AV installations to extend video signals over longer distances using standard network cabling. Commonly deployed in conference rooms, digital signage systems, and broadcast environments where HDMI sources need to reach displays remotely. The IR pass-through allows remote control signals to travel back through the CAT5 cable to control source equipment.
Condition: Used
This Binary B-500-RX-230-IR 500 Series HDBaseT Receiver has been inspected and is in good used condition. It was pulled from a working environment and powers on without issue. It has not been tested with video input or output. The unit shows normal cosmetic wear consistent with prior installation use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Binary B-500-RX-230-IR 500 Series HDBaseT Receiver has been inspected and is in good used condition. It was pulled from a working environment and powers on without issue. It has not been tested with video input or output. The unit shows normal cosmetic wear consistent with prior installation use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Binary |
Model: |
B-500-RX-230-IR |
MPN: |
B-500-RX-230-IR |
SKU: |
53123 |
Type: |
HDBaseT Receiver |
Series: |
500 Series |
Video Resolution: |
1080p Full HD |
Video Output: |
HDMI Type A 19-pin |
Network / CAT Input: |
HDBaseT (RJ-45) |
IR Support: |
Bi-directional IR |
IR Flasher: |
1 x 3.5mm mono |
IR Receiver: |
1 x 3.5mm stereo |
DDC Signal: |
5 volts |
ESD Protection: |
Built-in ESD and surge protection |
Power Requirements: |
5V DC 2A |
Power Connector: |
Latch locking barrel connector |
Dimensions: |
4.1" x 1.25" x 3.5" |
Form Factor: |
Desktop / Wall-Mount |
Country/Region of Manufacture: |
Taiwan |
Certifications: |
FCC, CE, RoHS |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — no power supply included. Powers on; not tested with video input/output. |
Condition Notes: |
Binary B-500-RX-230-IR HDBaseT Receiver in good used condition. Pulled from a working environment; powers on without issue. Not tested with video input or output. Normal cosmetic wear. Contact us with questions. |
