BICC Data Networks

BICC Data Networks EAZY Fiber Optic Hub 6-Port Type 1160 IEEE 802.3 AUI

(No reviews yet) Write a Review
SKU:
34491
MPN:
EASY
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

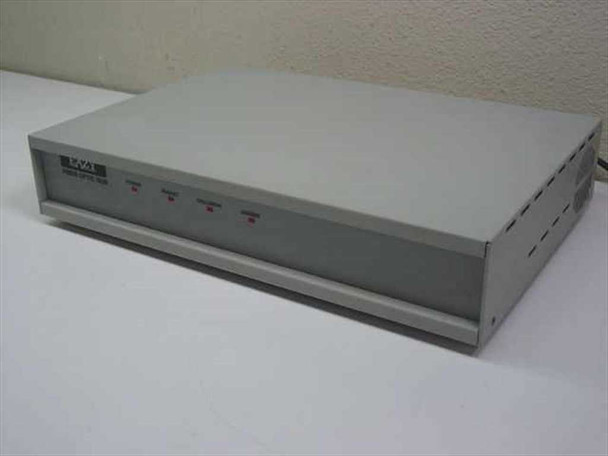

  • BICC Data Networks EAZY Fiber Optic Hub Type 1160 – front panel view showing POWER, PACKET, COLLISION, and JABBER LED indicators
  • BICC EAZY Fiber Optic Hub Type 1160 – rear panel view showing 6 BNC TX/RX fiber ports with RX/LOSS indicators and attached power cord

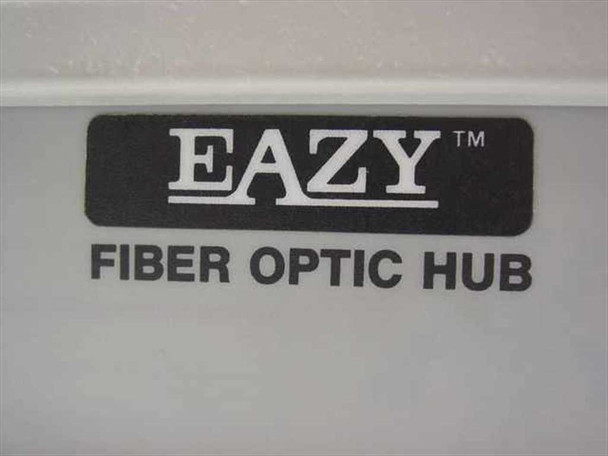

  • BICC EAZY Fiber Optic Hub – close-up of front panel label reading EAZY Fiber Optic Hub

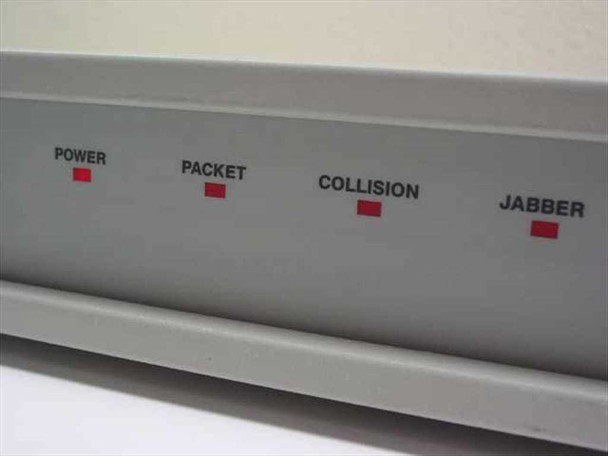

  • BICC EAZY Fiber Optic Hub – front panel close-up showing POWER, PACKET, COLLISION, and JABBER red LED indicators

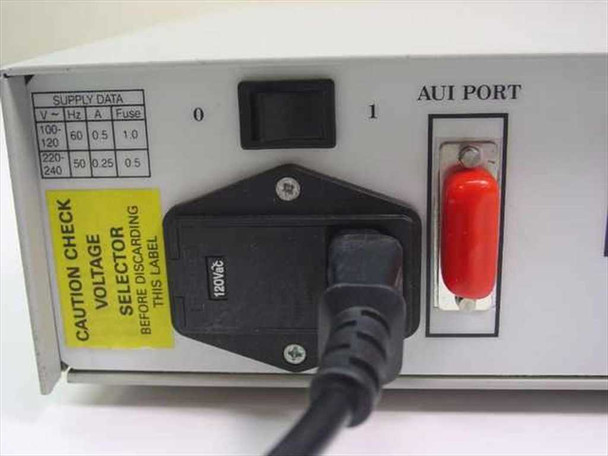

  • BICC EAZY Fiber Optic Hub Type 1160 – rear panel close-up showing power inlet, voltage selector switch, and AUI PORT
  • BICC Data Networks EAZY Fiber Optic Hub – rear panel label close-up showing Type 1160, IEEE 802.3, ISO/DIS8802/3, IEC 950, and SQE switch with ports 1–4 visible

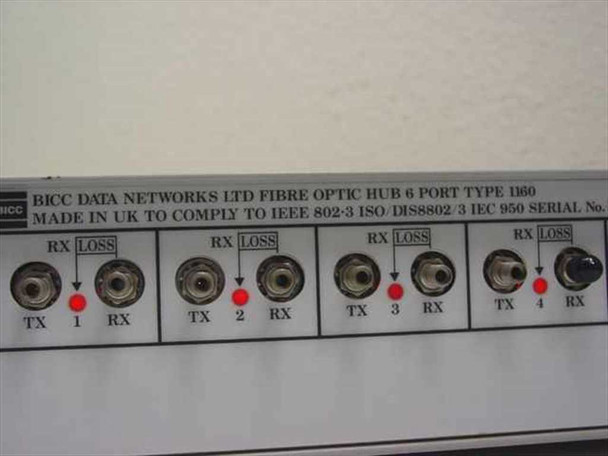

  • BICC Data Networks EAZY Fiber Optic Hub Type 1160 – rear panel label detail showing ports 1–4 TX/RX BNC connectors with RX and LOSS indicators
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

BICC Data Networks EAZY Fiber Optic Hub 6-Port Type 1160 IEEE 802.3 AUI

Fiber optic Ethernet hub designed for connecting multiple stations in a local area network. Supports IEEE 802.3 standard connectivity with six fiber optic ports and one AUI port for network integration.

Specifications & What's Included

  • 6 fiber optic ports with BNC connectors (TX/RX per port)
  • 1 AUI port for standard Ethernet connection
  • IEEE 802.3, ISO/DIS8802/3, IEC 950 compliant
  • Power: 100-120V 60Hz or 220-240V 50Hz (manual voltage selector)
  • LED indicators: Power, Packet, Collision, Jabber; per-port RX and LOSS indicators
  • SQE On/Off switch
  • Power cord attached

Applications

This hub type was used in legacy fiber optic Ethernet networks, particularly in environments requiring extended distances or electrical isolation. Common in industrial, telecommunications, and institutional settings where fiber connectivity was necessary. Compatible with systems using standard IEEE 802.3 Ethernet protocols and AUI interfacing.

Condition: Used
This BICC Data Networks EAZY Fiber Optic Hub Type 1160 has been inspected and is in good used condition. The unit is cosmetically clean overall with light surface wear consistent with prior use. All six fiber port BNC connectors and the AUI port on the rear panel appear intact. Front-panel LED indicators (Power, Packet, Collision, Jabber) and per-port RX/LOSS indicators are all present. The power cord is attached and the voltage selector is set to 120V. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
BICC Data Networks
Model:
Type 1160
MPN:
1160
Type:
Fiber Optic Ethernet Hub
SKU:
34491
Number of Ports:
6
AUI Ports:
1
Connector Type:
BNC (TX/RX per port), AUI
Standards:
IEEE 802.3, ISO/DIS8802/3, IEC 950
Power Requirements:
100-120V 60Hz 1.0A / 220-240V 50Hz 0.5A
Voltage Selector:
Manual voltage selector switch (100-120V / 220-240V)
LED Indicators:
Power, Packet, Collision, Jabber
Per-Port Indicators:
RX, LOSS per port
SQE Setting:
SQE Off/On switch present
Country/Region of Manufacture:
United Kingdom
Form Factor:
Desktop
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; power cord attached. Inspected and in good condition.
Condition Notes:
BICC Data Networks EAZY Fiber Optic Hub Type 1160 has been inspected and is in good used condition. Light surface wear; all 6 fiber ports and AUI port appear intact. Power cord attached, voltage selector set to 120V.
View AllClose
