Description

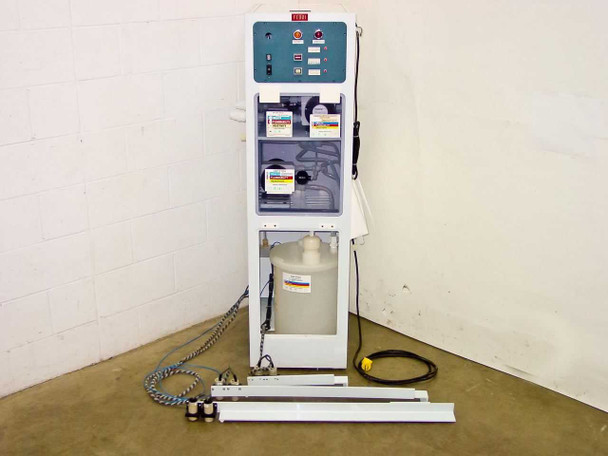

Bettcher Process Services Polypropylene Chemical Dispensing Cabinet Wafer Etch
Freestanding polypropylene cabinet designed for chemical storage, dispensing, and pumping in semiconductor wafer processing. Operates on 120 VAC, 5A, 50/60 Hz single/three-phase power.
Specifications & What's Included
- Dimensions: 22 x 25 x 58 in (H)

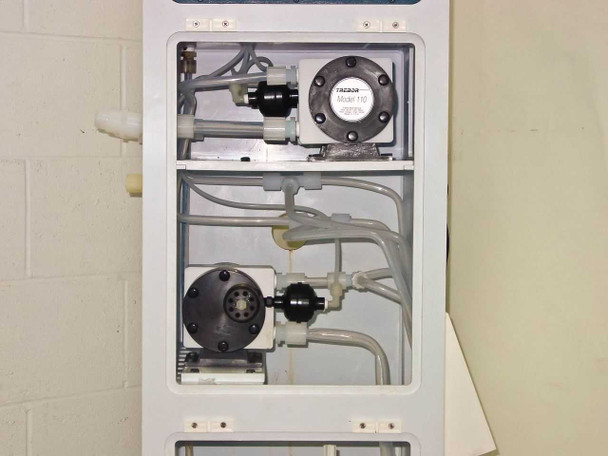

- 3x Trebor Model 110 pumps

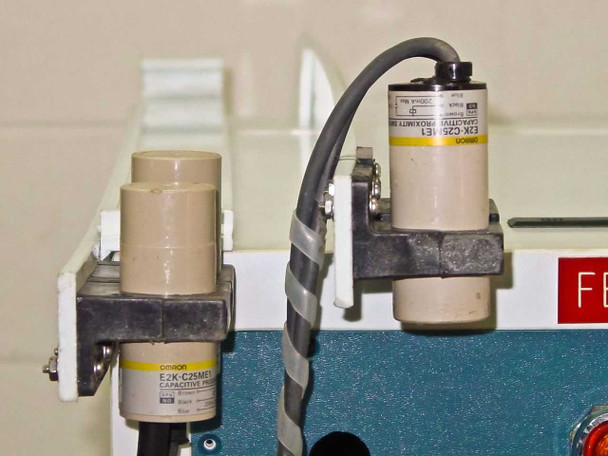

- 6x Omron E2K-C25ME1 long-distance capacitive sensors
- Omron G72C-ID16 and G72C-OD16 remote terminals (24VDC)
- Wilden WIL-GARD I diaphragm monitor

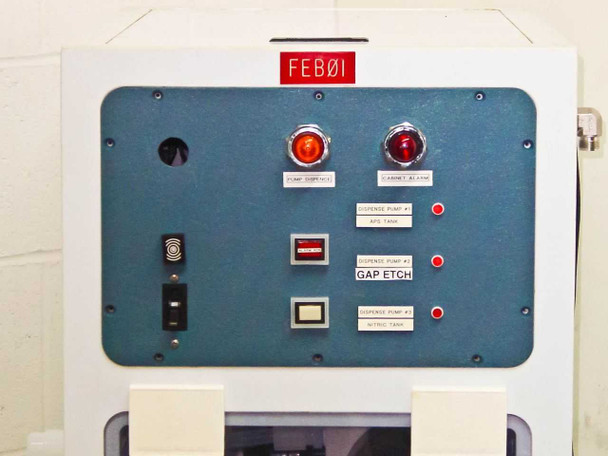

- Control panel (FEB01) with APD Tank, GAP ETCH, and Nitric Tank dispense pump controls
Applications
Used in semiconductor manufacturing and R&D for controlled chemical dispensing during wafer etch processes. The cabinet manages multiple chemical tanks with monitored pumping and sensor feedback. Common in fab environments where precise chemical delivery and safety monitoring are required.
Condition: Used
This Bettcher Process Services polypropylene chemical dispensing cabinet is in used condition, pulled from a semiconductor research and development facility where it was previously in active service. The cabinet was removed when the facility changed process formats and was no longer needed. No bench testing has been performed at our facility; the unit is sold as inspected. Cosmetically it presents well — the white polypropylene cabinet body is clean with only minor surface wear consistent with lab use. The control panel (labeled FEB01) and its indicator lights, pump dispense switches, and wiring appear intact. All sub-components are present as listed: six Omron E2K-C25ME1 capacitive sensors, one Omron G72C-ID16 remote terminal, one Omron G72C-OD16 remote terminal, three Trebor Model 110 pumps, and one Wilden WIL-GARD I diaphragm monitor (PN 65-8000-99). The GAP ETCH chemical tank and floor rail accessories are included as shown. Due to size and weight (approximately 185 lbs), this item requires freight shipping. Please view our photo set and contact us if you have any questions.
This Bettcher Process Services polypropylene chemical dispensing cabinet is in used condition, pulled from a semiconductor research and development facility where it was previously in active service. The cabinet was removed when the facility changed process formats and was no longer needed. No bench testing has been performed at our facility; the unit is sold as inspected. Cosmetically it presents well — the white polypropylene cabinet body is clean with only minor surface wear consistent with lab use. The control panel (labeled FEB01) and its indicator lights, pump dispense switches, and wiring appear intact. All sub-components are present as listed: six Omron E2K-C25ME1 capacitive sensors, one Omron G72C-ID16 remote terminal, one Omron G72C-OD16 remote terminal, three Trebor Model 110 pumps, and one Wilden WIL-GARD I diaphragm monitor (PN 65-8000-99). The GAP ETCH chemical tank and floor rail accessories are included as shown. Due to size and weight (approximately 185 lbs), this item requires freight shipping. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Bettcher Process Services |
Model: |
Cabinet |
MPN: |
Cabinet |
Type: |
Chemical Storage / Dispensing / Pumping Cabinet |
SKU: |
22477 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes 3x Trebor Model 110 pumps, 6x Omron E2K-C25ME1 sensors, Omron G72C-ID16, G72C-OD16, Wilden WIL-GARD I monitor |

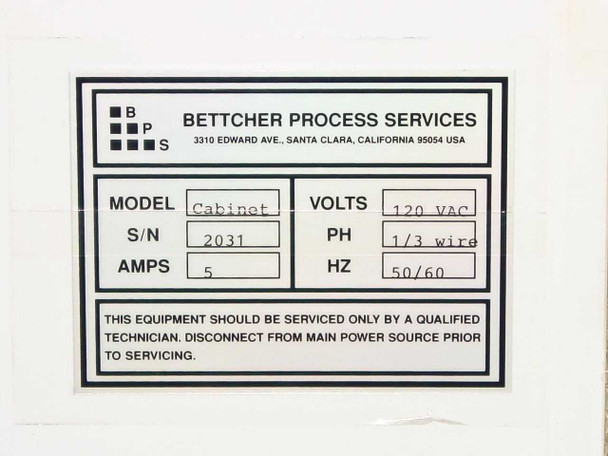

Voltage: |
120 VAC |
Amperage: |
5A |
Phase: |
1/3 Wire |
Frequency: |
50/60 Hz |
Power Requirements: |
120 VAC, 5A, 50/60 Hz, 1/3 Wire |
Material: |
Polypropylene |
Dimensions: |
22 x 25 x 58 in (H: 58 in) |
Application: |
Semiconductor wafer chemical dispensing / etch process |
Included Component 1: |
Omron E2K-C25ME1 Long-Distance Capacitive Sensor (Qty 6) |
Included Component 2: |
Omron G72C-ID16 Remote Terminal 24VDC (Qty 1) |
Included Component 3: |
Omron G72C-OD16 Remote Terminal 24VDC (Qty 1) |
Included Component 4: |
Trebor Model 110 Pump (Qty 3) |
Included Component 5: |
Wilden WIL-GARD I Diaphragm Monitor 65-8000-99 (Qty 1) |
Control Panel Label: |
FEB01 – Dispense Pump controls: APD Tank, GAP ETCH, Nitric Tank |
Country/Region of Manufacture: |
United States |
Form Factor: |
Freestanding Floor Cabinet |
Serial Number (internal): |
2031 |
Condition Notes: |
Bettcher Process Services polypropylene chemical dispensing cabinet, used, pulled from a semiconductor R&D facility. Inspected, not bench-tested. All sub-components present. Cosmetically clean with minor wear. Freight shipping required. |
