Berger Lahr 220642-00-01 Control PCB Singulus Skyline Injection Molding System Rev C

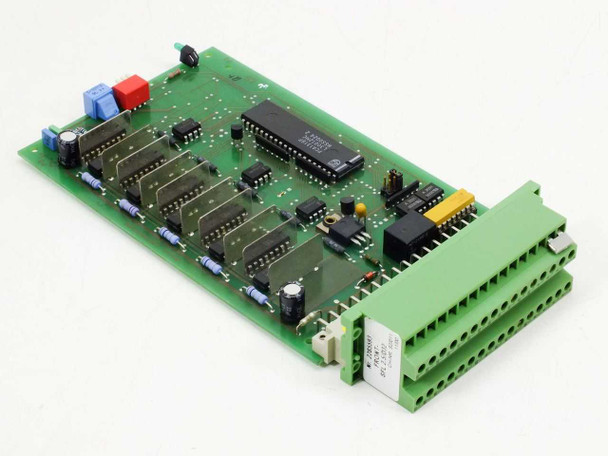

This is the Berger Lahr LS 220642-00-01 C (Revision C) control circuit board, an OEM PCB used in the Singulus Skyline injection molding system. Berger Lahr (now part of the Schneider Electric / IMS group) produced motion control and automation electronics widely used in industrial machinery throughout the 1990s and 2000s. This board serves as a control and I/O interface card within the Skyline platform's control architecture.
Specifications & What's Included
- Manufacturer: Berger Lahr
- Part Number: LS 220642-00-01 C
- Revision: Rev C
- Compatible System: Singulus Skyline Injection Molding System
- Form Factor: Plug-in PCB / control card module

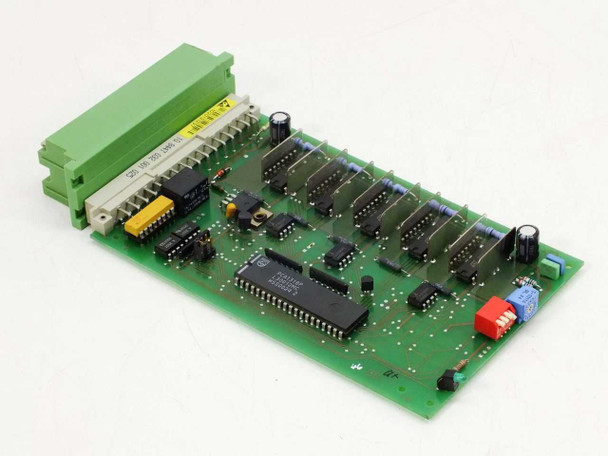

- Main IC: Motorola XAA808 (date code 14070B) — primary controller/processor

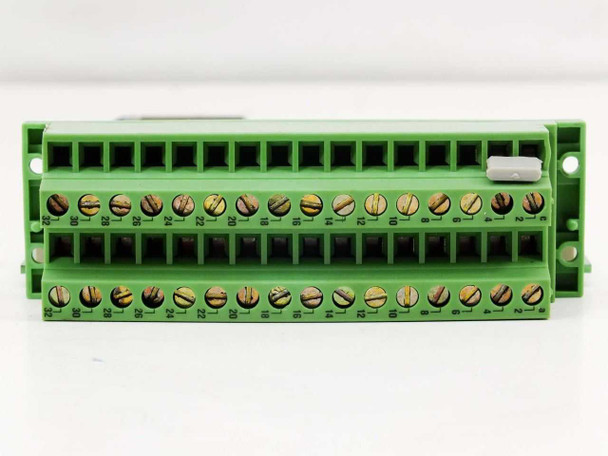

- I/O Connector: Dual-row green screw-terminal block (approx. 24-position), attached and intact
- Additional ICs: Multiple DIP-package logic ICs and relay array visible on board
- PCB color: Green; silkscreen markings legible
- Includes: Board with screw-terminal I/O connector attached
Applications
Berger Lahr control boards like this one serve as dedicated I/O and control interface cards within the Singulus Skyline injection molding platform — managing motion sequencing, sensor inputs, and actuator outputs as part of the machine's central control system. The Singulus Skyline line was used in high-precision plastic injection molding, including optical disc (CD/DVD) substrate production, where tight process control was critical. Replacement or spare control PCBs of this type are sought by maintenance engineers and machine rebuilders keeping Skyline-platform equipment operational. The dual-row screw-terminal connector block is characteristic of industrial field-wiring interfaces common to European automation equipment of this generation, allowing direct hardwired connections to sensors and actuators on the machine floor.
This Berger Lahr 220642-00-01 control board for the Singulus Skyline injection molding system has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The board shows typical light handling wear consistent with normal service life; the PCB traces, components, and screw-terminal connector block all appear intact with no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Berger Lahr |
Model: |
220642-00-01 |
MPN: |
LS 220642-00-01 C |
Type: |
Industrial Control PCB / Circuit Board |
SKU: |
46134 |
Revision: |
Rev C |
Compatible With: |
Singulus Skyline Injection Molding System |
Connector Type: |
Green Screw Terminal Block (dual-row, approx. 24-position) |
Main IC / Controller: |
Motorola XAA808 (14070B) |
Form Factor: |
Card / Module (PCB) |
Application: |
Injection Molding Machine Control |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes board with screw-terminal I/O connector attached |
Country/Region of Manufacture: |
Germany |
Condition Notes: |
Berger Lahr 220642-00-01 Singulus Skyline control PCB. Inspected and in good used condition; pulled from a working environment where it was in active use. No visible damage. Board and terminal connector intact. |
