Bay Networks

Bay Networks SRM-F 75001 Processor Module BLN BCN BN Platform w/ Install Manual

(No reviews yet) Write a Review
SKU:
14815
MPN:
75001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.40 LBS
Shipping:
Calculated at Checkout
  • Bay Networks SRM-F 75001 Processor Module – angled top view showing component side with ICs and edge connectors
  • Bay Networks SRM-F 75001 Processor Module – reverse angled top view showing back-side component layout and blue backplane connector
  • Bay Networks SRM-F 75001 close-up of barcode labels showing ACTS AB 024251 and part number P104276 RD 9836
  • Bay Networks SRM-F 75001 Processor Module – straight-on top view of full component side with visible ICs and connectors
  • Bay Networks SRM-F 75001 Processor Module – straight-on bottom view showing solder side traces and blue backplane connector
  • Bay Networks SRM-F 75001 – angled view of right end of board showing edge connectors and silkscreen markings 103791 A P12895
  • Bay Networks SRM-F 75001 – close-up of right end showing Xilinx ICs and blue 6-pin connector with board markings 103791 A P12895
  • Bay Networks SRM-F 75001 – angled view of solder side rear showing board text and component markings

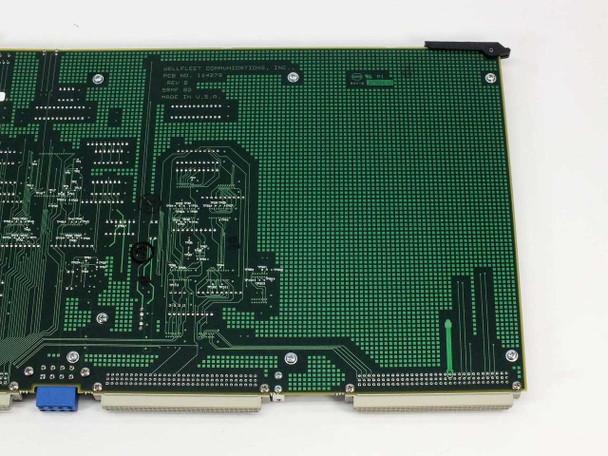

  • Bay Networks SRM-F 75001 – close-up of solder side corner showing printed board identification text and circuit traces
  • Bay Networks SRM-F and FRE/FRE-2 Processor Modules in BN Platforms – original Bay Networks installation manual included
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Bay Networks SRM-F 75001 Processor Module BLN BCN BN Platform w/ Install Manual

Processor module for Bay Networks backbone routing platforms. Manages forwarding and switching operations on BLN, BCN, and BN platform routers via backplane connection.

Specifications & What's Included

  • Model: SRM-F 75001 (MPN 75001, Secondary Model P104276)
  • Compatible platforms: Bay Networks BLN, BCN, BN (Backbone Node)
  • Interface: Backplane / BN Platform Bus
  • Form factor: Card/Module
  • Managed processor module
  • Includes original Bay Networks SRM-F/FRE/FRE-2 installation manual

Applications

Used in Bay Networks backbone routing systems for enterprise networks. The SRM-F processor module handled packet forwarding and route management functions in BN platform deployments during the 1990s and early 2000s. Compatible with BLN and BCN router configurations. Typical installations supported large network backbone architectures requiring managed switching and routing capabilities.

Condition: Used
This Bay Networks SRM-F 75001 Processor Module has been inspected and is in good used condition. The board is clean with no broken traces, damaged connectors, or missing components visible. Normal light surface wear consistent with careful prior use is present. The blue backplane connector is intact. Also included is the original Bay Networks printed installation manual titled "Installing SRM-F and FRE/FRE-2 Processor Modules in BN Platforms," which is in good condition with only light shelf wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Bay Networks
Model:
SRM-F 75001
MPN:
75001
Secondary Model:
P104276
Type:
Processor Module
SKU:
14815
Compatible With:
Bay Networks BLN, BCN BN Platform Routers
Form Factor:
Card/Module
Condition:
Used – Inspected, Good Condition
Seller Notes:
Includes original Bay Networks SRM-F/FRE/FRE-2 installation manual
Country/Region of Manufacture:
United States
Interface Type:
Backplane / BN Platform Bus
Management Type:
Managed
Platform:
Bay Networks BN (Backbone Node)
Condition Notes:
Bay Networks SRM-F 75001 Processor Module in good used condition. Board is clean, connectors intact, no visible damage. Includes original Bay Networks SRM-F/FRE/FRE-2 installation manual. Please contact us with any questions.
View AllClose
