Bausch & Lomb 0.7X-3X Stereo Microscope Boom Stand AO 10X Wide Field Eyepieces

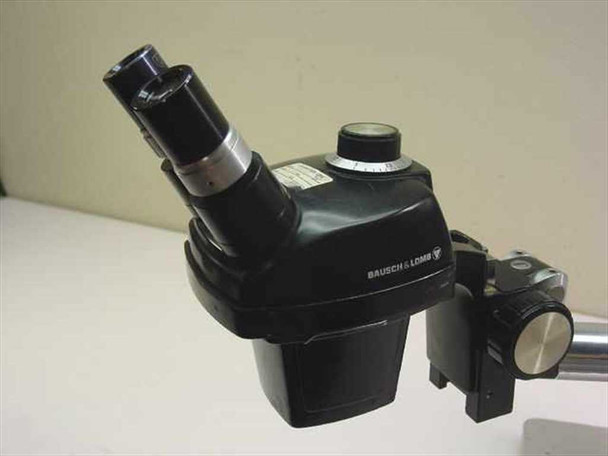

This Bausch & Lomb zoom stereo microscope covers a 0.7X–3X objective zoom range and, paired with the included AO 10X Wide Field eyepieces, delivers a total magnification range of 7X–30X. The microscope head mounts on a sturdy boom stand that allows free positioning over a work surface without a fixed stage base in the way. It has been tested and is in very good working condition.
Specifications & What's Included
- Manufacturer: Bausch & Lomb
- Type: Zoom stereo binocular microscope
- Objective zoom range: 0.7X–3X (labeled on body)
- Eyepieces: Two AO (American Optical) 10X Wide Field — Cat. 145
- Total magnification range: 7X–30X
- Head type: Binocular

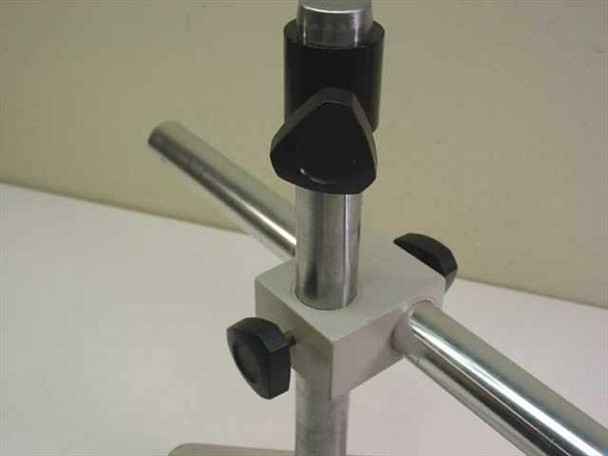

- Stand: Boom stand with heavy cast base, vertical column, horizontal arm, and height/angle locking clamps

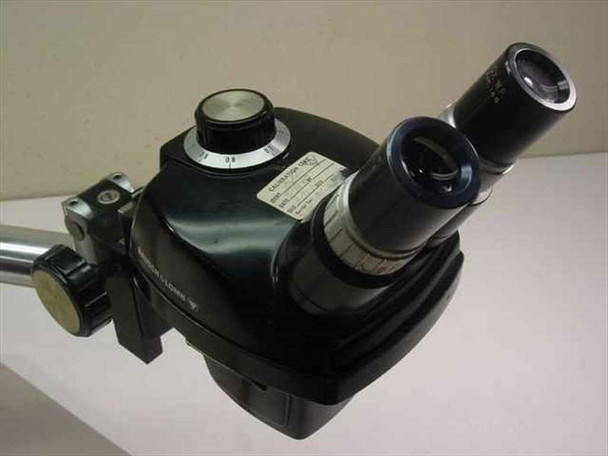

- Zoom control: Single side-mounted dial with graduated magnification scale
- Illumination: No built-in illuminator — external illumination required
- Included: Microscope head, boom stand assembly, two AO 10X WF eyepieces
Applications
Bausch & Lomb zoom stereo microscopes of this type were widely used in electronics assembly, PCB inspection, watch and jewelry repair, biological specimen examination, and precision manufacturing — and they remain in active use today for the same purposes. The boom stand configuration is especially valued in production and rework environments because it positions the optics over a work area without a base plate occupying the bench, leaving hands and tools fully free beneath the objective. The 7X–30X total magnification range covers most close-inspection tasks: at lower magnifications you get a wide field of view for component placement and soldering; at higher magnifications, fine detail on ICs, connectors, or specimens becomes clearly visible. Bausch & Lomb produced this series from the 1960s through the 1980s, and these instruments are known for robust all-metal construction and high-quality optics that age well. The AO (American Optical) 10X Wide Field eyepieces included here are a compatible, well-regarded accessory from the same era.

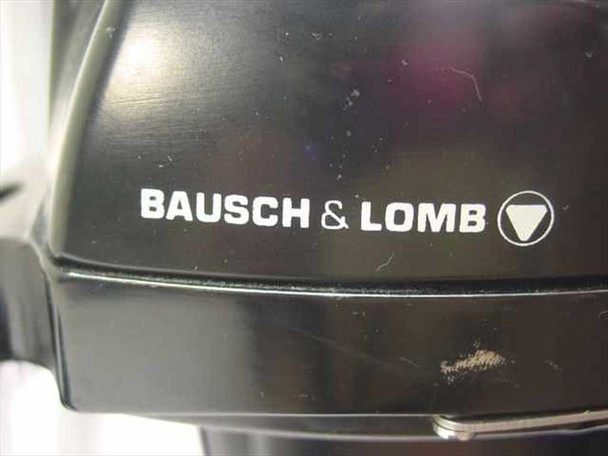

This Bausch & Lomb 0.7X-3X Stereo Microscope with Boom Stand has been tested and is in very good working condition. The zoom mechanism operates smoothly across the full 0.7X–3X range, and both AO 10X Wide Field eyepieces (Cat. 145) are included and in good shape. The boom stand is solid and all clamps and locks function as expected. The black housing shows light scuffing and some surface scratches, most notably on the zoom dial face and the underside of the body — typical of a used lab instrument. Overall a clean, functional unit ready for inspection or assembly work. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Bausch & Lomb |
Model: |
0.7X-3X Stereo Microscope |
Type: |
Zoom Stereo Microscope |
SKU: |
31078 |
Zoom Range: |
0.7X–3X |
Total Magnification Range: |
7X–30X (with 10X eyepieces) |
Eyepieces: |
Two AO 10X Wide Field (Cat. 145) |
Eyepiece Magnification: |
10X Wide Field |
Stand Type: |
Boom Stand |
Form Factor: |
Benchtop / Boom Mount |
Head Type: |
Binocular |
Illumination: |
External (no built-in illuminator) |
Seller Notes: |
Includes boom stand and two AO 10X Wide Field eyepieces (Cat. 145) |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Bausch & Lomb 0.7X-3X Stereo Microscope with Boom Stand has been tested and is in very good working condition. Zoom and clamps function well. Housing shows light scuffing and scratches on the zoom dial. Includes two AO 10X WF eyepieces. |
