Bausch & Lomb
-

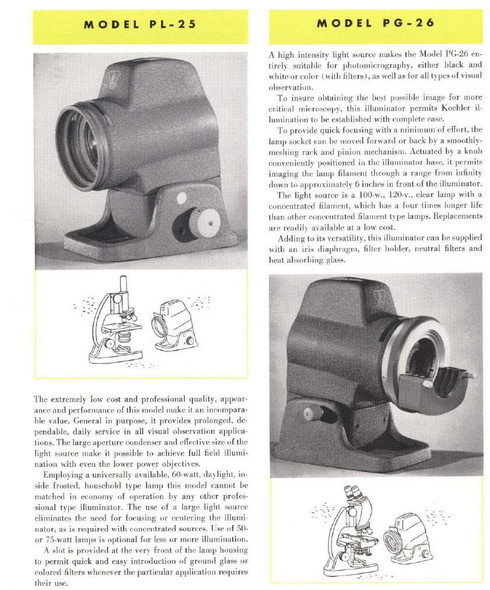

Bausch & Lomb 31-33-26 Microscope Illuminator 100W 115V Projection Light PG-26
Bausch & Lomb
$95.00Was: $200.00Bausch & Lomb 31-33-26 Microscope Illuminator 100W 115V Projection Light PG-26This is a vintage Bausch & Lomb Type 31-33-26 microscope illuminator — also identified in original B&L literature as the...42216- SKU:
- 42216
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Bausch & Lomb
- Model:
- 31-33-26
- MPN:
- 31-33-26
- Type:
- Microscope Illuminator / Projection Light Source
- SKU:
- 42216
- Wattage:
- 100W (Max. Lamp Watts Each)
- Voltage:
- 115V
- Current Rating:
- 9A
- Frequency:
- 50-60 Hz
- Lamp Type:
- 100W 115V Concentrated Filament (Clear)
- Illumination Method:
- Koehler / Concentrated Filament Projection
- Series / Sub-Model:
- PG-26
- Application:
- Microscopy — photomicrography, visual observation
- Compatible With:
- Bausch & Lomb compound microscopes
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Rochester, NY, USA
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only; includes attached power cord. Tested and in working order.
- CSA Approval:
- Yes (CSA App. No. listed on nameplate)
- Form Factor:
- Benchtop / Freestanding
- Condition Notes:
- Bausch & Lomb 31-33-26 microscope illuminator. Tested and in working order — powers on and projects light. Housing shows age-related wear and surface scuffs. Original power cord present. No lamp included.
$95.00Was: $200.00 -

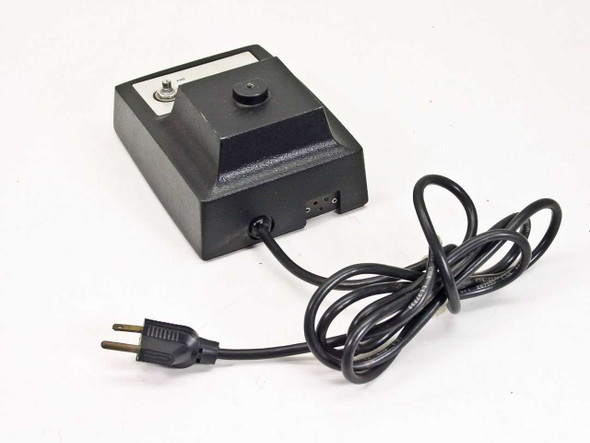

Bausch & Lomb 31-35-28 Microscope Illuminator Transformer 120V 3.9-6.6V 25W
Bausch & Lomb
$35.00Was: $70.00Bausch & Lomb 31-35-28 Microscope Illuminator Transformer 120V 3.9-6.6V 25WStep-down transformer for Bausch & Lomb microscope illuminators. Converts 120V AC input to variable low-voltage...27965- SKU:
- 27965
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Bausch & Lomb
- Model:
- 31-35-28
- MPN:
- 31-35-28
- Type:
- Microscope Illuminator Transformer
- SKU:
- 27965
- Primary Voltage:
- 120V AC
- Input Frequency:
- 50/60 Hz
- Input Power:
- 25 Watts
- Secondary Voltage:
- 3.9–6.6V
- Secondary Output 1:
- 6.4V at 3.33 Amps
- Secondary Output 2:
- 6.6V at 1.67 Amps
- Brightness Control:
- 3-position toggle switch (Off, 1, 2, 3)
- Output Connector:
- 4-pin low-voltage output connector
- Compatible With 1:
- Bausch & Lomb Illuminator 31-32-42
- Compatible With 2:
- Bausch & Lomb Illuminators 31-33-33, 31-33-34, 31-33-35
- Compatible With 3:
- Bausch & Lomb Illuminators 31-33-04, 31-33-60
- Compatible With 4:
- Bausch & Lomb Illuminators 31-34-28, 31-33-39
- Form Factor:
- Benchtop / Freestanding
- Country/Region of Manufacture:
- United States
- Certifications:
- UL Listed (385B)
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only — no additional accessories. Tested and in working order.
- Condition Notes:
- Bausch & Lomb 31-35-28 microscope illuminator transformer. Tested and in good working order. Light surface wear to the metal housing consistent with normal bench use. Power cord and output connector present and undamaged.
$35.00Was: $70.00
