Description
Avaya BI02E1 4-Pin Patch Panel Modules Telecom Cross-Connect 19" Rack Mount Lot 4
This listing includes four Avaya BI02E1 4-pin patch panel modules installed in a 19-inch rackmount cross-connect enclosure. The modules provide structured wiring termination and cross-connection for Avaya telecom systems, allowing voice and data circuits to be patched, rerouted, or reassigned at the distribution frame level without rewiring field cabling.
Specifications & What's Included
- Manufacturer: Avaya
- Part Number (Module): BI02E1
- Connector Type: 4-pin patch (proprietary Avaya patch format)
- Number of Modules: 4 (all four installed in enclosure)
- Enclosure Form Factor: 19" rackmount
- Front face: rows of 4-pin RJ-style patch jacks per module with color-coded pin labeling (visible in photos)
- Interior: color-coded wiring termination rows with numbered pin designations (B1–B6 visible on punchdown side)

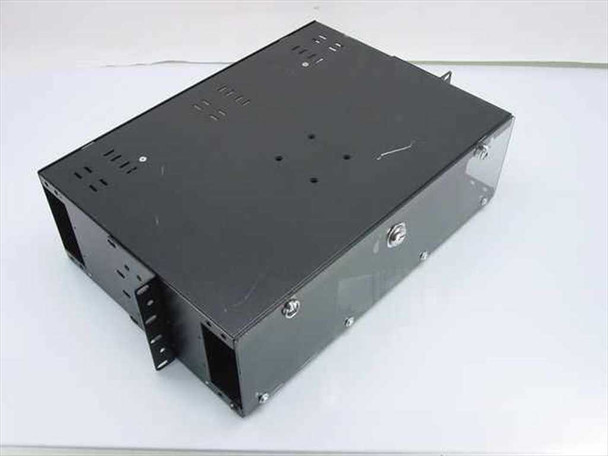

- Enclosure: black steel sheet-metal housing with ventilation slots, rack ears, and locking latch
- Includes the four BI02E1 modules mounted in the 19" rack enclosure
Applications
Avaya BI02E1 patch modules are used in structured telecom cross-connect frames, typically found in enterprise PBX and voice distribution environments built around Avaya (formerly Lucent/AT&T) wiring systems. They serve as the interface point between station cabling and the PBX or key system, allowing technicians to redirect extensions, test individual lines, or reconfigure circuits by moving patch cords rather than re-terminating wires. These modules are associated with the Avaya/Lucent 110-style and proprietary cross-connect architecture used extensively in corporate telephony infrastructure from the 1990s through the 2000s and still maintained in many legacy enterprise voice environments today. They are commonly sought as replacement or expansion modules for existing Avaya cross-connect frames.
These Avaya BI02E1 4-pin patch panel modules and their 19" rack enclosure have been inspected and are in good used condition. The assembly was pulled from a working telecom environment where it was actively in use. The four patch modules show normal handling wear consistent with field service; the rack enclosure housing shows light surface scuffs and scratches typical of installed equipment. All four modules appear complete with their color-coded pin rows intact as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Avaya |
Model: |
BI02E1 |
MPN: |
BI02E1 |
SKU: |
23198 |
Type: |
Telecom Patch Panel Module / Cross-Connect Rack |
Number of Modules: |
4 |
Connector Type: |
4-Pin Patch |
Form Factor: |
19" Rackmount Enclosure |
Compatible With: |
Avaya telecom cross-connect systems |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes four Avaya BI02E1 4-pin patch panel modules installed in 19" rack enclosure |
Condition Notes: |
Four Avaya BI02E1 4-pin patch panel modules in 19" rack enclosure. Inspected and in good used condition; pulled from a working telecom environment. Normal cosmetic wear. All four modules present and appear complete. |
