Description
Astrocom 4100 16P STAT SA RS232 Software Defined Multiplexer SDM 120/240V
Statistical RS-232 software-defined multiplexer with 16 ports for data communications in industrial and telecom environments. Routes and manages serial data traffic across multiple connections.
Specifications & What's Included
- Model: 4100, Hardware Revision REV-J, Firmware V2.4
- 16 RS-232 ports with mixed connectors (RJ-45, DB-9, DB-25)
- Supervisory port and dedicated MUX port (DB-25)
- Power: 120/240VAC, 50/60Hz, 2.0A single-phase
- Desktop form factor; UL Listed (E68571)
Applications
Software-defined multiplexers like this unit were used in legacy telecommunications and industrial control networks to consolidate serial data streams and manage multi-point communications. Commonly deployed in data centers, network hubs, and equipment control systems through the 1990s–2000s. Compatible with RS-232 serial devices and systems requiring statistical multiplexing of asynchronous data channels.
Condition: For Parts or Not Working

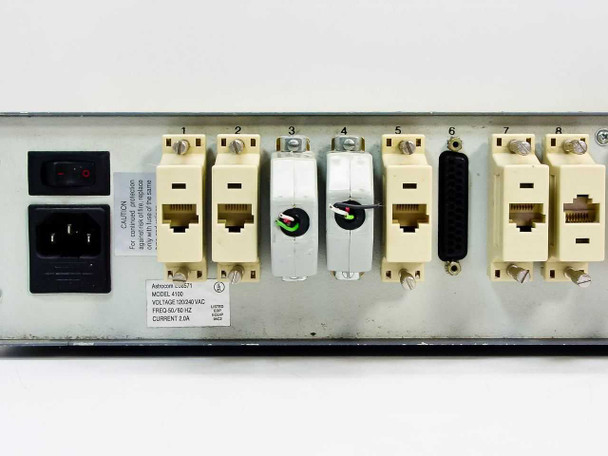

This Astrocom 4100 16-Port RS232 Statistical Multiplexer is being sold AS-IS for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The unit powers on (the front panel display shows 'SDM 4100 FC V2.4') based on what is visible in the photos, but no further testing has been performed and no functionality is claimed or warranted. The chassis shows normal cosmetic wear consistent with prior use. The rear panel includes a mix of RJ-45 and DB-style connectors across the 16 ports, a MUX port, and a SUPERVISORY port, all appearing intact in the photos. Please view our photo set and contact us if you have any questions.
This Astrocom 4100 16-Port RS232 Statistical Multiplexer is being sold AS-IS for parts or repair. It is not guaranteed to be functional and has not been tested at our facility. The unit powers on (the front panel display shows 'SDM 4100 FC V2.4') based on what is visible in the photos, but no further testing has been performed and no functionality is claimed or warranted. The chassis shows normal cosmetic wear consistent with prior use. The rear panel includes a mix of RJ-45 and DB-style connectors across the 16 ports, a MUX port, and a SUPERVISORY port, all appearing intact in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Astrocom |
Model: |
4100 |
MPN: |

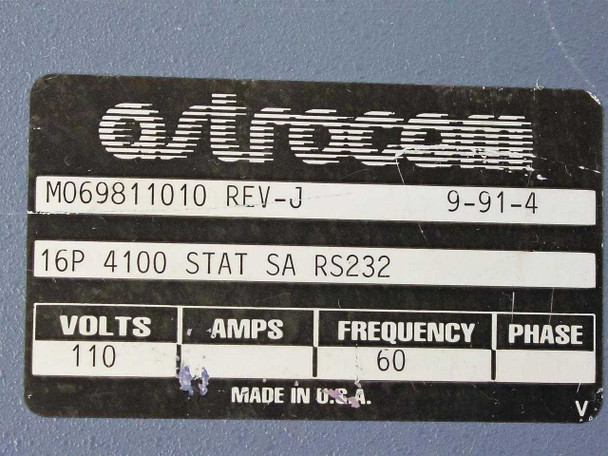

M069811010 |
Secondary Model: |
16P 4100 STAT SA RS232 |
Type: |
Statistical RS-232 Software Defined Multiplexer |
SKU: |
38642 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS for parts or repair. No functionality guaranteed. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop / Tabletop |
Power Requirements: |
120/240VAC, 50/60Hz, 2.0A |
Voltage: |
120/240 VAC |
Current Rating: |
2.0A |
Frequency: |
50/60 Hz |
Number of Ports: |
16 |
Interface Type: |
RS-232 |
Firmware Version: |
V2.4 (SDM 4100 FC V2.4) |
Hardware Revision: |
REV-J |
Connector Types: |
RJ-45, DB-25, DB-9 (mixed per port) |
Supervisory Port: |
Yes — labeled SUPERVISORY on rear panel |
MUX Port: |
Yes — DB-25 labeled MUX on rear panel |
UL Listed: |
Yes — E68571, EDP Equip 95C2 |
Phase: |
Single Phase |
Condition Notes: |
Astrocom 4100 16P RS232 Multiplexer sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Display visible in photos. Normal cosmetic wear. Please contact us with questions. |
