Description
ASCO 8210G34N 2-Way Brass 1/2" Solenoid Valve 150PSI 10.1W Red-Hat 120V NPT
The ASCO 8210G34N is a 2-way normally closed solenoid valve from ASCO's Red-Hat II series, manufactured by Automatic Switch Co. of Florham Park, New Jersey. It features a brass body with 1/2" NPT connections and is oxygen-rated to 150 PSI. The solenoid coil operates on 120V/60Hz (also rated 110V/50Hz) at 10.1 watts and includes ASCO's signature red manual override button on top of the solenoid enclosure.
Specifications & What's Included
- Valve Catalog No.: 8210G34N
- Series: ASCO Red-Hat II
- Configuration: 2-Way, Normally Closed
- Body Material: Brass
- Pipe Size: 1/2" NPT
- Max Pressure (Oxygen): 150 PSI
- Media Compatibility: Oxygen, Air, Inert Gas, Water, Light Oil
- Coil Voltage: 120V/60Hz; 110V/50Hz
- Power Consumption: 10.1 Watts
- Coil Part No.: 238610-032D (MP-C-080)
- Rebuild Kit No.: 302334-N
- Enclosure Types: NEMA 2, 3, 3S, 4 & 4X
- Manufacturer: Automatic Switch Co. (ASCO), Florham Park, N.J., U.S.A.
- Includes: Valve with solenoid coil, wiring harness (red/green/white leads), and multi-pin electrical connector
Applications
ASCO Red-Hat II solenoid valves are widely used in industrial fluid and gas control systems to start, stop, or divert flow automatically or via manual override. The 8210G34N's brass body and oxygen-rated 150 PSI rating make it suitable for oxygen service, compressed air systems, inert gas lines, water control, and light oil applications. NEMA 4X enclosure ratings allow use in washdown and outdoor environments. These valves are common in manufacturing, process control, laboratory gas distribution, HVAC systems, and medical gas supply applications. The Red-Hat II name refers to ASCO's manual override feature — the red button allows the valve to be opened by hand without energizing the coil, which is useful for system testing and emergency override. ASCO (Automatic Switch Company) has produced solenoid valves of this type since the early twentieth century; this unit dates to July 1996 based on its date code.

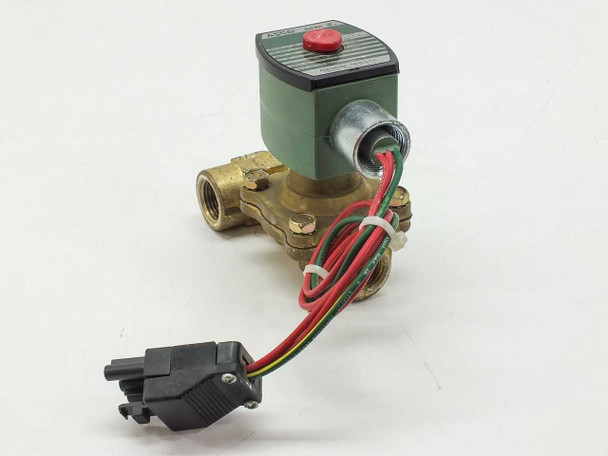

This ASCO 8210G34N Red-Hat II 2-Way Brass Solenoid Valve has been inspected and is in good used condition. It was pulled from a working environment where it was previously in use and functional. The brass body shows normal service wear, and a green corrosion streak is visible on the side of the solenoid coil housing (visible in photos). The wiring harness and multi-pin connector are intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ASCO |
Model: |
8210G34N |
MPN: |
8210G34N |
Secondary Model: |
238610-032D |
Type: |
2-Way Solenoid Valve |
SKU: |
47735 |
Valve Series: |
Red-Hat II |
Rebuild Kit No.: |
302334-N |
Coil Part Number: |
238610-032D |
Body Material: |
Brass |
Pipe Size: |
1/2 in |
Connection Type: |
NPT |
Valve Configuration: |
2-Way |
Max Pressure: |
150 PSI (Oxygen) |
Power Consumption: |
10.1 Watts |
Voltage: |
120V/60Hz, 110V/50Hz |
Enclosure Rating: |
NEMA 2, 3, 3S, 4, 4X |
Media Compatibility: |
Oxygen, Air, Inert Gas, Water, Light Oil |
Manufacturer: |
Automatic Switch Co. (ASCO) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes solenoid valve with wiring harness and multi-pin connector. No mounting hardware. |
Condition Notes: |
This ASCO 8210G34N Red-Hat II brass solenoid valve has been inspected and is in good used condition. Pulled from working service; functional. Green corrosion streak on coil housing visible in photos. Wiring harness and connector intact. |
