ARD

ARD EQ/Filter RF Signal Equalizer Booster dB MHz BNC Single Diff EQ DFF 120VAC

(No reviews yet) Write a Review
SKU:
33053
MPN:
EQ/Filter
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

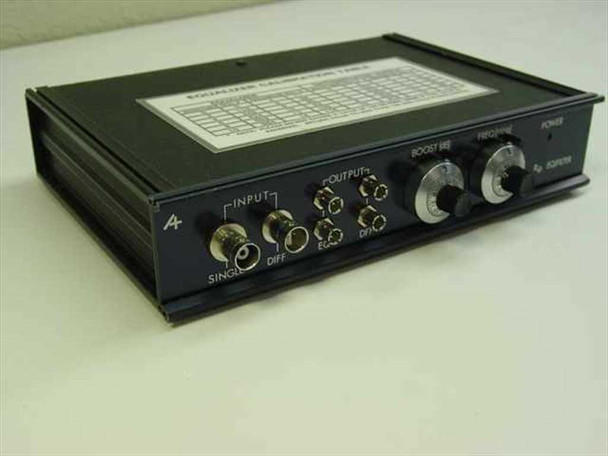

  • ARD RD EQ/Filter RF signal equalizer front and top panel view showing BNC input/output connectors, dB Boost and MHz Frequency control knobs, and calibration table label
  • ARD EQ/Filter front panel close-up showing BNC Single and Diff inputs and four BNC EQ and DFF outputs with labeled connectors
  • ARD EQ/Filter right-side panel showing BOOST dB and FREQ MHz adjustment knobs and POWER indicator LED with RD EQ/FILTER branding
  • ARD EQ/Filter rear panel showing IEC AC power inlet, rocker power switch, and LINE INPUT 120VAC 1/4 AMP rating label
  • ARD EQ/Filter Equalizer Calibration Table label showing Boost dB and Freq MHz dial settings for Equalizer and Differentiated Output modes
$130.00
Was: $250.00
Current Stock: 1

Sold Out

Description

ARD EQ/Filter RF Signal Equalizer Booster dB MHz BNC Single Diff EQ DFF 120VAC

Benchtop RF signal equalizer and filter unit designed to condition and boost broadband RF signals. Features adjustable equalization and differentiation outputs via front-panel controls.

Specifications & What's Included

  • Model: ARD RD EQ/Filter
  • Power: 120VAC, 1/4 Amp
  • Input: BNC single-ended and differential connectors
  • Output: 4x BNC (EQ and DFF)
  • Adjustable boost range via front-panel dB knob
  • Adjustable frequency range via front-panel MHz knob (max 130)
  • Calibration table label on top panel
  • Unit only; no accessories included

Applications

RF signal equalizers are used in telecommunications, broadcast, and test environments to compensate for signal loss over cable runs and condition broadband signals. This type of equipment was commonly deployed in telecom infrastructure and RF test setups for signal restoration and filtering purposes.

Condition: Used
This ARD RD EQ/Filter RF Signal Equalizer has been inspected and is in good used condition. The chassis and front panel are clean with minor surface wear consistent with bench use. The BNC input and output connectors appear intact and undamaged. The BOOST [dB] and FREQ [MHz] control knobs are present and turn smoothly. The Equalizer Calibration Table label on the top panel is legible. The rear AC power inlet and rocker switch show no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ARD
Model:
RD EQ/Filter
MPN:
RD EQ/Filter
Type:
RF Signal Equalizer / Filter
SKU:
33053
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included. Calibration table label present on top.
Power Requirements:
120VAC, 1/4 Amp
Input Connectors:
BNC — Single-Ended and Differential (DIFF)
Output Connectors:
4x BNC — EQ and DFF outputs
Boost Range:
Adjustable via front-panel BOOST [dB] knob
Frequency Range:
Adjustable via front-panel FREQ [MHz] knob
Frequency Caution:
Do not exceed 130 on FREQ knob; cycle power if exceeded
Form Factor:
Benchtop / Desktop
Signal Type:
RF / Broadband
Output Types:
Equalized (EQ) and Differentiated (DFF)
Calibration Table:
Equalizer Calibration Table label affixed to top panel
Country/Region of Manufacture:
United States
Condition Notes:
This ARD RD EQ/Filter RF Signal Equalizer has been inspected and is in good used condition. Chassis and connectors show minor bench wear. BNC inputs/outputs appear intact. Control knobs present and functional. 120VAC.
View AllClose

Related Products

Related Products

Steel enclosure RF equalizer front-left angle view showing EQUALIZER label, DIFF BNC connectors, FREQ MHz dial, and BOOST DB knob Steel enclosure RF equalizer front panel close-up showing EQUALIZER label, four DIFF BNC inputs, numeric frequency counter display, and BOOST DB rotary dial
Add to Cart
Quick view

Steel Enclosure RF Equalizer FREQ MHz Boost dB Diff BNC 5x4x3 w/ Power Supply

Steel Enclosure

$75.00
Was: $150.00
Steel Enclosure RF Equalizer FREQ MHz Boost dB Diff BNC 5x4x3 w/ Power SupplyThis is a custom-built steel enclosure measuring approximately 5x4x3 inches housing a self-contained RF equalizer circuit...
33057
SKU:
33057
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Unbranded
Model:
Steel Enclosure RF Equalizer 5x4x3
Type:
RF Equalizer / IC Test Fixture Enclosure
SKU:
33057
Condition:
As-Is / For Parts or Not Working
Enclosure Dimensions:
5 x 4 x 3 inches
Enclosure Material:
Steel
Controls:
Freq. MHz dial, Boost dB 10-turn pot, DIFF switch
Front Panel Connectors:
4x BNC (differential inputs)
Side Connectors:
BNC output, 4-pin circular connector
Rear Panel:
IEC AC inlet, fuse holder, power indicator LED
Internal Power Supply Brand:
Computer Products / Boschert
Internal Power Supply Model:
HM530
PSU Output Voltage:
5V DC
PSU Output Current:
3000 mA (3A)
PSU Input Voltage:
115 VAC
PSU Input Frequency:
50/400 Hz
PSU Input Current:
320 mA
Line Filter Brand:
Corcom
Seller Notes:
Sold for parts. Includes internal power supply, opto coupler, IC test fixture, 10-turn potentiometers, and line filter.
Form Factor:
Benchtop / Desktop Enclosure
Condition Notes:
Unbranded steel enclosure RF equalizer (5x4x3) sold AS-IS for parts. Cosmetically good; all internal components present (HM530 PSU, opto coupler, IC test fixture, line filter, potentiometers). Not tested. No functionality guarantee.
Pomona Electronics F-033 1.25 MHz Band Pass Filter — angled top view showing BNC IN and OUT connectors, toggle switch, and tuning knob on teal metal enclosure Pomona Electronics F-033 1.25 MHz Band Pass Filter — front panel view showing ON toggle switch, 1.25 MHZ label, tuning knob, and BNC IN/OUT connectors with F-033 designation
Add to Cart
Quick view

Pomona Electronics 1.25 MHz Band Pass Filter BNC In/Out F-033 RF Signal

Pomona Electronics

$75.00
Was: $150.00
Pomona Electronics 1.25 MHz Band Pass Filter BNC In/Out F-033 RF SignalBenchtop band pass filter designed to isolate and pass RF signals at 1.25 MHz while attenuating out-of-band frequencies...
32970
SKU:
32970
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
Pomona Electronics
Model:
F-033
MPN:
F-033
Type:
Band Pass Filter
SKU:
32970
Center Frequency:
1.25 MHz (peak at 1.265 MHz)
Insertion Loss:
21.8 dB
-3 dB Bandwidth:
1.24 MHz to 1.28 MHz
-20 dB Limits:
1.18 MHz to 1.36 MHz
Connector Type:
BNC (IN and OUT)
Number of Ports:
2 (1x IN, 1x OUT)
Form Factor:
Benchtop / Panel-Mount Box
On/Off Switch:
Yes — toggle switch on front panel
Enclosure:
Metal box with mounting flanges
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only — no additional accessories included
Condition Notes:
Pomona Electronics F-033 1.25 MHz Band Pass Filter. Inspected and in good condition. Metal enclosure shows light surface wear; BNC connectors and toggle switch appear clean and undamaged.

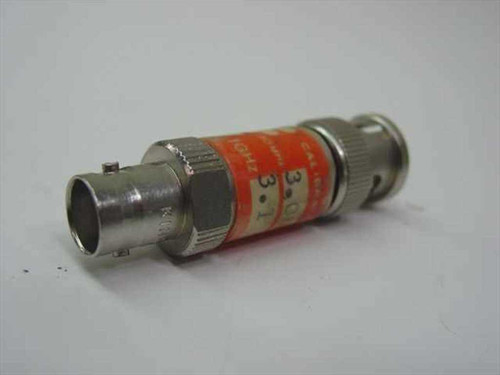

Texscan FP-50 3dB BNC coaxial attenuator — angled view showing BNC male connector end and orange label Texscan FP-50 3dB BNC coaxial attenuator — opposite angle showing BNC female connector end and label markings
