Applied Magnetics EL97083713 AB Alignment Assembly Magnetic Tape Head Fixture

(No reviews yet) Write a Review
SKU:
22574
MPN:
EL97083713
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout
  • Applied Magnetics EL97083713 AB Alignment Assembly mounted on base plate, resting on top of closed wooden carrying case — front view
  • Applied Magnetics EL97083713 dual alignment fixture modules on yellow base plate — front view out of case, accessories visible at left
  • Applied Magnetics EL97083713 alignment assembly — close-up of single alignment post/pin component with machined black anodized base plate, labeled A

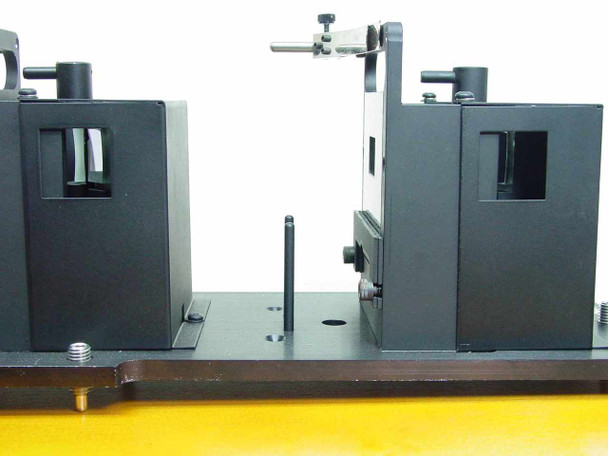

  • Applied Magnetics EL97083713 dual alignment modules on base plate — close-up of gap between the two fixture blocks showing apertures and guide pins

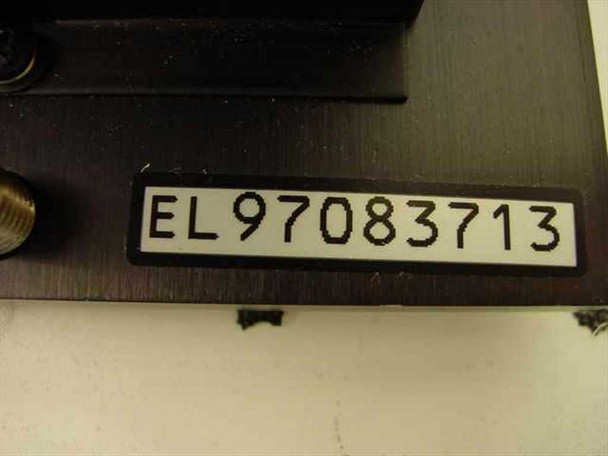

  • Applied Magnetics EL97083713 — close-up of part number label reading EL97083713 on the fixture body

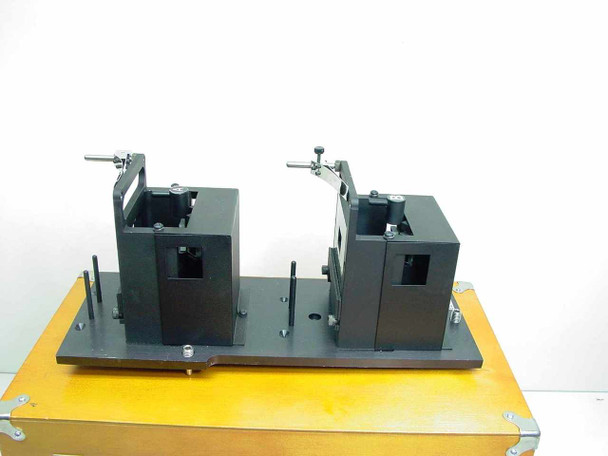

  • Applied Magnetics EL97083713 AB Alignment Assembly on base plate atop wooden case — three-quarter front view showing both fixture modules and adjustment hardware
  • Applied Magnetics EL97083713 — close-up view between the two fixture blocks showing a cassette tape inserted into the assembly for alignment reference
  • Applied Magnetics EL97083713 AB Alignment Assembly stored inside open wooden carrying case with foam padding — top view
  • Applied Magnetics EL97083713 dual alignment fixture modules on base plate — rear three-quarter view showing adjustment knobs and guide rod hardware

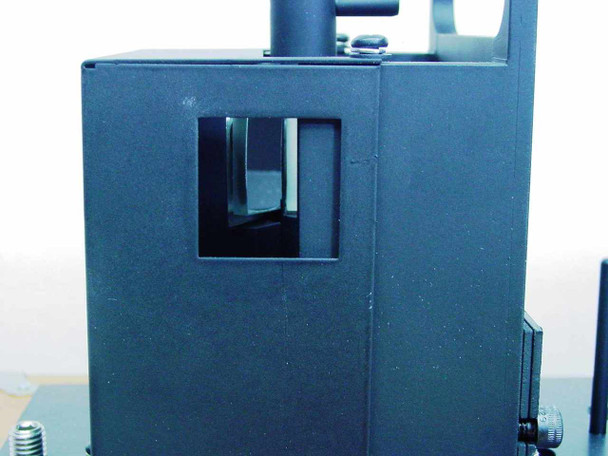

  • Applied Magnetics EL97083713 — close-up of single alignment module aperture showing internal mirror/prism element and fine adjustment hardware
$111.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Applied Magnetics EL97083713 AB Alignment Assembly Magnetic Tape Head Fixture Kit

This is a magnetic tape head alignment assembly used for calibrating and positioning tape heads in dual-head configurations. The fixture provides AB position alignment capability for tape drive maintenance and setup.

Specifications & What's Included

  • Model: EL97083713
  • Type: Magnetic Tape Head Alignment Assembly
  • Configuration: Dual head fixture modules on shared base plate
  • Includes: Two alignment head modules, base plate, wooden carrying case
  • Manufactured: United States
  • Form Factor: Benchtop/Portable

Applications

This alignment assembly was used in magnetic tape drive maintenance and calibration workflows. It supports AB head positioning adjustments, a standard requirement in multi-head tape systems for ensuring proper read/write head alignment. The portable design with carrying case made it suitable for field service or lab environments where tape drive heads required regular calibration and verification.

Condition: Used
This Applied Magnetics EL97083713 AB Alignment Assembly has been inspected and is in good condition. Both alignment fixture modules appear complete and intact on the base plate, with no obvious damage to the precision machined components. The anodized black finish on the fixture bodies shows light handling wear consistent with lab use. The wooden carrying case is solid and functional with working latches and handle, and the foam interior padding is present and holds the assembly securely. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Applied Magnetics
Model:
EL97083713
MPN:
EL97083713
Type:
Magnetic Tape Head Alignment Assembly
SKU:
22574
Condition:
Used – Inspected and in Good Condition
Configuration:
Dual head fixture modules on shared base plate
Includes:
Two alignment head modules, base plate, wooden carrying case
Case Type:
Wooden carrying case with latches and handle
Application:
Magnetic tape head alignment / AB position calibration
Seller Notes:
Includes two alignment modules on base plate in fitted wooden case
Form Factor:
Benchtop / Portable
Country/Region of Manufacture:
United States
Condition Notes:
Applied Magnetics EL97083713 AB Alignment Assembly — inspected, in good condition. Both fixture modules intact on base plate. Wooden case with latches and foam padding present and functional. Please contact us with any questions.
View AllClose

Related Products

Related Products

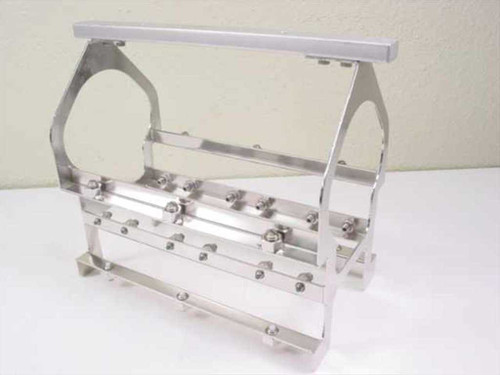

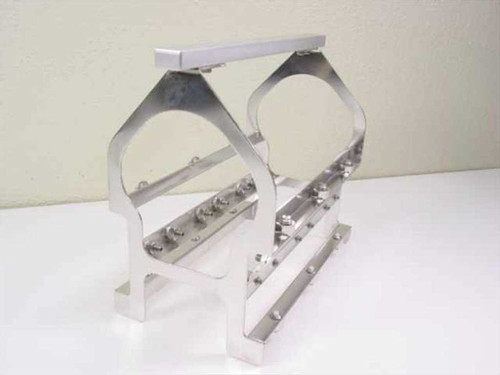

Applied Magnetics NL Block Carrier – front three-quarter view showing polished aluminum frame, cylindrical spool cradle, and rows of adjustment bolts Applied Magnetics NL Block Carrier – rear three-quarter view showing both side frames, spool cradle opening, and bolt rail detail
