Description

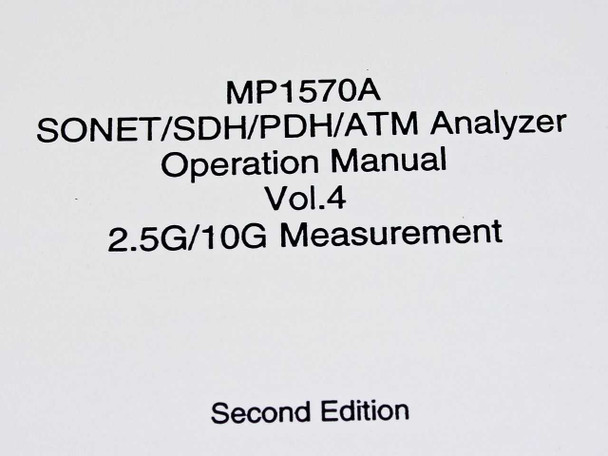

Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer Operation Manual Vol.4 2nd Ed
This is the original printed Operation Manual for the Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer, Volume 4: 2.5G/10G Measurement, Second Edition. Volume 4 covers the screens, operating procedures, and remote control functions for the generation and analysis of 2.5G (STM-16) and 10G (STM-64) signals on the MP1570A platform.
Specifications & What's Included
- Manufacturer: Anritsu
- For instrument: MP1570A SONET/SDH/PDH/ATM Analyzer
- Document type: Operation Manual
- Volume: Vol. 4 – 2.5G/10G Measurement
- Edition: Second Edition
- Coverage: Screen contents, operation procedures, and remote control for 2.5G (STM-16) and 10G (STM-64) signal generation and analysis
- Remote control interfaces covered: GPIB and RS-232C (MP1570A is compatible with SPCI)
- Format: Printed, bound manual
- Language: English
- Manual only – instrument not included
Applications

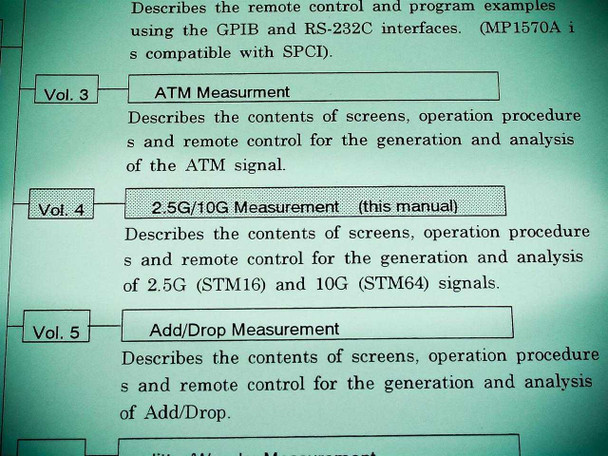

The Anritsu MP1570A is a high-capacity SONET/SDH/PDH/ATM analyzer designed for testing and verifying transmission systems at rates from PDH through STM-64 (10 Gbps). It was widely used by telecom carriers, equipment manufacturers, and network testing labs for generating and analyzing synchronous digital hierarchy (SDH) and SONET signals during the buildout of high-capacity fiber-optic networks in the late 1990s and 2000s. Volume 4 specifically addresses 2.5G and 10G measurement — the STM-16 and STM-64 signal rates that formed the backbone of long-haul and metro optical transport. Technicians and engineers working on legacy Anritsu MP1570A instruments use original operation manuals like this to guide setup, measurement configuration, and remote control programming via GPIB or RS-232C. This volume is one of a multi-volume set; other volumes cover topics such as basic operation, remote programming, ATM measurement, and Add/Drop measurement.
This Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer Operation Manual Vol. 4 (2.5G/10G Measurement, Second Edition) has been inspected and is in good used condition. The cover shows light shelf wear consistent with normal storage and handling. Pages are present and legible with no water damage or heavy marking noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Anritsu |
Model: |
MP1570A |
MPN: |
MP1570A |
Type: |
Operation Manual |
SKU: |
37460 |
Document Title: |
SONET/SDH/PDH/ATM Analyzer Operation Manual Vol. 4 |
Document Subject: |
2.5G/10G Measurement (STM16 and STM64 signals) |
Edition: |
Second Edition |
Volume: |
Vol. 4 |
For Use With / Compatible: |
Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer |
Language: |
English |
Format: |
Printed / Bound Manual |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Manual only; no instrument included. |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer Operation Manual Vol. 4, Second Edition. Inspected and in good used condition. Cover has light shelf wear; pages present and legible. |
