Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer MU150000A Opt 02 11 For Parts
Benchtop protocol analyzer for SONET, SDH, PDH, and ATM networks. Supports signal rates from 1.5 Mbps to 10 Gbps with modular architecture for flexible deployment.
Specifications & What's Included
- MU150000A 2.5G/10G module
- MP0122A plug-in card (1.5/45/52M SONET/SDH/PDH/ATM)
- MM100174A GPIB/RS-232C interface module
- MM100176A power supply module
- GPIB and RS-232C connectivity
- Color LCD display with front-panel LED alarm indicators

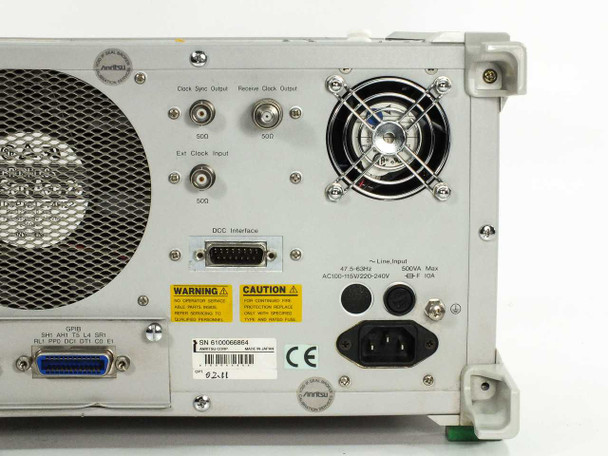

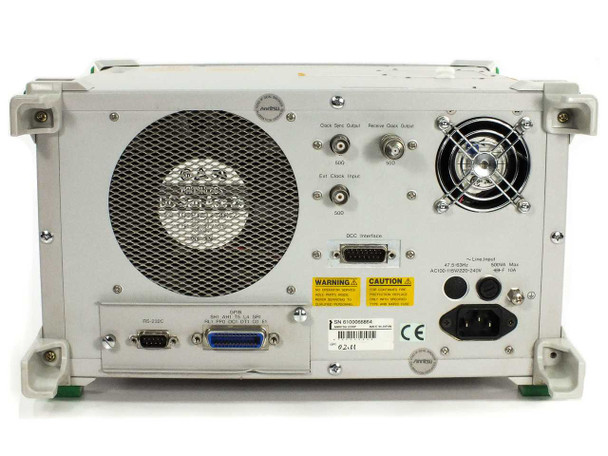

- DCC interface, clock sync output, receive clock output, and external clock input (rear panel)
- AC100–240V, 47.5–63 Hz, 500VA maximum
Applications
Used in telecom network operations centers and field installations for protocol analysis and troubleshooting of carrier-class voice and data networks. Compatible with legacy SONET/SDH transport systems, PDH multiplexers, and ATM switching environments. Historically deployed by service providers for performance monitoring, signal integrity verification, and protocol compliance testing on long-haul and metro optical circuits.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This Anritsu MP1570A SONET/SDH/PDH/ATM Analyzer is being sold AS-IS for parts or repair due to known operational faults. When powered with all internal connectors seated, the unit enters a continuous power-cycle loop and fails to boot. The only condition under which it boots to its operating system is with two specific internal connectors disconnected — and even then, the LCD displays a mirror-reversed image that is only readable when viewed in a mirror. The unit is complete with its MU150000A 2.5G/10G module, MP0122A 1.5/45/52M plug-in card, MM100174A GPIB/232C interface module (Option 02), MM100176A power supply module, and Option 11 (SONET). A "DO NOT USE — OUT OF CALIBRATION" sticker is affixed to the front panel. The unit is sold in its entirety as a parts or repair candidate with no warranty of functionality. Please view our photo set and contact us if you have any questions.
