Description
Anritsu KD8125AW Metal Detector KD1125AW Head 350mm Belt 125mm AS-IS

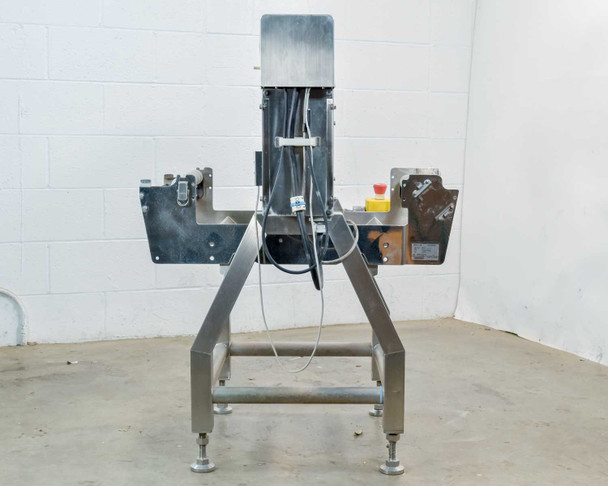

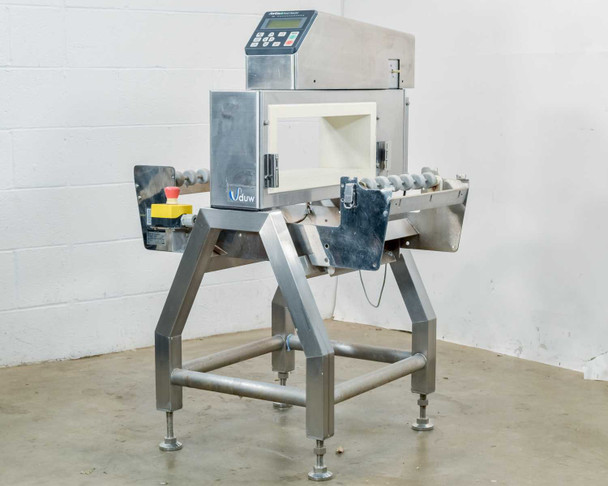

Inline conveyor metal detector from the duw Series KD812X. Used to screen products on moving belts in industrial processing lines.
Specifications & What's Included
- Model: KD8125AW with KD1125AW detection head
- Belt width: 350 mm; pass height: 125 mm; max pass width: 450 mm
- Display: STN LCD with flat panel key operation
- Power: 100–120V AC or 200–240V AC, 50/60 Hz, single phase, 200 VA
- Operating environment: 0–40°C, 30–85% humidity, no condensation
- Housing: Stainless steel SUS304; IP30 protection rating
- Manufactured Japan, 2014; CE and FCC Part 15 certified
Applications
Metal detectors of this type are used in food processing, pharmaceutical manufacturing, and general industrial production to detect ferrous and non-ferrous metal contamination in packaged goods and bulk materials moving through conveyor systems.
Condition: For Parts or Not Working

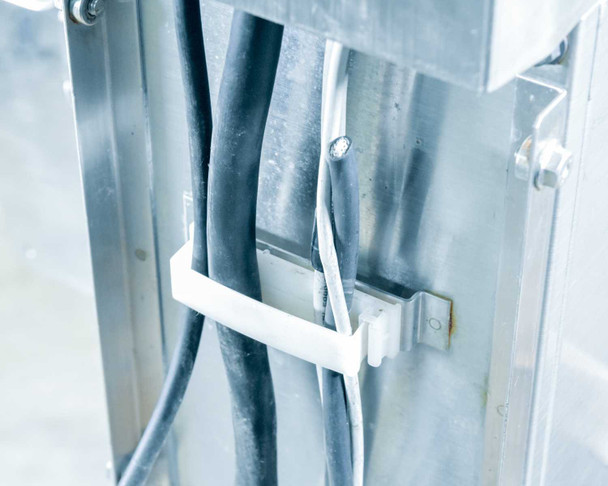

This Anritsu KD8125AW Metal Detector with KD1125AW detection head is being sold AS-IS for parts or repair. A technician evaluated the unit and identified the following documented faults: the machine randomly rejects good product, and failed to reject metal test strips during testing — indicating a detection system malfunction. The white plastic liner around the inside of the detection tunnel is cracked, which may indicate damage to the underlying metal-detecting coils. Additionally, the power cord has been cut and will need to be replaced before the unit can be powered. The stainless steel frame and exterior panels appear intact with light surface wear consistent with production use. Because of the documented detection and tunnel liner issues, this unit is not suitable for production use without repair or parts evaluation. Please view our photo set and contact us if you have any questions.
This Anritsu KD8125AW Metal Detector with KD1125AW detection head is being sold AS-IS for parts or repair. A technician evaluated the unit and identified the following documented faults: the machine randomly rejects good product, and failed to reject metal test strips during testing — indicating a detection system malfunction. The white plastic liner around the inside of the detection tunnel is cracked, which may indicate damage to the underlying metal-detecting coils. Additionally, the power cord has been cut and will need to be replaced before the unit can be powered. The stainless steel frame and exterior panels appear intact with light surface wear consistent with production use. Because of the documented detection and tunnel liner issues, this unit is not suitable for production use without repair or parts evaluation. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Anritsu |
Model: |
KD8125AW |
Secondary Model: |
KD1125AW |
MPN: |
KD8125AW |
SKU: |
52821 |
Type: |
Inline Conveyor Metal Detector |
Series: |
duw Series KD812X |

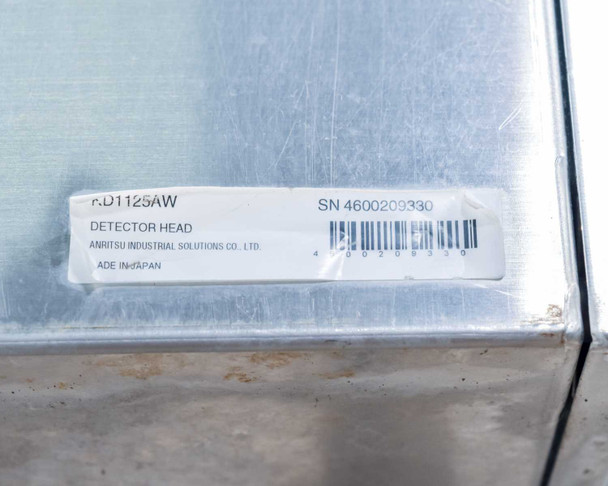

Detection Head Model: |
KD1125AW |
Belt Width: |
350 mm |
Pass Height: |
125 mm |
Max. Pass Width: |
450 mm |
Display: |
STN LCD |
Operation Method: |
Flat panel key |
Power Requirements: |
100-120V AC +10/-15% or 200-240V AC +10/-15%, 50/60Hz, single phase, 200VA |
Environmental Conditions: |
0 to 40°C, humidity 30-85%, no condensation |
Protection Class: |
IP30 (indicator); IP30 (detection head) |
External Finish: |
Stainless steel (SUS304) |
Year of Construction: |
2014 |
Country/Region of Manufacture: |
Japan |
Condition: |
As-Is / For Parts or Not Working |

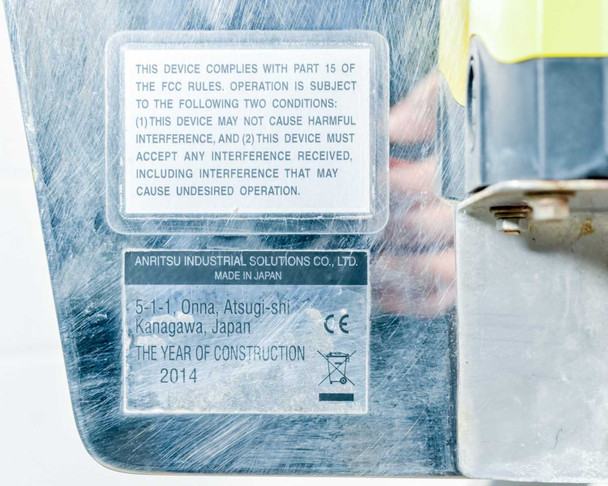

Certifications: |
CE, FCC Part 15 |
Application: |
Food processing, pharmaceutical, manufacturing |
Seller Notes: |
Sold AS-IS. Power cord cut. Randomly rejects good product, fails metal test strips. Tunnel liner cracked. |
Condition Notes: |
This Anritsu KD8125AW Metal Detector with KD1125AW detection head is being sold AS-IS for parts or repair. A technician evaluated the unit and identified the following documented faults: the machine randomly rejects good product, and failed to |
