Description

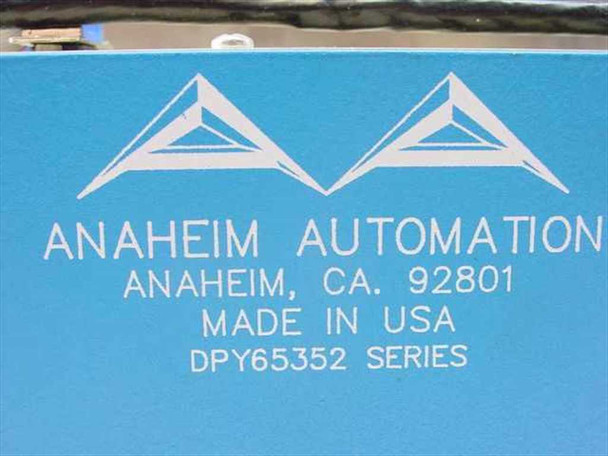

Anaheim Automation DPY65352 Programmable Driver Pack Stepper Motor Driver
Programmable stepper motor driver pack for controlling indexing and motion applications. Includes MC2205 I/O connector and 13-pin motor connector for direct motor interface.
Specifications & What's Included
- Model: DPY65352 (DPY Series)

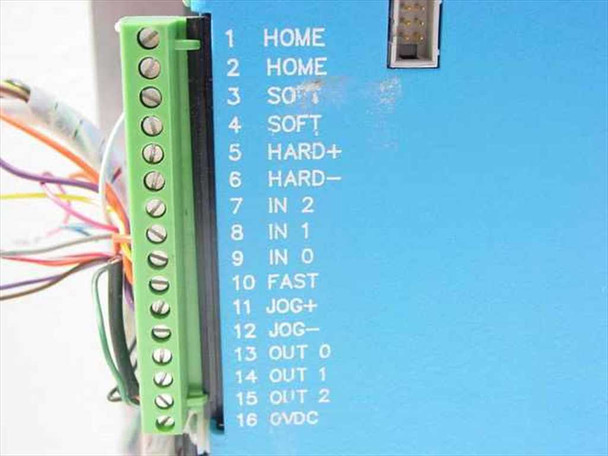

- I/O Connector: MC2205 (P1) with 16 pins including HOME, SOFT, HARD limit inputs, analog inputs 0-2, FAST, JOG, and outputs 0-2

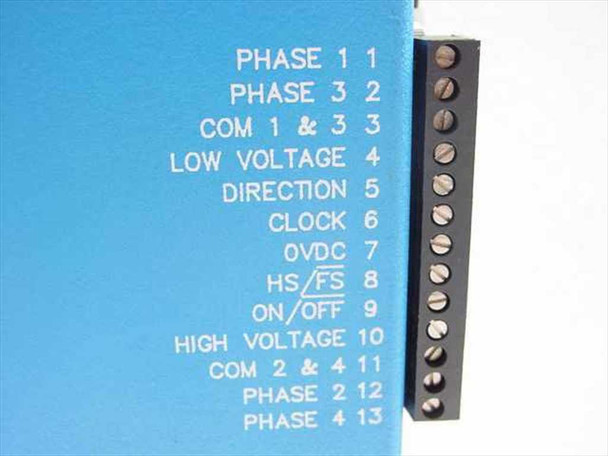

- Motor Connector: 13-pin with PHASE 1-4, COM lines, voltage selection, direction, clock, and control signals

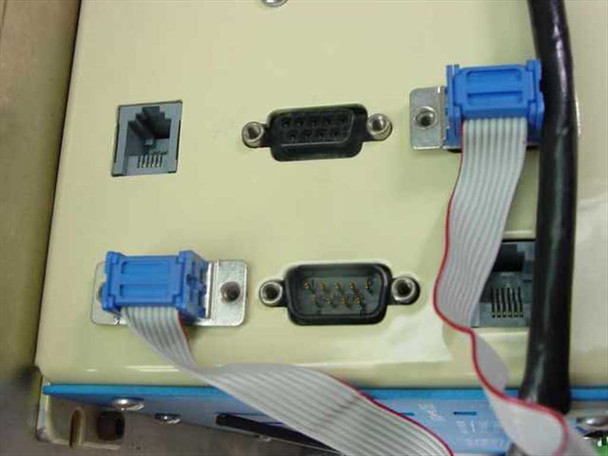

- Interface: DB9 (x2), RJ connector, ribbon cable headers

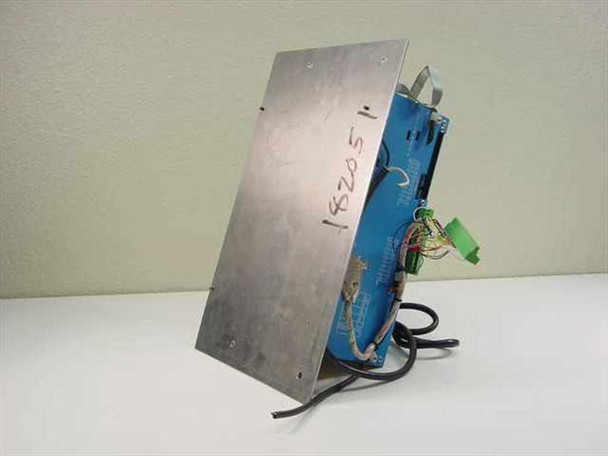

- Enclosure: Panel/DIN-mount blue steel housing, United States manufacture
- Includes: Attached I/O wiring harness with green terminal connectors and ribbon cables
Applications
Used in automation systems requiring programmed stepper motor control and position indexing. Compatible with Anaheim Automation stepper motors and DPY series systems. Typical applications include manufacturing automation, CNC equipment, positioning systems, and industrial motion control where step-and-direction motor operation is required.
Condition: Used

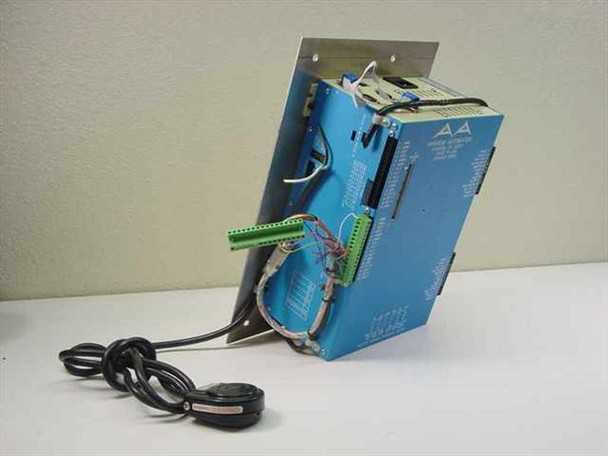

This Anaheim Automation DPY65352 Programmable Driver Pack stepper motor driver has been inspected and is in good used condition. The blue steel housing is intact with normal wear. The attached I/O wiring harness with green screw terminal connectors is present and connected, and the ribbon cable assemblies on the rear DB9 ports are in place. No obvious physical damage is noted. Please view our photo set and contact us if you have any questions.
This Anaheim Automation DPY65352 Programmable Driver Pack stepper motor driver has been inspected and is in good used condition. The blue steel housing is intact with normal wear. The attached I/O wiring harness with green screw terminal connectors is present and connected, and the ribbon cable assemblies on the rear DB9 ports are in place. No obvious physical damage is noted. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Anaheim Automation |
Model: |
DPY65352 |
MPN: |
DPY65352 |
Type: |
Programmable Stepper Motor Driver Pack |
SKU: |
26711 |
Series: |
DPY65352 Series |
I/O Connector: |
MC2205 I/O (P1) |
I/O Points: |
Pins 1-16: HOME x2, SOFT x2, HARD+/-, IN 0-2, FAST, JOG+/-, OUT 0-2, 0VDC |
Motor Connector Pins: |
13-pin: PHASE 1-4, COM 1&3, COM 2&4, LOW/HIGH VOLTAGE, DIRECTION, CLOCK, 0VDC, HS/FS, ON/OFF |
Interface / Connectivity: |
DB9 (x2), RJ connector, ribbon cable headers |
Form Factor: |
Panel/DIN-mount enclosure, blue steel housing |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes attached I/O wiring harness with green terminal connectors and ribbon cables |
Compatible With: |
Anaheim Automation stepper motors, DPY series systems |
Application: |
Stepper motor indexing and motion control automation |
Condition Notes: |
This Anaheim Automation DPY65352 Programmable Driver Pack stepper motor driver has been inspected and is in good used condition. Housing intact, wiring harness and ribbon cables present. Please contact us with any questions. |
