Description
Anaheim Automation DPW65351XDB9 Programmable Driver Pack Motor Terminal RS-232
Programmable stepper motor driver pack with RS-232/RS-422 serial interface. Designed for standalone benchtop operation and motor control applications requiring configurable communication and motor parameters.
Specifications & What's Included
- Interface: RS-232 / RS-422 (selectable)
- Baud Rate: 75, 150, 300, 600, 1200, 2400, 4800, 9600
- Encoder Input: Yes — front panel connector
- Axis Select: DIP switch selectable
- Kick Current Adjust: 1.0A – 6.0A (rotary dial)
- I/O Port: Dedicated header and RJ handheld terminal port
- Connectors: DB9, RJ, ribbon cable headers, terminal block
- Manufactured: September 1993, USA
- Includes: Attached ribbon cable harness
Applications
Used for controlling stepper motors in industrial automation, telecom equipment, and test instrumentation. Common in legacy systems requiring serial-based motor control with programmable parameters. Compatible with systems using standard RS-232 serial communication protocols.
Condition: Used

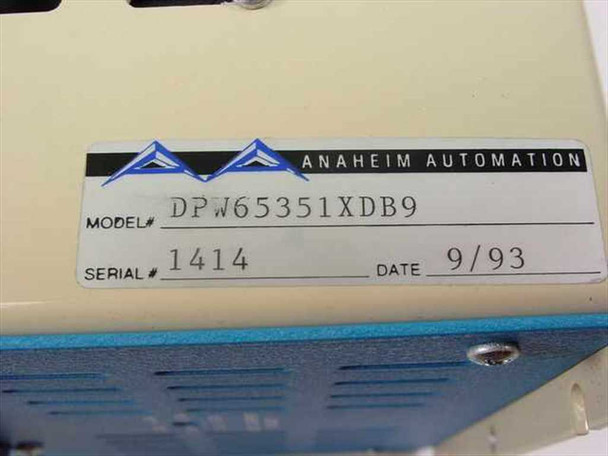

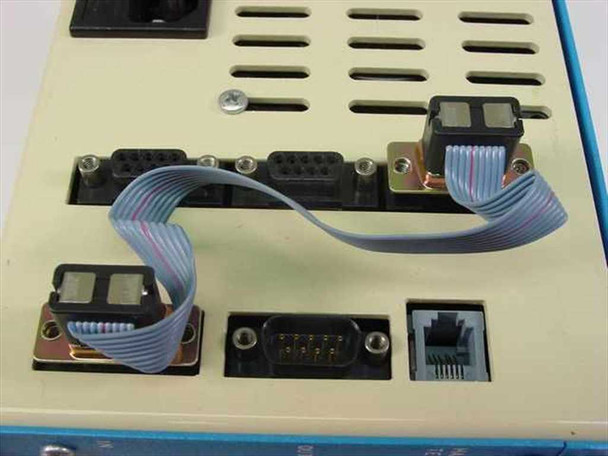

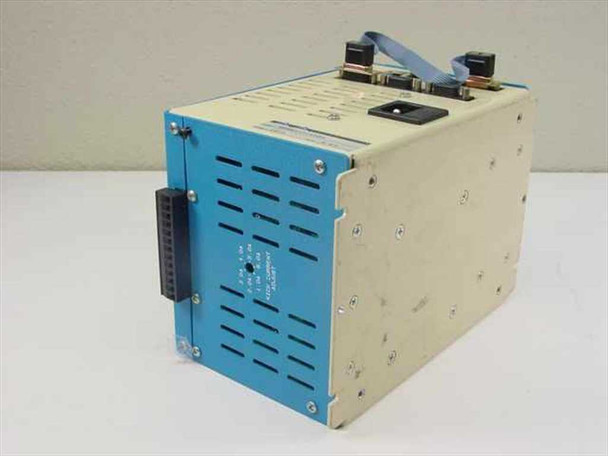

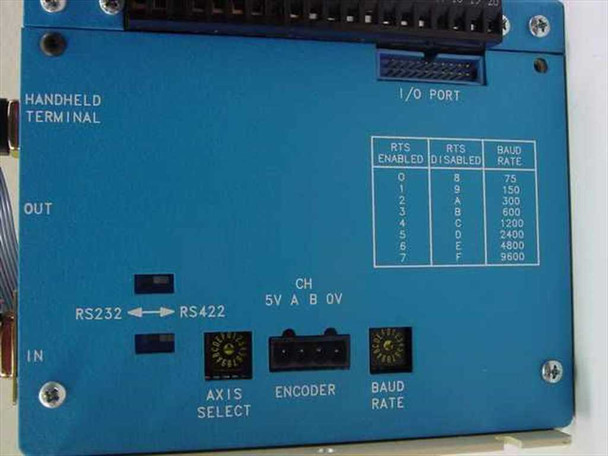

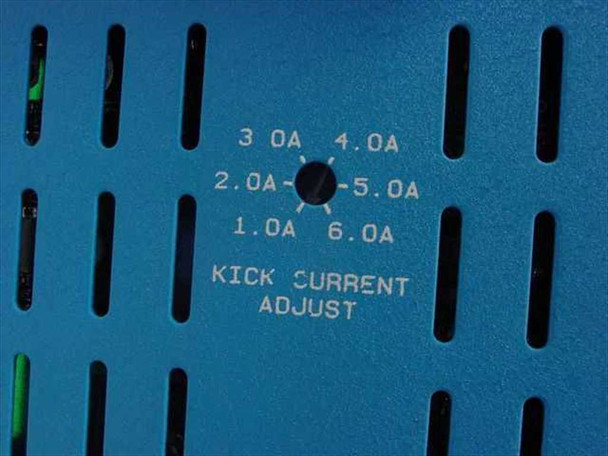

This Anaheim Automation DPW65351XDB9 Programmable Driver Pack Motor Terminal has been inspected and is in good condition. The blue enclosure shows normal surface wear consistent with age and prior use — the unit dates from September 1993 per the label. The front panel connectors, terminal block, RS-232/RS-422 select switch, Axis Select DIP switches, Baud Rate DIP switches, Encoder connector, and Handheld Terminal port all appear intact and undamaged. The Kick Current Adjust rotary dial on the side panel is present and moves freely. Ribbon cable harness is attached. No significant damage is visible in the photos. Please view our photo set and contact us if you have any questions.
This Anaheim Automation DPW65351XDB9 Programmable Driver Pack Motor Terminal has been inspected and is in good condition. The blue enclosure shows normal surface wear consistent with age and prior use — the unit dates from September 1993 per the label. The front panel connectors, terminal block, RS-232/RS-422 select switch, Axis Select DIP switches, Baud Rate DIP switches, Encoder connector, and Handheld Terminal port all appear intact and undamaged. The Kick Current Adjust rotary dial on the side panel is present and moves freely. Ribbon cable harness is attached. No significant damage is visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Anaheim Automation |
Model: |
DPW65351XDB9 |
MPN: |
DPW65351XDB9 |
Type: |
Programmable Stepper Motor Driver Pack |
SKU: |
26714 |
Condition: |
Used – Inspected and in Good Condition |
Interface Type: |
RS-232 / RS-422 (selectable) |
Encoder Input: |
Yes — encoder connector on front panel |
Axis Select: |
Yes — DIP switch selectable |
Baud Rate: |
Selectable: 75, 150, 300, 600, 1200, 2400, 4800, 9600 |
Kick Current Adjust: |
1.0A – 6.0A (rotary dial) |
I/O Port: |
Yes — dedicated I/O port header |
Handheld Terminal Port: |
Yes — RJ connector on front panel |
Connectors: |
DB9, RJ, ribbon cable headers, terminal block |
Form Factor: |
Benchtop / Standalone Enclosure |
Country/Region of Manufacture: |
United States |
Manufacture Date: |
September 1993 |
Seller Notes: |
Unit includes attached ribbon cable harness. No external power cord included. |
Condition Notes: |
Anaheim Automation DPW65351XDB9 Programmable Driver Pack inspected and in good condition. Enclosure shows normal wear for a 1993-dated unit. Connectors, switches, and ports appear intact. Ribbon cable harness attached. |
