Amphenol Helios H4 HBTGBNANCNAA Thin Film PV Junction Box 14AWG MC4 36" Cable

(No reviews yet) Write a Review
SKU:
52301
MPN:
Helios H4
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

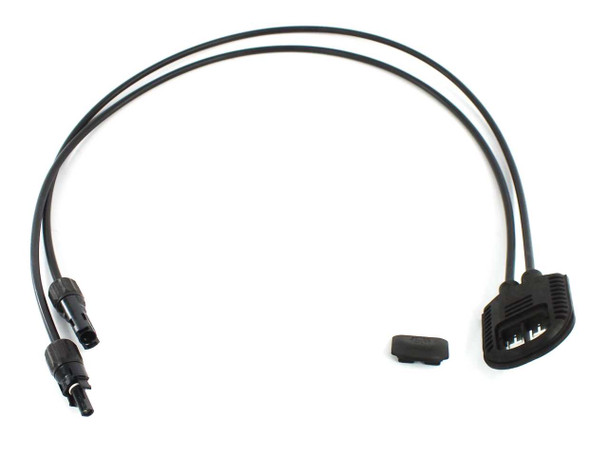

  • Amphenol Helios H4 HBTGBNANCNAA thin-film PV junction box assembly with 36-inch 14AWG dual cable leads and MC4-compatible male and female connectors, dust cap shown separately
  • Close-up of Amphenol Helios H4 MC4-compatible male and female PV connector pair on 14AWG cable leads
  • Front view of Amphenol Helios H4 thin-film PV junction box showing two solder contact terminals and Amphenol logo on dust cap
  • Rear view of Amphenol Helios H4 PV junction box showing two solder contact terminals and dust cap

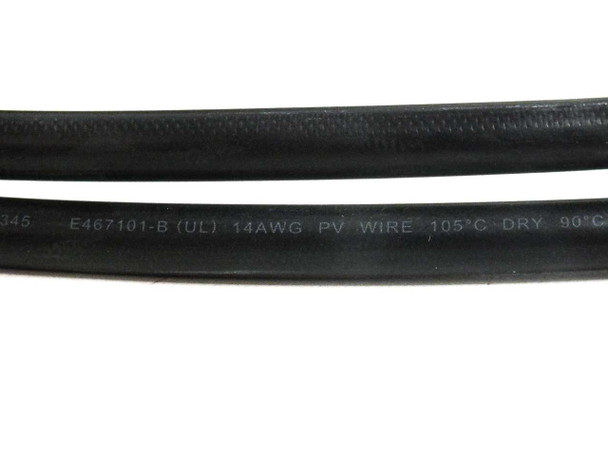

  • Close-up of 14AWG PV wire jacket printed marking: E467101-B (UL) 14AWG PV WIRE 105C DRY 90C

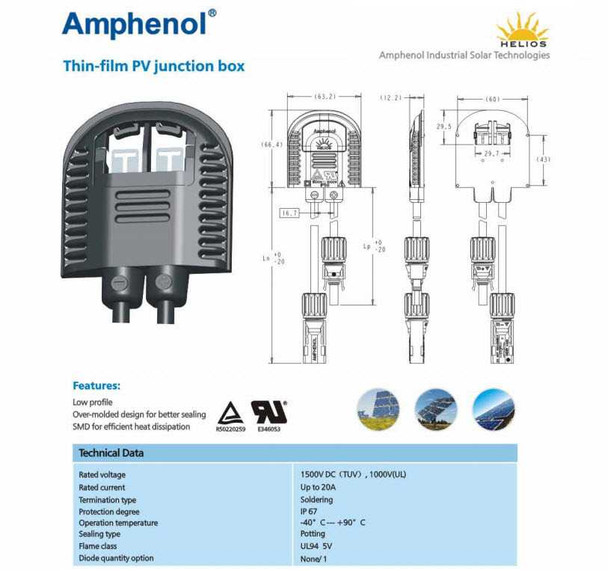

  • Amphenol Helios thin-film PV junction box product datasheet showing technical specifications: 1500V DC, 20A, IP67, -40C to +90C, and dimensional drawing

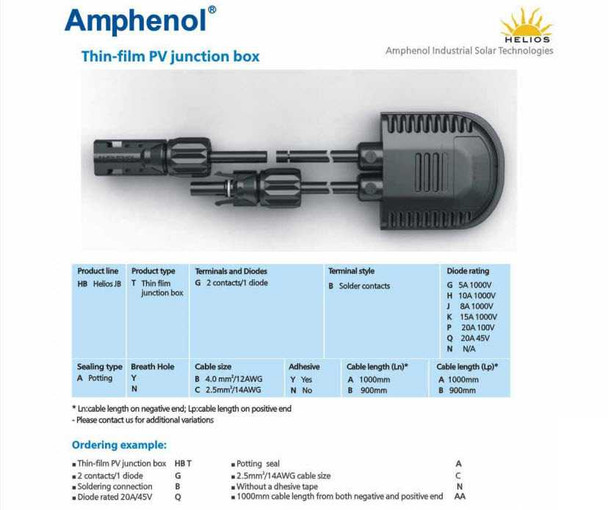

  • Amphenol Helios thin-film PV junction box ordering guide and part number decoder chart showing HBTGBNANCNAA configuration breakdown
$13.20
Was: $35.00
Current Stock: 10

Sold Out

Description

Amphenol Helios H4 HBTGBNANCNAA Thin Film PV Junction Box 14AWG MC4 36" Cable

PV junction box for thin-film and rigid glass solar panel installations. Connects solar panel outputs to system wiring using MC4 connectors with a 36-inch 14AWG cable pair.

Specifications & What's Included

  • Model: Amphenol Helios H4 (MPN: HBTGBNANCNAA)
  • Rated Voltage: 1500V DC (TÜV), 1000V DC (UL)
  • Rated Current: Up to 20A
  • Cable: 14 AWG (2.5mm²), 36" length, UL-rated PV wire 105°C dry / 90°C wet
  • Connectors: MC4-compatible male and female pair
  • Protection: IP67 sealing, potted contacts, UL94 5V flame class
  • Operating Range: -40°C to +90°C
  • Includes: J-box body, connectors, dust cap, and cable leads

Applications

Junction boxes are standard termination points in residential and small commercial solar installations. This model supports both thin-film flexible panels and traditional rigid crystalline glass panels. Rated at 1500V DC for TÜV and 1000V DC for UL standards, it handles typical utility-scale or distributed PV systems. The IP67 rating and potting provide weather resistance for rooftop or ground-mounted arrays in outdoor environments.

Condition: New
This Amphenol Helios H4 HBTGBNANCNAA Thin-Film PV Junction Box is new and unused in its original condition. The connectors, junction box body, dust cap, and 14AWG cable leads are all present and undamaged. This is genuine Amphenol Helios product — not an aftermarket substitute. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Amphenol
Model:
Helios H4
MPN:
HBTGBNANCNAA
Type:
Thin-Film PV Junction Box with MC4 Connectors
SKU:
52301
Condition:
New
Seller Notes:
New original Amphenol Helios H4 J-box with 36" 14AWG MC4-compatible cable pair
Country/Region of Manufacture:
China
Compatible With:
Thin-film flexible solar panels, rigid glass solar panels
Compatible Connector:
MC4 (MC4-compatible)
Cable Gauge:
14 AWG (2.5mm²)
Cable Length:
1000mm (39.37" / approx. 36")
Connector Style:
Male and Female pair
Rated Voltage:
1500V DC (TÜV), 1000V DC (UL)
Rated Current:
Up to 20A
Protection Rating:
IP67
Operating Temperature:
-40°C to +90°C
Termination Type:
Soldering (solder contacts)
Sealing Type:
Potting
Flame Class:
UL94 5V
Diode Quantity:
None (1 contact / no diode — HBTGBNANCNAA config)
Wire Rating:
E467101-B (UL) 14AWG PV Wire, 105°C Dry, 90°C
Product Line:
Amphenol Helios JB — Thin Film PV Junction Box
Application:
Solar panel photovoltaic (PV) systems
Form Factor:
Low-profile over-molded junction box
Condition Notes:
New, unused Amphenol Helios H4 HBTGBNANCNAA PV junction box. Genuine Amphenol stock. Includes J-box body, MC4-compatible male/female connectors, dust cap, and 36" 14AWG PV cable leads.
